Quick Details
-
Brand Name:
-
BD
-
Model Number:
-
EV2
-
Product name:
-
Static Deformation modulus tester
-
Test depth:
-
0~500mm
-
Screen Size:
-
3 inches
-
Max output power:
-
100KN
-
Storage amount:
-
400 groups testing curve
-
Test Value:
-
Ev1/Ev2
-
Plate diameter:
-
300mm
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BD
-
Model Number:
-
EV2
-
Product name:
-
Static Deformation modulus tester
-
Test depth:
-
0~500mm
-
Screen Size:
-
3 inches
-
Max output power:
-
100KN
-
Storage amount:
-
400 groups testing curve
-
Test Value:
-
Ev1/Ev2
-
Plate diameter:
-
300mm
Product Description
Produict Details
Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate. .
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate. .
|
Product
|

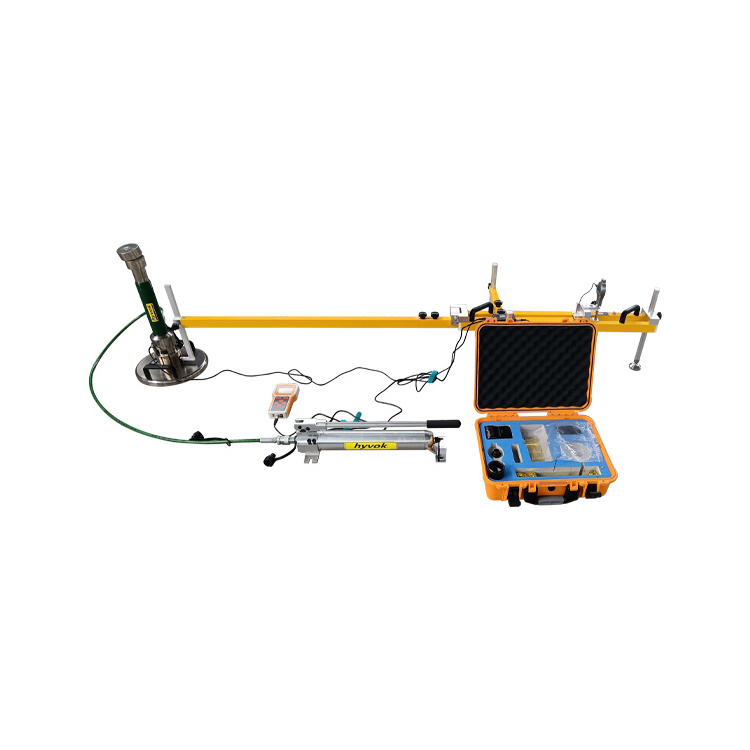

Static Deformation Testing Plate Bearing Test Set
|
|
|
|
Application
|
Effective depth
|
0~ 500mm
|
|
|
|
Working ambient
|
Working ambient -10℃~40℃ Humidity <90%HR
|
|
|
Electeic sedimentation meter |
Size |
Screen size:3inch
Overall size:100×205×40mm Net weight:0.8kg |
|
|
|
Storage amount
|
400 groups testing curve
|
|
|
|
Powder supply
|
Lithium battery, over 18hrs continuous work time
|
|
|
|
Display method
|
Chinese/English
|
|
|
Printer
|
Connection method
|
Wireless Bluetooth printer
|
|
|
Transducer |
Pressure range
|
100kN
|
|
|
|
Displacement range
|
25mm
|
|
|
|
Displacement resolution
|
0.01mm
|
|
|
Measure device |
Bearing plate
|
Diameter:300mm
Thickness:25mm Weight:17.5kg |
|
|
|
Loading device
|
Hydraulic pump:100kN
high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm |
|
|
|
Sedimentation measure device
|
Three point frame
(with flexible and rotary lever arm, adjustable base) Dimension:2320*570*420mm Weight:12.5kg |
|
