Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Polyimide tape
-
Product name:
-
Kaptone Polyimide Tape
-
Color:
-
Amber
-
Thickness:
-
0.06mm,0.08mm etc
-
Width:
-
1mm---500mm
-

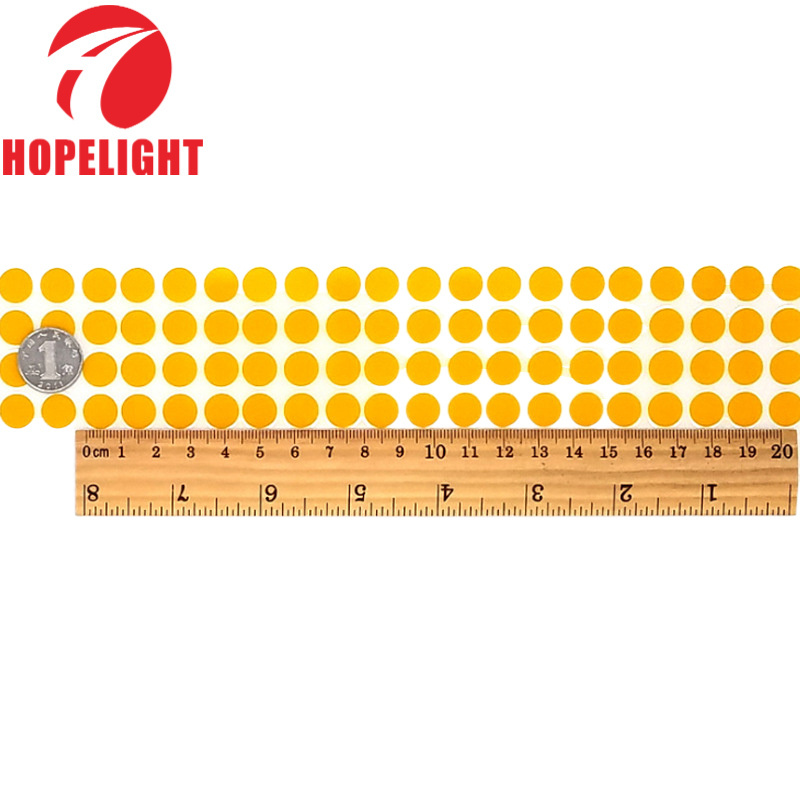

Die cutting:
-
Sheets or other any shapes
Quick Details
-
Adhesive:
-
Silicone
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Polyimide tape
-
Product name:
-
Kaptone Polyimide Tape
-
Color:
-
Amber
-
Thickness:
-
0.06mm,0.08mm etc
-
Width:
-
1mm---500mm
-
Die cutting:
-
Sheets or other any shapes
What is polyimide tape and main feature?
Polyimide tape is polyimide film as the baking and coated with imported pressure-sensitive silicone adhesive.It can withstand high temperature up to 260 ° C in half an hour,Electrical insulation, radiation resistance, solubility resistance, heat resistance, etc
Can I Have Details of this Product?
Yes, Common Data are in the Following Table.
|
Backing
|
Polyimide film
|
|
|
|
|
|
|
|
|||||||
|
Coefficient of the tape
|
Silicone
|
|
|
|
|
|
|
|
|||||||
|
Color
|
amber/black
|
|
|
|
|
|
|
|
|||||||
|
Film thickness(mm)
|
0.025
|
0.025
|
0.05
|
0.05
|
0.075
|
0.125
|
0.125
|
0.15
|
|||||||
|
Total thickness(mm)
|
0.05
|
0.06
|
0.08
|
0.1
|
0.12
|
0.15
|
0.18
|
0.2
|
|||||||
|
Fluorine release liner thickness(mm)
|
0.05
|
0.05
|
0.075
|
0.075
|
0.075
|
0.075
|
0.075
|
0.075
|
|||||||
|
Length(m)
|
33m/max 750m
|
|
|
|
|
|
|
|
|||||||
|
Tensile Strength(KG/25mm)
|
20
|
14
|
45
|
45
|
45
|
45
|
45
|
45
|
|||||||
|
Elongation %
|
60
|
65
|
65
|
65
|
65
|
65
|
65
|
65
|
|||||||
|
Breakdown strength
|
≥150N/25mm
|
|
|
|
|
|
|
|
|||||||
|
Withstand VoltageKV
|
6
|
6
|
10
|
10
|
10
|
10
|
10
|
15
|
|||||||
|
Adhesion (N/25mm )
|
5
|
6
|
6.5
|
6.5
|
5.5
|
5.5
|
6
|
6
|
|||||||
|
Temperature Resistance℃
|
280℃ 30mins
|
|
|
|
|
|
|
|
|||||||
Product category
More For You
Applications
Packing & Delivery
What is Haopute Packaging & Shipping ?
The packing is very important when transporting .
Inner packing: Each roll Separated by Liner to avoid tape sticky together .
Then With PE bag / Bubble bag
Shipping by: Air Freight, Sea Freight, Express
Shipping time:1.Courier shipping, around 3-4 working days
2.Air shipping: around 5 working days
3.Sea: around 4 weeks to arrive(depending on destination port)
Loading Port: Shekou or Yantian Port, China
Sample Delivery: 3-5 working days. (FREE SAMPLE)
