Quick Details
-
Color:
-
Black, red and grey or custom-made
-
Structure:
-
Axial Piston Motor
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Hydraulic Motors
-
Product name:
-
Small high speed torque hydraulic radial piston motors
-
Application:
-
Agriculture, Construction machinery
-
Color:
-
Black, red and grey or custom-made
-
Structure:
-
Axial Piston Motor
-
Warranty:
-
1 Year

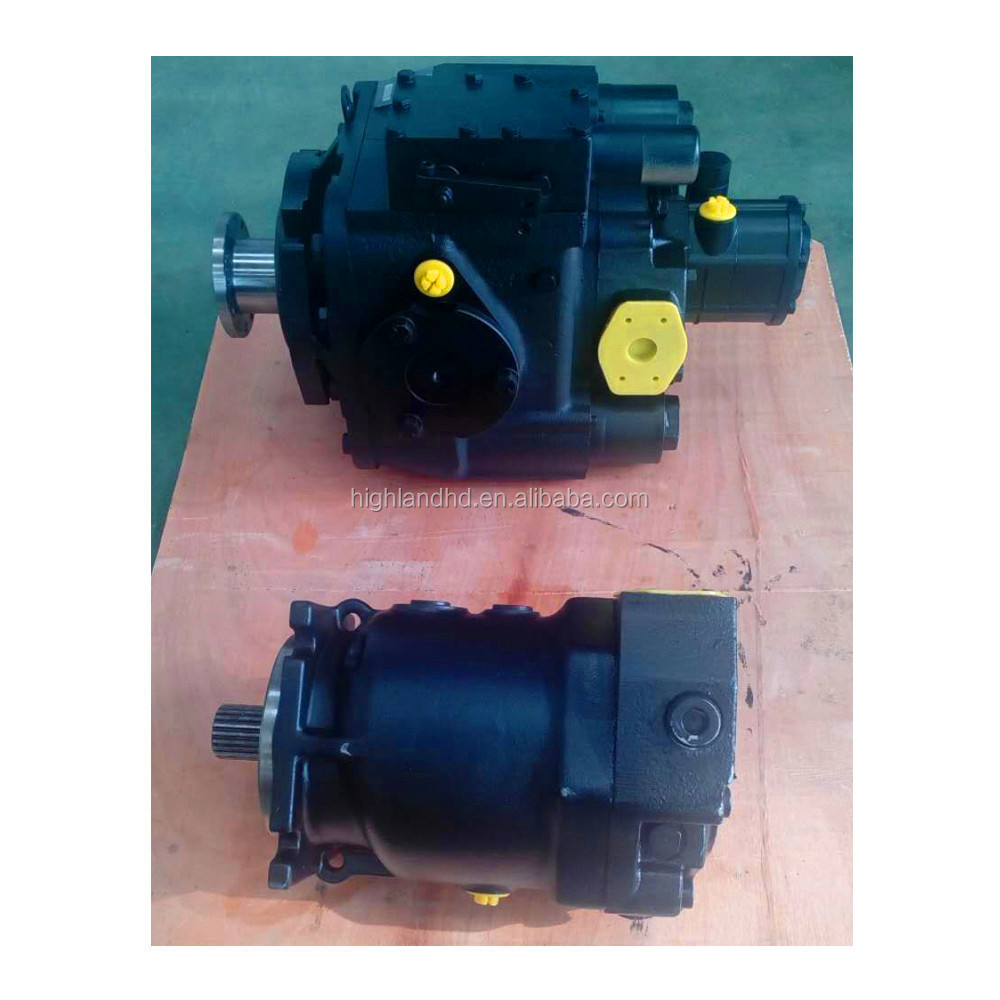

Small high speed torque hydraulic radial piston motors .
Axial piston fixed displacement motors are of swash plate construction with preset displacement, and are intended for closed circuit, too.
The output speed is proportional to the flow rate of the input fluid. The output torque is proportional to the differential between high and low pressure sides of the fluid circuit.
The direction of motor shaft rotation depends upon which port of the fluid enters to the motor.
POWER SYSTEM FOR HEAVY DUTY APPLICATIONS
Long version hydraulic motor..
We have long version hydraulic motor from MF20 - MF24 models.
Short version hydraulic motor.
Our short version hydraulic motor is from MF21 - MF24 models.
|
|
|
MF20
|
MF21
|
MF22
|
MF23
|
MF24
|
||||
|
Max. displacement
|
ML/r
|
33.3
|
51.6
|
69.8
|
89
|
113
|
||||
|
Max. pressure
|
Mpa
|
35
|
|
|
|
|
||||
|
Rated pressure
|
Mpa
|
21
|
|
|
|
|
||||
|
Max. case pressure
|
Mpa
|
Constant 0.25, Peak value 0.5
|
|
|
|
|
||||
|
Output torque ate 35 Mpa
|
Nm
|
176
|
180.6
|
369
|
471
|
624
|
||||
|
Max. speed
|
rpm
|
3590
|
3500
|
2810
|
2590
|
2500
|
||||
|
Min. speed
|
rpm
|
500
|
|
|
|
|
||||
|
Rated speed
|
rpm
|
1500
|
|
|
|
|
||||
Packing.
Inner Anti-rust treatment.
Outer: Plywood case.
One plywood case pack one set.
Easilly carry, easily store and easily resell.
Delivery.
1 set: kindly advise by air.
More than 1 set: kindly advise by sea.
Because its heavy weight lead to expensive air freight.
We are factory.
We are a factory in Shandong province, China, so that we can provide favourable price and best quality.
Rich experience.
We have more than 20 years experience in hydraulic industry, have rich experience and mature technology.
|
