NB-IOT Module Wireless Remote Monitoring and Control System Controller Automatic Data Collection and Wireless Data Transmission

Can be customized according to customer's requirements

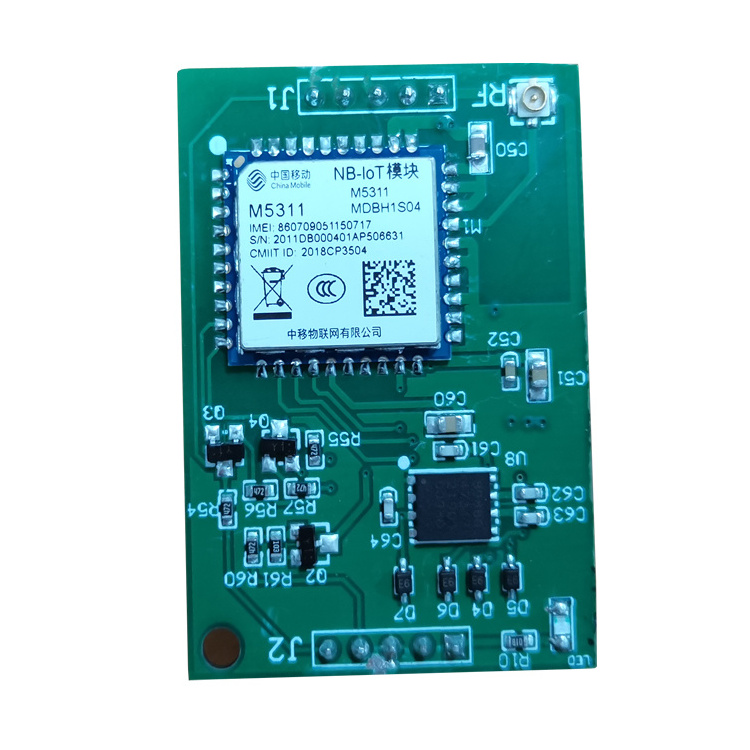

NB-IOT Module used for Wireless Remote Monitoring and Control System

Features:

NB-IOT module: M5311  China Mobile

Distance between PIN: 2.54mm
Definition of feets: VCC GND TX RX PWRKEY

Size: 45mm * 33mm

Functions:

Remark:
The NB-IOT module can be fixed on the control master board through Pin headers, and can also be connected to the master board through a cable.

Main Applications

This system is especially suitable for unattended environments and application scenarios that require real-time grasp of equipment operation or conditions.
E.g.:
Scenarios for automatic control of on-site motors
For example, the temperature monitoring and control of the cold storage freezer of transport vehicles; the temperature monitoring and control of the freezer of the supermarket freezer; the temperature monitoring and control of the freezer of medicines; and so on.
Scenarios for monitoring and controlling remote environments
For example, remote monitoring and control of air quality and environmental status; monitoring and automatic control of livestock breeding environmental status; and so on.
Scenarios that require real-time monitoring of operating data of remote devices
For example, real-time data collection and operation status monitoring of remote power equipment, remote security equipment, remote automatic equipment, remote water and electricity control facilities, etc.
