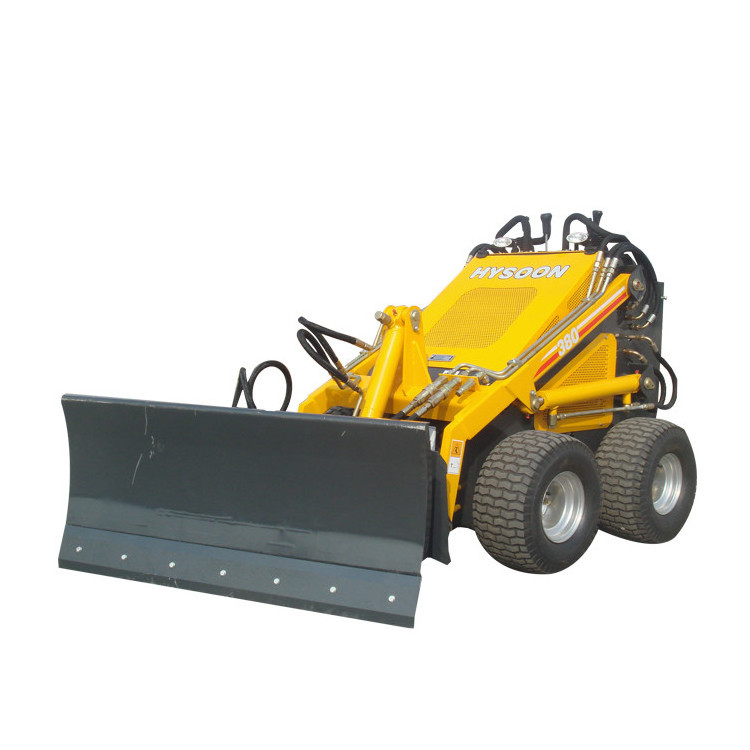

Mini skid snow plow blade garden tractor

Mini skid snow plow blade garden tractor

FOB Reference Price: Get Latest Price

≥1 Sets

US $6980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 2206mm*1160mm*1233mm

Machine Weight:: 830kg

Bucket capacity:: 0.15m3

After-sales Service Provided:: Engineers available to service machinery overseas

snow blade model:: HY380

Engine power:: 23HP

Engine:: Briggs & Stratton or Kohler

Operation Weight:: 890kg

Operating Load:: 200kg

Attachments:: digger, backhoe, fork,grapple,trencher,lown mower,auger drill .etc

Color:: Yellow or Customize

Engine Warranty:: 3 years

After Warranty Service:: Video technical support, Spare parts

Local Service Location:: Australia

Certification:: CE,Gost

Quick Details

Engine Brand:: Briggs&Stratton

Power:: 17.15kw

Brand Name:: HYSOON

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 2206mm*1160mm*1233mm

Machine Weight:: 830kg

Bucket capacity:: 0.15m3

After-sales Service Provided:: Engineers available to service machinery overseas

snow blade model:: HY380

Engine power:: 23HP

Engine:: Briggs & Stratton or Kohler

Operation Weight:: 890kg

Operating Load:: 200kg

Attachments:: digger, backhoe, fork,grapple,trencher,lown mower,auger drill .etc

Color:: Yellow or Customize

Engine Warranty:: 3 years

After Warranty Service:: Video technical support, Spare parts

Local Service Location:: Australia

Certification:: CE,Gost

Mini skid snow plow blade garden tractor

Product Description

Copy the linkage of Youtube to see working video of snow blower: https://youtu.be/rgbvTcN8JBY

HY380 mini skid steer loader, Wheel type and track type for optional

Parameters

1)Size
Dimension(LWH)	2206 mm * 1160 mm * 1233 mm
Length	2206mm
Width	1160mm
Height	1233mm
Bucket W idth (K)	115 0 mm
Max Working Height	2143 mm
Max Dumping Height	1488mm
Max Dumping Distance	348mm
Total Length without Bucket	1752mm
Turn Radius forward Turning	1307mm
2)Engine
Rated P ower (KW)	17.1KW
Rotating S peed	3600rpm
Noise(Dd)	≤95
3)Hydraulic S ystem
Pressure	17Mpa
Operating L oad	200kg
Bucket C apacity	0.15m³
Max L ifting F orce	375kg
Travel S peed	0-5.5km/h
W eight	890kg

4) Configuration
Engine	23hp American Briggs& Stratton gasoline engine, 3 year international warranty service.
Parts	Imported Italy hydrocontrol valves;
Tires	With engineering tires. Optional: Solid tires, grass tires and Track(crawler) Type.
Optional Configuration	Italy joystick system(Imported Italy pump and operating handles), three pump & valves for optional; Diesel engine for optional
Operating	With a back pedal plate

Features

Operation:
1) Two handles to achieve operation of working, lifting and dumping.

2) 4 wheels drive, suitable for various environment.

3) Safe pedal, stand operating way.

4) 360° pivot steering. Save space, Flexible and operating easily.

5) Compact design can for any small space working.

6) Quick hitch system makes fastening attachments quickly and eaily.

7) A loader serves several functions. Hy380 can with various attachment for different working need. Quick hitch system, attachments can be changed quickly and easily.
8) Compare with same kind of products, hy380 mini loader is with higher lifting height.
Easy maintenance:
1) Easy to put oil and replace Air filter, filter, spark plug, etc.

2) Back shrouds can be took easily, parts can be checked by opening upper canopy.

HY380 Mini Skid Steer Loader with digger etc various attachments

A loader serves several purposes, with a quick hitch system,the HY380 mini skid steer loader can change various attachments for more functions quickly and eaily. Attachments: backhoe, mini post hole digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trench filler, trencher,grapple,,auger,stonr bucket, auger levers, standard bucket, trailer system, and so on.
