Quick Details
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Type:
-
Swing gate operator, Gate Operators
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xianfeng machinery
-
Model Number:
-
ZK1800
-
Power supply:
-
AC 110V-240V
-
Certificate:
-
CE Approved
-
Rated power:
-
180W
-
Rated force:
-
2500N
-
Gate weight:
-
600kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Type:
-
Swing gate operator, Gate Operators
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xianfeng machinery
-
Model Number:
-
ZK1800
-
Power supply:
-
AC 110V-240V
-
Certificate:
-
CE Approved
-
Rated power:
-
180W
-
Rated force:
-
2500N
-
Gate weight:
-
600kg

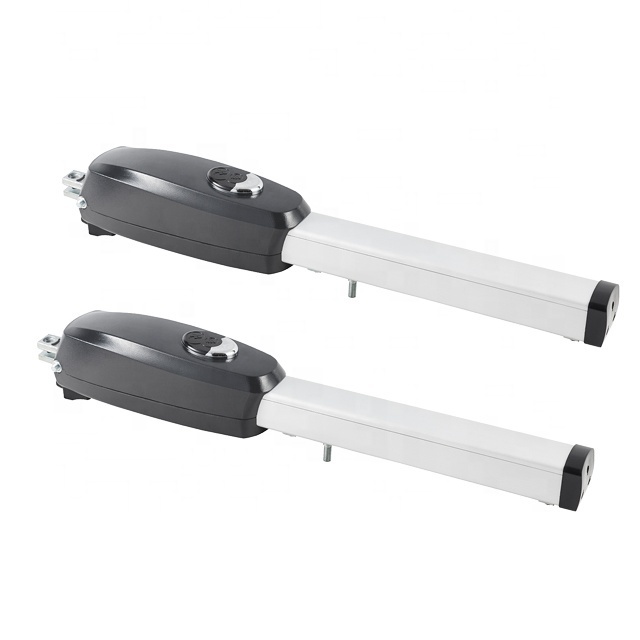

Swing Gate Opener Gate Motor For Electric Gates
The swing gate opener series are used to drive swing gates for industrial, commercial and residential uses. The biggest push power of the device is 1500N, To protect the device, an electric lock is provided to install when the width of gate leaf is more than 1.5 meters. In case of power failure, an emergency release key allows operate gate manually.
the swing gate opener can support the 220 volts and 110 volts power supply. it can use for a pair of gate and alone gate.
We have many models of swing gate openers such as ZK300DC, ZK300DC-1, ZK1800, etc.
F eatures
- Worm screw driving, powerful & smooth.
- Aluminum body, quality painted.
- Water-proof design.
- Simple & safe release by special key.
- Two pieces of blocks are provided to prevent the door over travelling.
- Built–in mechanical limit switch, easy for adjustment.
- Electric lock 12V DC.
- Available for button switch, keypad, photocells and alarm lamp.
- It also can be used as Linear Actuator, max. travel 330mm.
- Comply with industry standard of the ministry of construction of the people 's republic of china ‘Sliding & Swing gate opener’.
Technical specification
|
Type |
ZK1800 |
|
Power supply |
AC220×(1±10%)V 50Hz |
|
Rated power |
180W |
|
Rated force |
2500N |
|
90 ° opening or closing time (one gate leaf) |
22s ~ 27s |
|
Working angle of gate |
90° or 105° |
|
Max. gate section weight |
≤600 kg |
|
Max. gate section width |
≤3 m |
|
Ambient temperature |
-20º C ~ +50 º C |
|
Max. cycles in one hour |
≤15 |
|
Control box |
XF24BW-1 |
Packaging: Neutral carton
Delivery Detail: Delivery time within 15-25working days
Shipping: Send by express, sea or air
1. Small MOQ is required, One set is available for checking our quality first conveniently
2. OEM/ODM is available, we can help to print logo on products.
3. Most advanced machines imported from German and make our products of high precision
4. All kinds of gate operators and road barriers, Widely product range can provide full solution to save your time and cost
5. Strong customization capability, we are very capable to custom produce with your drawings
6. The first manufacture of gate openers in China , We specialize in Automatic gate openers & gate automation for more than 27 years.
7. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
8. Rich experience in selling and installing, also problem solving.
