Quick Details
-
Brand Name:
-
Darsen
-
Model Number:
-
DS-712
-
Product name:
-
notebook shaft torque force tester
-
Test angle:
-
0~180°
-
Test time:
-
0~99999999times
-
Test force:
-
50kgf.cm or customize
-
Working table:
-
suit for 10~13 inch notebook or customize
-
Power supply:
-
220V 50Hz
-
Machine weight:
-
about 185kg
Quick Details
-
Warranty:
-
2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Darsen
-
Model Number:
-
DS-712
-
Product name:
-
notebook shaft torque force tester
-
Test angle:
-
0~180°
-
Test time:
-
0~99999999times
-
Test force:
-
50kgf.cm or customize
-
Working table:
-
suit for 10~13 inch notebook or customize
-
Power supply:
-
220V 50Hz
-
Machine weight:
-
about 185kg
Summary :

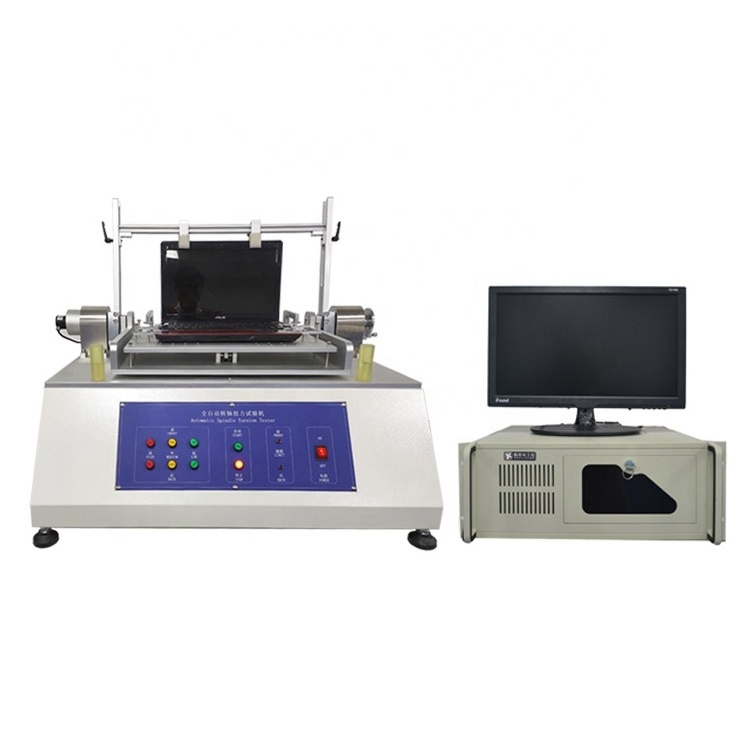

Notebook Rotating Shaft Torque Tester is suitable for testing the torque and service life of screws, torsion springs, hinges, rotating shafts, housings, fasteners, wire harnesses and other products. Through the analysis of industrial computers, it can accurately measure the torque and rotation angle of the object to be measured and the curve corresponding to the torque and speed, and accurately control the rotation angle, rotation speed, target measurement times and pause time of the screw torque test.
Test theory:
The computerized full-automatic rotating shaft torque durability tester can test the decline of rotating shaft torque after the upper cover of notebook is opened and closed for many times. It can measure the rotating shaft torque value each time, record the curve change and draw the torque attenuation life curve. It improves the inconvenience that the rotating shaft must be disassembled before measuring torque. The windows window screen is used for setting, the operation is simple and convenient, and all data can be stored (test conditions, torque angle curve, life curve, inspection report, etc.
Main Features:
1. print and store graphics (torque angle curve, torque attenuation curve and inspection report).
2. test data storage and hard disk (each data can be stored for unlimited times).
3. the test conditions are set by the computer screen (including opening angle, speed, times, pause time, etc.)
4. the header of the inspection report can be modified at any time (both Chinese and English)
5. the inspection report can be transferred to excel for editing
6. record each torque angle curve
7. torque angle curve and torque attenuation curve are displayed at the same time
8. the test position of notebook can be adjusted by itself
9. unilateral force application or bilateral force application can be selected
10. the machine can simulate whether the rotating shaft still has holding force or the plastic body is damaged by the increasing resistance of the rotating shaft after the upper cover of the laptop is opened and closed for many times.
Technical Specifications:
|
Measured maximum load |
50kgf .cm or customized |
|
Minimum torque display |
0.01kgf.cm |
|
Working table size |
600 * 600mm or customize , meet 10~13inch notebook |
|
Test angle range |
0 ~ 180 ° or customized |
|
Test speed range |
0 ~ 20 0 rpm |
|
Test time range |
0 ~ 99999999times |
|
Angular resolution |
0.5 ° |
|
Angle accuracy |
± 2 ° |
|
Cover closing delay range |
1 ~ 1.8s |
|
Flap delay range |
1 ~ 1.8s |
|
Batch setting range |
0~ 32000 times |
|
Batch residence time |
0 ~ 999s |
|
Machine size |
1100*760*550mm |
|
Machine weight |
About 185kg |
|
Power supply |
AC220V 50Hz 10A or customized |
|
Attached accessories |
fixed fixture of rotating shaft base 4pcs |
