Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
35 KG
-
Product name:
-
CO2 Laser marking machine
-
Laser Power:
-
30W,35W,40W,50W,70W,100W
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
10.64um
-
Marking Depth:
-
0.01-0.2mm
-
Working area:
-
110*110mm/ 150*150mm/ 200*200mm/ 300*300mm
-
Minimum line width:
-
0.015mm
-
Power supply:
-
AC220V/50Hz
-
Laser source:
-
DAVI BOST CRD
-
Accuracy:
-
+-0.001mm
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
35 KG
-
Product name:
-
CO2 Laser marking machine
-
Laser Power:
-
30W,35W,40W,50W,70W,100W
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
10.64um
-
Marking Depth:
-
0.01-0.2mm
-
Working area:
-
110*110mm/ 150*150mm/ 200*200mm/ 300*300mm
-
Minimum line width:
-
0.015mm
-
Power supply:
-
AC220V/50Hz
-
Laser source:
-
DAVI BOST CRD
-
Accuracy:
-
+-0.001mm
Product Description
co2 marking laser co2 galvo laser marking cutting machine portable co2 laser marking machine
Work area, we have different field lenses for choice, 70*70MM, 110*110MM, 150*150MM, 175*175MM, 200*200MM and 300*300MM etc. The smaller the field lens, the stronger the beam focusing energy; the smaller the spot diameter, the finer the marking effect; the faster the marking speed, the shorter the marking time.
When the work area is over 150*150mm ,we would like to recommend the latest CO2 laser engraver with 7X 8X beam expander + 20mm diameter galvo head 175*175mm or 300*300mm field lens, mainly used for large format fine and fast marking, below are the machine and samples for your reference.
Machine main parts:
* Laser Source: / Bost/CRD/Davi brand for choice
* Control Card: Genuine EZCAD Board.
* Laser Power: 20W/30W/60W/100W
* Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm or more.
* Galvo Head: 2D SG2206 or 3D Dynamic focus scanning head for choice
* Column Stand: Manual / Auto Focus / Motorized Z axis. size 50cm / 68cm / 80cm or more.
* More optional Parts: Cup Rotary / Electric XY table /Metal Plate Fixture
* Laser Source: / Bost/CRD/Davi brand for choice
* Control Card: Genuine EZCAD Board.
* Laser Power: 20W/30W/60W/100W
* Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm or more.
* Galvo Head: 2D SG2206 or 3D Dynamic focus scanning head for choice
* Column Stand: Manual / Auto Focus / Motorized Z axis. size 50cm / 68cm / 80cm or more.
* More optional Parts: Cup Rotary / Electric XY table /Metal Plate Fixture
|
Model
|
CO2 Laser Marking Machine
|
|
|
|
Cooling Mode
|
Air Cooling
|
|||
|
Power:
|
20W/30W/50W/60W/100W
|
|
|
|
Marking Speed
|
7000mm/s
|
|||
|
Laser Source
|
Bost/CRD/Davi
|
|
|
|
Minumum Line Width
|
0.015mm
|
|||
|
Pulse Frequency
|
1-25Khz/1-100Khz
|
|
|
|
Minumum Character
|
0.2mm
|
|||
|
Field Lens Brands
|
Singapore Wavelength
|
|
|
|
Laser Wavelength
|
1064μm
|
|||
|
Marking Area:
|
110*110mm / 150*150mm/ 175*175mm/
200*200mm/300*300mm
|
|
|
|
Operating Environment
|
5℃-45℃
|
|||
|
Control Card
|
JCZ Brand EZCAD
|
|
|
|
Power Supply
|
AC220V or 110V plug
|
|||
|
Operating System
|
Win XP /7/ 8/ 10 (32 bit, 64bit)
|
|
|
|
Warranty
|
2 years
|
|||

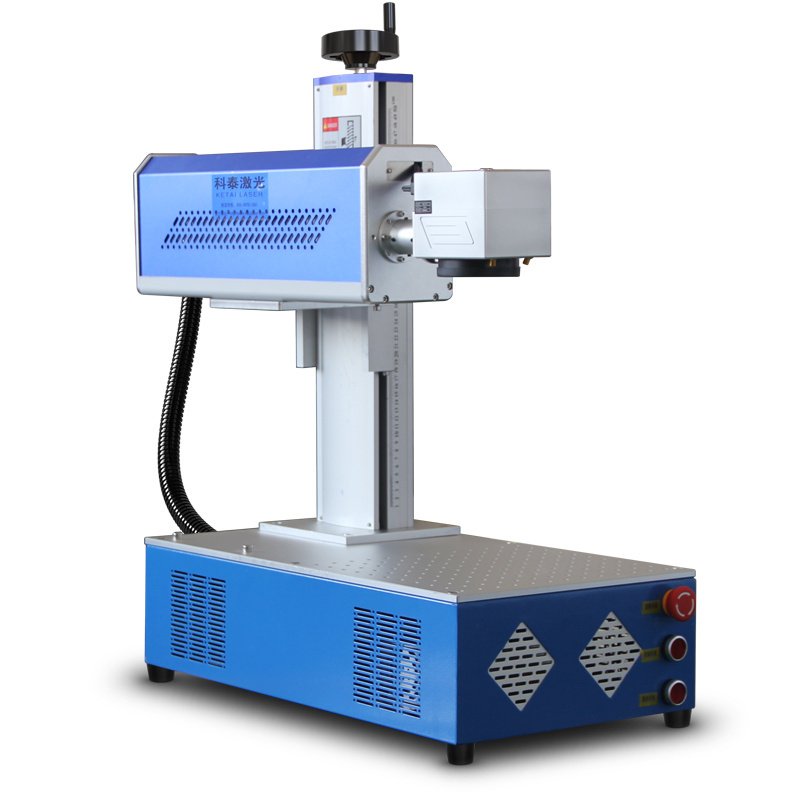

Regarding the shape of the machine, we have below portable, split model, desktop model ,cabinet model and flying types for choice. These machines are similar in function and internals, depending on what shape you prefer. The shipping fee will be different due to the different shape and weight.
When the marking range exceeds the field lens range, we also have a movable X or XY, XYY worktable for customers to choose.
Optional parts:
1. 80 rotary: it is used to mark curved surfaces, such as pipes, pens, cylinders, ring objects
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet
1. 80 rotary: it is used to mark curved surfaces, such as pipes, pens, cylinders, ring objects
2. jewelry ring rotary: It is mainly used for jewelry rings and jewelry bracelets
3. XY table / XYZ table: You can manually move in the XY direction without moving the workpiece
4. Pen rotary table: It is mainly used to engrave multiple parts, such as pens
5. Smoke purifier
6. Metal holder: when cutting the metal sheet to fix the metal sheet
There are models for your option:
Please contact with Betty for more info and detailed quotation:
Wechat&Whatsapp +8613181068223
Accessories
Sample
Co2 laser marking machine is widely applied to shoes, clothing, packaging, advertising, tobacco, food and other industries. Can be widely used for marking on all kinds of nonmetal material,such as Paper, PVC, rubber, wood, ceramics, plastic, leather, fabric surface marking.
Packing & Delivery
(1)Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for Moisture Resistance. White Foam filling is used to tighten the laser.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case.
Finally, label the destination country and product number.
