Quick Details
-
Voltage:
-
48V/60V/Customized
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Hydraulic Disc Brake (Hydraulic Brake Pad)
-
Battery Capacity:
-
27.5/35AH optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Coswheel/OEM/ODM/Customized
-
Model Number:
-
CT20S
-
Range per Power:
-
80-150km
-
Torque:
-
120NM
-
Charging Time:
-
7-10H
-
Product name:
-

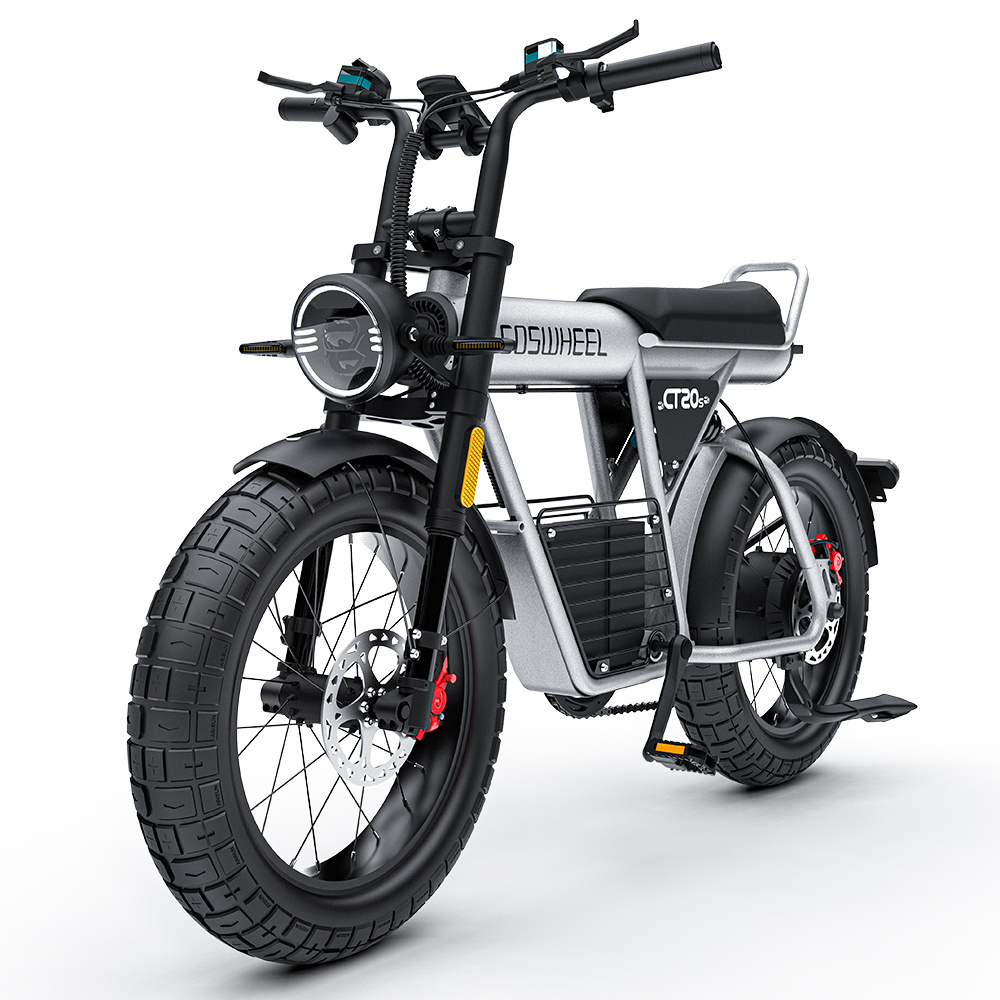

Coswheel CT20S long saddle city commute ebike
-
Motor Power:
-
2100W brushless motor
-
Battery:
-
25Ah/27.5Ah/35Ah 18650 Li-ion battery optional
-
Speed:
-
80km/h
-
Range:
-
80-150km
-
Frame:
-
Aviation aluminum alloy frame 6061
-
Tire:
-
Black off-road Tire 20*5.0 H5176 30TPI with AV+ Liner Belt
-
Brake:
-
Motorcycle level front and rear double oil disc brake
-
Derailleur:
-
Shimano 7 Speed Shifter
-
Max Load:
-
150kg(about 330lbs)
Quick Details
-
Gears:
-
7 Speed
-
Frame Material:
-
Aluminum Alloy
-
Wheel Size:
-
20*5.0 inch fat tire
-
Voltage:
-
48V/60V/Customized
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Hydraulic Disc Brake (Hydraulic Brake Pad)
-
Battery Capacity:
-
27.5/35AH optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Coswheel/OEM/ODM/Customized
-
Model Number:
-
CT20S
-
Range per Power:
-
80-150km
-
Torque:
-
120NM
-
Charging Time:
-
7-10H
-
Product name:
-
Coswheel CT20S long saddle city commute ebike
-
Motor Power:
-
2100W brushless motor
-
Battery:
-
25Ah/27.5Ah/35Ah 18650 Li-ion battery optional
-
Speed:
-
80km/h
-
Range:
-
80-150km
-
Frame:
-
Aviation aluminum alloy frame 6061
-
Tire:
-
Black off-road Tire 20*5.0 H5176 30TPI with AV+ Liner Belt
-
Brake:
-
Motorcycle level front and rear double oil disc brake
-
Derailleur:
-
Shimano 7 Speed Shifter
-
Max Load:
-
150kg(about 330lbs)
Why Choose Us
Specification
|
Brand
|
COSWHEEL
|
|
Model
|
CT20S
|
|
Key Features
|
Original independent and autonomous design ,IP66 waterproof level for the entire e-bike,
|
|
Motor
|
48v/60v ,1000W / 1200W /1500w rear high-speed motor Standard,2100w peak power
|
|
Shock
|
Full shock absorbers，Hole center 165mm, 850 pounds, black, 165mm Suspension Travel
|
|
Materials
|
Aviation aluminum alloy frame 6061
|
|
Brake system
|
Motorcycle level front and rear double oil disc brake,Front brake - oil pipe length 950mm ,Rear brake - oil pipe length 1900mm
|
|
Power Booster
|
Double Hall
|
|
Battery
|
removbale battery pack equipped battery lock ,25Ah/27.5Ah/35Ah 18650 Li-ion battery optioal (1200Wh/1650Wh/1680Wh)
|
|
Torque
|
120NM
|
|
Climb Gradient
|
About 35°
|
|
Max speed
|
65km/h (41mph)，Can speed limit 25KM/H
|
|
Meter
|
Large 3.5-inch Color LCD Instrument Display,Cable length 1300mm, SM-5Y, 5 pole cable with USB
|
|
Turn signal
|
Tail light with left and right turn signal
|
|
Tire size
|
Black off-road Tire 20*5.0 H5176 30TPI with AV+ Liner Belt
|
|
Front fork
|
Anti-oxidation 20-inch double-shoulder shock-absorbing front fork
|
|
Headlights
|
LED Angel Eye Headlights With dual turn signals,2A four-core wire,With quick release waterproof cable
|
|
Charger
|
Add defense backflow function, voltage 110V-240V
|
|
Controller
|
Maximum load 35A current
|
|
Chain wheel crank
|
46T, all aluminum one-piece, sand black crank
|
|
Pedal
|
Plastic folding pedal with reflector, axle 9/16 X2
|
|
Curved handle
|
Sand black big swallow handle, φ620*31.8*H:30
|
|
Seats
|
Brown 0.8T adsorption special leather
|
|
Chain
|
7-speed rust-proof, S33GY*128L
|
|
Gearbox
|
Shimano 7-speed drivetrain
|
|
Foot brace
|
20" mountain bike aluminum adjustable side bracket + black plastic adjustment legs + all black crystal label
|
|
fenders
|
Front and rear fenders are wrapped inside support, front fender with two support sticks
|
|
Max load
|
150kg(about 330lbs)
|
|
Mileage
|
80-120km
|
|
Size
|
Dimension 180*60*115cm，Packing Size 146*39*86cm
|
