Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin
-
Marking Head Brand:
-
Sino galvo
-
Weight (KG):
-
55 KG
-
Product name:
-
jpt mopa m7 60w 100w stainless steel
-
Keywords:
-
mini fiber optic laser engraving machine
-
Laser source:
-
Raycus /JPT Laser Source
-
Laser Power:
-
20W/30W/50W(Optional)
-
Applicable Material:
-
Metal Aluminum Stainless Steel
-
Marking Speed:
-
7000mm/second
-
Laser wavelength:
-
1064nm
-
Working area:
-
110*110mm /175*175mm/ 200*200mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT, JPG, TIF, etc
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowin
-
Marking Head Brand:
-
Sino galvo
-
Weight (KG):
-
55 KG
-
Product name:
-
jpt mopa m7 60w 100w stainless steel
-
Keywords:
-
mini fiber optic laser engraving machine
-
Laser source:
-
Raycus /JPT Laser Source
-
Laser Power:
-
20W/30W/50W(Optional)
-
Applicable Material:
-
Metal Aluminum Stainless Steel
-
Marking Speed:
-
7000mm/second
-
Laser wavelength:
-
1064nm
-
Working area:
-
110*110mm /175*175mm/ 200*200mm
-
Power supply:
-
110V/220V 10% 50Hz/60Hz

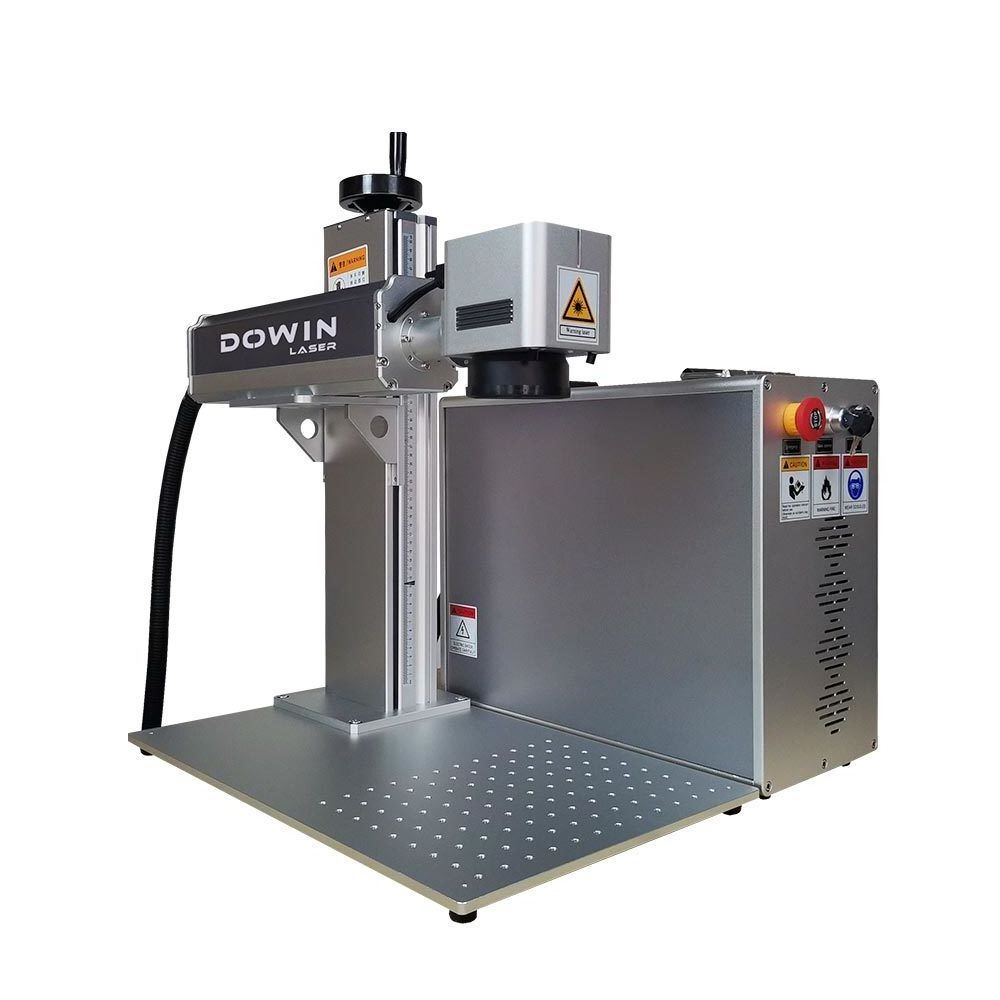

Fiber laser marking machine:
|
DW-20FD
|
|
|
DW-20FD
|
|
|||
|
Work Area
|
|
|
110*110mm/150*150mm/200*200mm/300*300mm ( Optional )
|
|
|||
|
Laser Power
|
|
|
20W/30W/50W/100W
|
|
|||
|
Fiber laser generator
|
|
|
Raycus/JPT
|
|
|||
|
Laser Pulse Frequency
|
|
|
20KHz – 200KHz
|
|
|||
|
Laser scanner
|
|
|
Sino-Galvo SG7110
|
|
|||
|
Red light dot
|
|
|
Yes
|
|
|||
|
Power supply
|
|
|
Taiwan MW (Meanwell)
|
|
|||
|
Wavelength
|
|
|
1064±10nm
|
|
|||
|
Beam Quality M2
|
|
|
<2
|
|
|||
|
Min Line Width
|
|
|
0.01mm
|
|
|||
|
Min Character
|
|
|
0.15mm
|
|
|||
|
Marking Speed
|
|
|
≤10000mm/s
|
|
|||
|
Repeat Precision
|
±0.01mm
|
|
|
|
|||
|
Marking Depth
|
|
|
≤0.5mm
|
|
|||
|
Power Supply
|
110V /220V(±10%)/50Hz/4A
|
|
|
|
|||
|
Gross Power
|
<500W
|
|
|
|
|||
|
Laser Module Life
|
100000h
|
|
|
|
|||
|
Cooling Style
|
Air Cooling
|
|
|
|
|||
|
System Composition
|
Laser source, Control System, Industrial Computer, Vibration lens
|
|
|
|
|||
|
Working Environment
|
Clean and Dust Free
|
|
|
|
|||
|
Power
|
AC220V, 50HZ, 10Amp Stable Voltage
|
|
|
|
|||
|
Warranty
|
3 years
|
|
|
|
|||
Main Features
1) The Raycus brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.
2)Hand-cranked lifting system, easy to operate and easy to use. The laser focal length can be adjusted up and down according to different kinds of materials and marking materials.
3)galvo head high speed galvanometer scan technology,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.
4)Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.
5)Famous brand Raycus laser source , with stable and long life time , max reach 10.0000+hours , IPG ,JPT laser source all available , let us know your request if any special request
6)The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.
7)Professional Marking Software Genuine Jinchengzi Control Operating System.
1.Powerful editing function. 2.Friendly interface. 3.Easy to use. 4.Support Windows XP,Win 7,Win 10 system.
5.Support DXF,PLT and other file formats.
8) Kindly reminder :
1. If you need for ring , jewelry , bracelet engraving , or tumbler marking , we have different models rotary device here , suitable for different work , so let us know in advance , we will recommend the suitable accessories device for you
2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together
These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking , X Y table for help to adjust product height when working , without moving product etc , kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge
jpt mopa m7 60w 100w stainless steel laser marking machine mini fiber optic laser engraving machine for metal sheet
Fiber laser marking machine applicable material:
Metal:
marking and engraving on the surface of stainless steel, alumina, aluminum alloy, aluminum, copper, iron, gold, silver, carbide and other metal materials.
Plastic:
hard plastic, PVC material, etc. (different materials have different components, and the marking effect will be different accordingly)
Industry:
Nameplates, Metal/Plastic Accessories, Hardware, Jewelry, Rings, Bird Rings, Animal Ear Tags, Auto Parts, Tires, Ceramics, Chips, etc.
Packing method:
1. Standard carton, filled with sponge, protective packaging, suitable for air transportation.
2. The wooden box is free of fumigation, suitable for sea and air transportation.
3. Customized packaging according to customer requirements.
