Quick Details
-
Power:
-
2.2kw
-
Weight:
-
35 KG
-
Dimension(L*W*H):
-
500*350*350mm
-
Year:
-
2023
-
Product name:
-
cake pancake frying pan thousand layer cake machine
-
Keywords:
-
Mille crepes cake machine,pancake crepe baking machine
-
Function:
-
Multifunctional
-
Cake layer diameter:
-
6inch, 8inch, 10inch(needs to customize)
-
Cake layer thickness:
-
0.4-1.2mm(based on the consistency of paste)
-
Machine dimension:
-
500*350*350mm(500mm with paste hopper)
-
Suitable for:
-
Cake layers, pancake layer, roasted duck cake, thin pancake
-
Packing:
-
Wooden case
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPP
-
Voltage:
-
220V/50HZ, 220V50HZ1phase
-
Power:
-
2.2kw
-
Weight:
-
35 KG
-
Dimension(L*W*H):
-
500*350*350mm
-
Year:
-
2023
-
Product name:
-
cake pancake frying pan thousand layer cake machine
-
Keywords:
-
Mille crepes cake machine,pancake crepe baking machine
-
Function:
-
Multifunctional
-
Cake layer diameter:
-
6inch, 8inch, 10inch(needs to customize)
-
Cake layer thickness:
-
0.4-1.2mm(based on the consistency of paste)
-
Machine dimension:
-
500*350*350mm(500mm with paste hopper)
-
Suitable for:
-
Cake layers, pancake layer, roasted duck cake, thin pancake
-
Packing:
-
Wooden case
-
After Warranty Service:
-
Online support

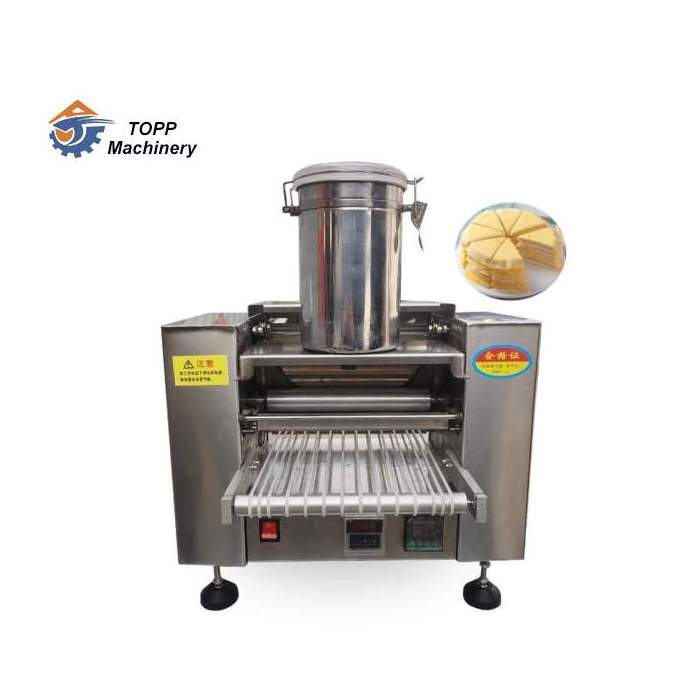

Good price layer cake crepes cake pancake frying pan thousand layer cake machine
Production Description
Function:
This machine can make cake layers, pancake layer, roasted duck cake, thin pancake, etc.
The user has to adjust the formula ratio if the formula is not suitable for this machine.
The user has to adjust the formula ratio if the formula is not suitable for this machine.
Operation step:
Step1
:
confirm the feeding rod to be fixed correctly.
Step2: pour the mixed dough paste into the hopper, cover the cap. Then install the hopper on the machine.
Step3: press the power switch.
Step4: adjust the roasting time (usually it is about 5-15seconds. The preheating time can be set about 30 seconds.)
Step5: adjust the roasting temperature. (Usually it is about 120-190℃)
Step6: waiting about 10 minutes when the temperature reach the set temperature, the indicator light will change from green to red.Then put the feeding rod inward. At this time, you can make the cake layer.
Step7: dough paste will enter the mold automatically.
Step8: pull the feeding rod outward, the machine will stop work.
Step2: pour the mixed dough paste into the hopper, cover the cap. Then install the hopper on the machine.
Step3: press the power switch.
Step4: adjust the roasting time (usually it is about 5-15seconds. The preheating time can be set about 30 seconds.)
Step5: adjust the roasting temperature. (Usually it is about 120-190℃)
Step6: waiting about 10 minutes when the temperature reach the set temperature, the indicator light will change from green to red.Then put the feeding rod inward. At this time, you can make the cake layer.
Step7: dough paste will enter the mold automatically.
Step8: pull the feeding rod outward, the machine will stop work.
Specification:
|
Model
|
TPP-230
|
|
Power
|
2.2kw
|
|
Voltage
|
220V50HZ1phase
|
|
Cake layer diameter
|
6inch, 8inch, 10inch(needs to customize)
|
|
Cake layer thickness
|
0.4-1.2mm(based on the consistency of paste)
|
|
Capacity
|
200-300pcs/hr
|
|
Machine dimension
|
500*350*350mm(500mm with paste hopper)
|
|
Weight
|
About 35kg
|
