- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LianXiang
-
Model Number:
-
LX-psb
-
Type:
-
plastic drain sheet
-
Product Name:
-
Dimpled Plastic Drain Sheet
-
Brand:
-
Lianxiang
-
Material:
-
plastic
-
Feature:
-
Waterproof
-
Width:
-
1m-6m
-
Free sample:
-
Available
-
Keyword:
-
Hdpe Plastic Drainage Board
-
Color:
-
Picture Color
-
Usage:
-
Green Roof System Drainage Board
-
Function:
-
Structural hydrophobic protection
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, Cross Categories Consolidation
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LianXiang
-
Model Number:
-
LX-psb
-
Type:
-
plastic drain sheet
-
Product Name:
-
Dimpled Plastic Drain Sheet
-
Brand:
-
Lianxiang
-
Material:
-
plastic
-
Feature:
-
Waterproof
-
Width:
-
1m-6m
-
Free sample:
-
Available
-
Keyword:
-
Hdpe Plastic Drainage Board
-
Color:
-
Picture Color
-
Usage:
-
Green Roof System Drainage Board
-
Function:
-
Structural hydrophobic protection

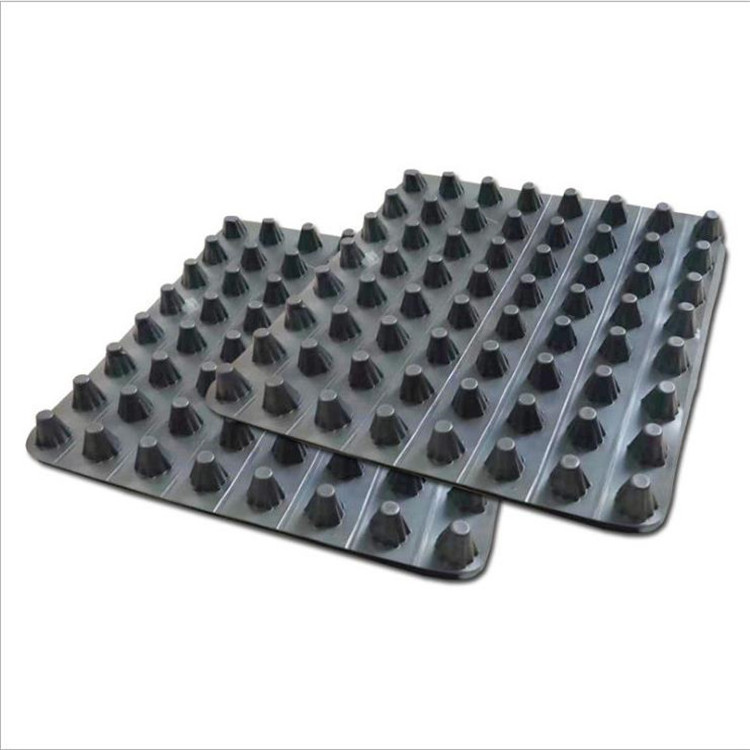

Dimple plastic drain sheet
PRODUCT PRESENTATION
Dimple plastic drain sheet is made of high molecular, produced by extrusion and adsorption. The tri-dimensional space can draingas and fluid. It's a multi-functional material, and it can be used to channel water and gas easily, which is sound insulation and vibration isolation. In the field of civil construction, it can be widely used in building roof system layer overhead, planted roof drainage ventilation, basement waterproofing system production, thermal and moisture isolation of the interior surface, road and rail tunnel drainage protection.
PRODUCT ADVANTAGES
1.Chemical resistance
2.Sound insulation and vibration isolation
3.Resist to plants' root
4.Easy for construction and have long lifetime
|
1
|
Material
|
100% High-Density Polyethylene
|
|
|
|
|
|
|
||||||
|
2
|
Width
|
1M, 2M, 3M, 4M
|
|
|
|
|
|
|
||||||
|
3
|
Length
|
50M or following your requirements
|
|
|
|
|
|
|
||||||
|
4
|
Weight
|
1100g
|
1200g
|
1400g
|
1500g
|
1600g
|
1800g
|
2400g
|
||||||
|
|
(g/m3)
|
|
|
|
|
|
|
|
||||||
|
5
|
Color
|
White, Green, Black, Blue
|
|
|
|
|
|
|
||||||
|
6
|
Dimple Height
|
10
|
12
|
16
|
20
|
25
|
30
|
40
|
||||||
|
|
(mm)
|
|
|
|
|
|
|
|
||||||
|
7
|
Average Board Thickness
|
0.8
|
0.9
|
1
|
1.1
|
1.1
|
1.2
|
1.5
|
||||||
|
|
(mm)
|
|
|
|
|
|
|
|
||||||
|
8
|
Tensile Strength
|
350
|
|
|
|
|
|
|
||||||
|
|
(N/100mm)
|
|
|
|
|
|
|
|
||||||
|
9
|
Anti pression Strength
|
300
|
|
|
|
|
|
|
||||||
|
|
(kpa)
|
|
|
|
|
|
|
|
||||||
|
10
|
Elongation Rate
|
≥80
|
|
|
|
|
|
|
||||||
|
|
(%)
|
|
|
|
|
|
|
|
||||||
|
11
|
Flow Rate
|
≥10
|
≥10
|
≥15
|
≥15
|
≥20
|
≥20
|
≥25
|
||||||
|
|
(cm3.s)
|
|
|
|
|
|
|
|
||||||
|
12
|
Puncture Strength
|
≥350
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
||||||
PRODUCT APPLICATION
1. Greening project: Garage roof greening, roof garden, vertical greening, pitched roof greening, football field, golf course.
2. Municipal project: Airport, roadbed, subway, tunnel, landfill.
3. Constructional engineering: Upper layer or lower layer of architectural foundation, internal and external wall as well as roof and baseboard of basement, roof waterproof and thermal-protective coating.
4. Water conservancy project: Seepage-proofing of reservoir, and artificial lake.
5. Traffic engineering: Road, railway roadbed, dam and slope protection.
2. Municipal project: Airport, roadbed, subway, tunnel, landfill.
3. Constructional engineering: Upper layer or lower layer of architectural foundation, internal and external wall as well as roof and baseboard of basement, roof waterproof and thermal-protective coating.
4. Water conservancy project: Seepage-proofing of reservoir, and artificial lake.
5. Traffic engineering: Road, railway roadbed, dam and slope protection.
Quality Control
COMPANY BRIEF
Shandong Lianxiang Engineering Materials Co.,Ltd. for 10 years experience, is located in Tai’an, Shandong province China. It is a high-tech enterprise integrating the production, development and sales of new geosynthetics such as geocell, geomembrane, geobag, GCL geosynthetic clay liner, geocell,fexible permeable hose, etc.Our company has passed the ISO9001 quality, environmepational health and safety management system certification, and We are members of the China Tech Association of China on geosynthetics.Our products not only cover almost every province in the country, but also exported to Southeast Asia, Europe, South America,Africa, received widespread praise from customers.
STORAGE AND DELIVERY
Can be packed and shipped according to customer requirements, we can use wooden pallets, plastic pallets, 20GP or 40HQ containers for transportation
We have a mature shipping team and professional reinforcement workers to ensure that the products are perfectly transported to the destination. freight companies we have cooperated with for more than ten years ensure that your products are safe and timely.
FAQ
Q: Can you send samples
?
A: Yes, we are very happy to provide you with free samples to check the quality of our products.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, located in Tai’an, Shandong Province for 10 years experience with factories covering an area of 23000 ㎡ with a complete R & D, production, sales, construction, after-sales one-stop service .
Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer, we would like provide customized services according to your requirements.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
A: Yes, we are very happy to provide you with free samples to check the quality of our products.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, located in Tai’an, Shandong Province for 10 years experience with factories covering an area of 23000 ㎡ with a complete R & D, production, sales, construction, after-sales one-stop service .
Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer, we would like provide customized services according to your requirements.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
