Quick Details
-
Product name:
-
Box Furnace / Muffle Furnaces
-
Power:
-
5200W
-
Temperature accuracy:
-
+/-1C
-
Brand niame:
-
ATOELEC
-
Dimensions:
-
550mmL*660mmW*800mmH
-
Direct Factory:
-
with Low Price
-
After-sales Service Provided 1:
-
Online service7*24
-
Provide:
-
OEM&ODM Service
Quick Details
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
ATOELEC
-
Weight (KG):
-
125
-
Product name:
-
Box Furnace / Muffle Furnaces
-
Power:
-
5200W
-
Temperature accuracy:
-
+/-1C
-
Brand niame:
-
ATOELEC
-
Dimensions:
-
550mmL*660mmW*800mmH
-
Direct Factory:
-
with Low Price
-
After-sales Service Provided 1:
-
Online service7*24
-
Provide:
-
OEM&ODM Service

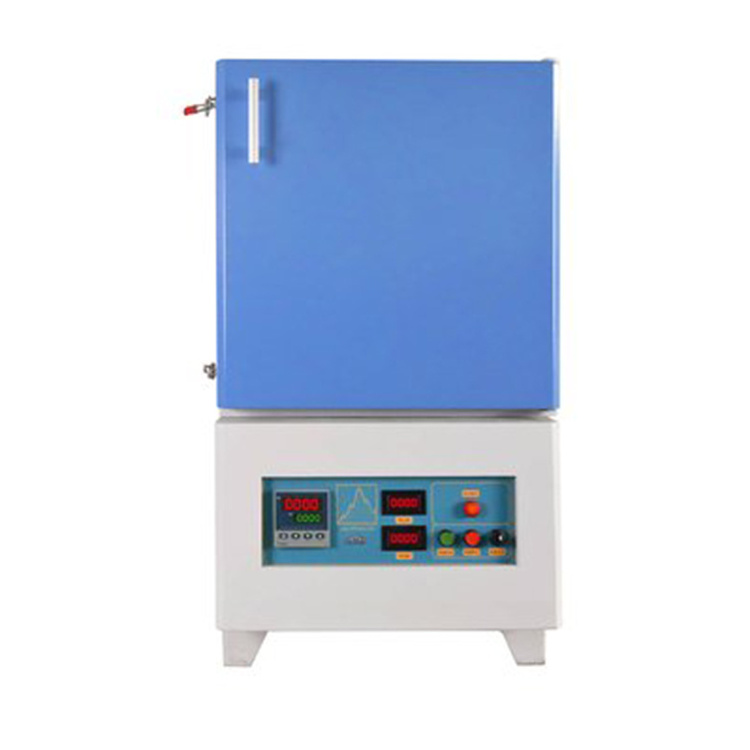

1700C High Temperature Box Furnace Lab Muffle Furnaces
Products Description
Product Features :
1.The furnace material adopts high purity alumina fiber, which can minimize the energy loss; 2.Furnace surface coated with American imported high temperature alumina coating can improve heating efficiency and service life;
3.With overheat and break coupling protection, and a door power off function;
4. Using 1700 grade silicon molybdenum rod, the highest temperature can reach 1700 degrees.
|
Product name
|
Box Furnace / Muffle Furnaces
|
|
Model
|
AOT-KSL-1700X-8L
|
|
Voltage input
|
220V 50Hz, 110V optional
|
|
Power
|
5200W
|
|
Continuous working temperature
|
1600 Centigrade
|
|
Max working temperature
|
1700 Celsius
|
|
Heating area
|
200mm*200mm*200mm
|
|
Suggest heating rate
|
Room temperature to 1400C ≤ 10C/min ;
1400-1600C≤ 5C/min; Above 1600C≤ 2C/min; |
|
Temperature accuracy
|
+/- 1C
|
|
Heating element
|
MoSi2 heating rod (6pcs)
|
|
Temperature control
|
PID automatic control
|
|
Programable
|
Intelligent 30 segments programmed
|
|
Dimension
|
550mmL*660mmW*800mmH
|
|
Weight
|
125 KG
|
