FOB Reference Price: Get Latest Price
≥5 Pieces
US $30
≥50 Pieces
US $28
≥100 Pieces
US $26
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
XTZY
Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 2
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Wireless smart shut-off water meter
Size:
110*83*112
Feature:
High Accuracy

Quick Details

Warranty:
3 years
Type:
Prepaid water meters
Place of Origin:
Anhui, China
Brand Name:
XTZY
Model Number:
LXSY
Material:
Brass Body
Standard:
ISO-9001
Color:
White
Name:
XTZY
Accuracy:
class 2
Communication mode:
RF Card
Nominal Diameter:
DN15-DN500
Product name:
Wireless smart shut-off water meter
Size:
110*83*112
Feature:
High Accuracy
Product Overview

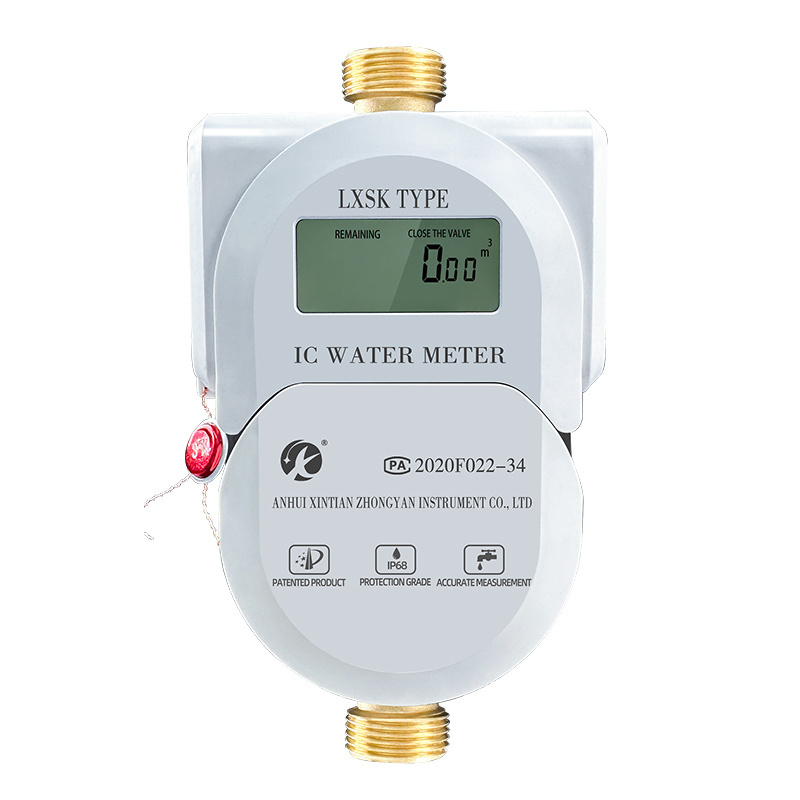

IC card RF water meter

The LXSY series card type prepaid smart water meters comply with national standards GB/T778.1~3-2007 and industry standards CJ/J133-2007, and the factory inspection procedures follow JJG225-2009.
FEATURES AT A GLANCE
Prepaid function : Users buy water first before using it, and close the valve to stop water if they owe.
One card function : One card enables the control of electricity and water meters.
Display synchronization function : The LCD display is synchronized with the mechanical display. Even if there is a circuit malfunction and the LCD cannot be displayed, it can refer to the mechanical display.
Reminder alarm function : Battery undervoltage, insufficient available water, strong magnetic interference, and other fault information will prompt an alarm on the LCD.
Data upload function : Every time a user buys water, they will bring relevant information back to the management system, allowing the management party to understand the user's water usage and table status.
Figure 1
Figure 2
Figure 3
PRODUCT SPECIFICATIONS
Project
Technical Parameter
Data
Nominal diameter DN
15
20
25
32~150
Minimum flow Q1 (m³/h)
0.03
0.05
0.07
0.12~16
Boundary flow Q2 (m³/h)
0.048
0.08
0.28
0.48~64
Common flow rate Q3 (m³/h)
2.5
4
6.3
12~400
Overall dimensions (mm) (Long × wide × High)
110×83×112
130×83×112
160×83×112
See actual size
Connecting thread
G1/2
G1
G1 1 /4
DN32:G1 1 /2DN40:G1 3 /4
DN50 and above are flange connections
Maximum reading of flow rate (m³)
99999.9
60kN
Accuracy Class
Level 2
6750ml
Pressure Loss
<25kPa
500N.m
Working Pressure (Mpa)
≤1MPa
Conditions of Use
Medium temperature of cold water meter: 0 ℃~40 ℃; Medium temperature of hot water meter: 0-90 ℃; Relative temperature
Battery type and voltage
Lithium battery: 3.0V - small caliber meter; 3.6V - Electric water meter; 7.2V-large caliber alkaline battery: 4.5V-3 No. 5batteries
Installation method
Horizontal installation (horizontal meter) or vertical installation (vertical meter)
Display number of digits
6 Digits
PRODUCT CONFIGURATION
All copper based meter
All copper joint
Water-tight watch case
