Quick Details
-
Rated Lifting Moment:
-
920MM
-
Max. Lifting Height:
-
9.2mX0.7t
-
Place of Origin:
-
China
-
Brand Name::
-
Yugong Spider Crane
-
Key words::
-
mini crane
-
Keyword::
-
mini spider crane
-
Product name::
-
mini crane 3 ton
-
Color::
-
Customized Color Acceptable
-
Package size per unit product::
-
5600.00cm * 900.00cm * 1000.00cm
-
Walking Way::
-
Hydraulic Motor
-
Safety system::
-
Safe load moment limiter
-
Boom type::
-
Automatic 4 sections
-
Crane screen::
-
Intelligent display screen
Quick Details
-
Weight (KG):
-
3000
-
Application:
-
Working in small spaces., Building Construction
-
Rated Loading Capacity:
-
3T 5T 8T
-
Rated Lifting Moment:
-
920MM
-
Max. Lifting Height:
-
9.2mX0.7t
-
Place of Origin:
-
China
-
Brand Name::
-
Yugong Spider Crane
-
Key words::
-
mini crane
-
Keyword::
-
mini spider crane
-
Product name::
-
mini crane 3 ton
-
Color::
-
Customized Color Acceptable
-
Package size per unit product::
-
5600.00cm * 900.00cm * 1000.00cm
-
Walking Way::
-
Hydraulic Motor
-
Safety system::
-
Safe load moment limiter
-
Boom type::
-
Automatic 4 sections
-
Crane screen::
-
Intelligent display screen
Product Description

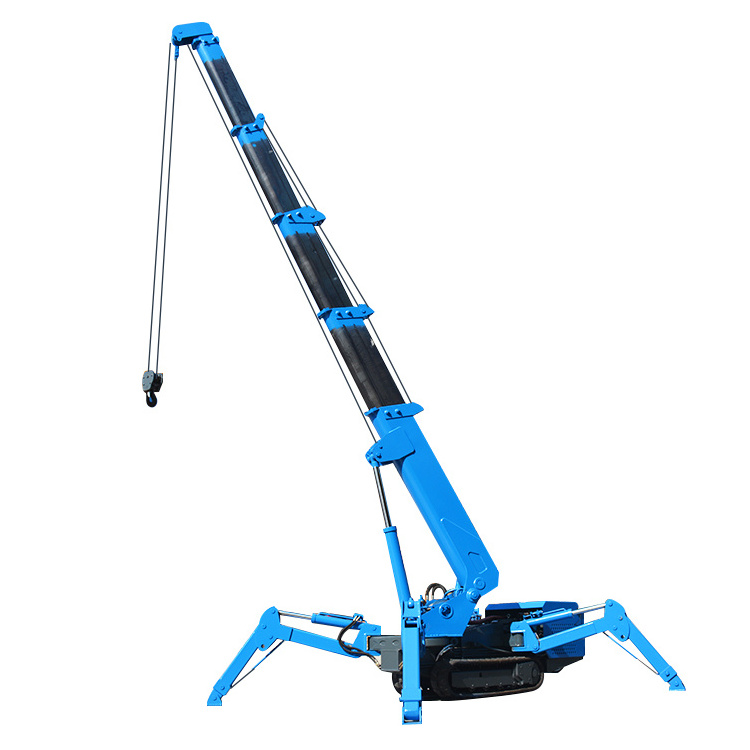

Spider crane
Spider crane miniature design, small size, strong lifting capacity.Production range: 1.5 tons - more than 10 tons,The most commonly used models: 3 tons -5 tons -8 tons. The model and configuration can be customized, the design is reasonable, the operation is simple, easy to learn and understand, and the work is stress-free.Use the wireless remote control or body switch to operate, and the operation is fast. Say goodbye to the era when you can only rely on human work in narrow spaces, which not only improves work efficiency but also ensures work safety.
Specification
|
Model
|
|
YG-30
|
YG-50
|
YG-80
|
|
|
Specification
|
|
3t
|
5t
|
8t
|
|
|
Maximum working radius
|
|
8.83mx0.15t
|
14mx0.5t
|
16.5m
|
|
|
Maximum above-ground head
|
|
9.9mx0.7t
|
16.8m
|
|
|
|
Winch device
|
Hook Speed
|
0-8m/min(4 rope)
|
12m/min(4 rope)
|
12m/min(4 rope)
|
|
|
|
Rope diameter
|
8mm-45m
|
11mm-80m
|
11mm-80m
|
|
|
Telescopic system
|
Boom Type
|
5-section boom, pentagonal structure
|
5-section boom, pentagonal structure
|
5-section boom, pentagonal structure
|
|
|
|
Boom Length/Time
|
3.1m-9.2m/20sec
|
12.3m/54sec
|
12.3m/54sec
|
|
|
Up and down
|
Boom Angle/Time
|
0°~78°/13sec
|
0°~78°/13sec
|
0°~78°/13sec
|
|
|
Slew system
|
Slew Angle/Speed
|
0-360°continuous/60sec
|
0-360°continuous/38sec
|
0-360°continuous/38sec
|
|
|
Traction system
|
Walking Way
|
Hydraulic motor drives
|
Hydraulic motor drives
|
Hydraulic motor drives
|
|
|
|
Walking Speed
|
0~2.5km/h
|
0~2.5km/h
|
0~2.5km/h
|
|
|
|
Grade Ability
|
(25°)36%
|
(25°)36%
|
(25°)36%
|
|
|
|
Operating characteristics
|
Manual operation, remote control
|
Manual operation, remote control
|
Manual operation, remote control
|
|
|
Transport parameters
|
L*W*H(mm)
|
2950*980*1560
|
5000*1500*1900
|
5000*1600*2180
|
|
|
|
Total weight(kg)
|
2700
|
6200
|
7200
|
|
The spider crane adopts rubber crawler hydraulic traveling device, and the hoisting, telescopic, undulating and rotating devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of three-dimensional modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance. The machine is suitable for operations in narrow places where large cranes cannot be deployed.
Application
Packing & Delivery
The spider crane
Install the remote control, install the torque display, install the jib
