Quick Details
-
Place of Origin:
-
China
-
material:
-
stainless steel ,Chrome plated brass
-
Certificate:
-
CE Rohs CQC Reach TUV CQC
-
pin type:
-
spade pin
-
Head shape:
-
Round
-
Function:
-
push button switch
-
Ambient temperature:
-
-20℃~+55℃
-
Panel thickness:
-
1~10mm
-
Operation stroke:
-
About1.8mm
-
nut torque:
-
5~14Nm
-
Base:
-
PA66
Quick Details
-
Protection Level:
-
67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
material:
-
stainless steel ,Chrome plated brass
-
Certificate:
-
CE Rohs CQC Reach TUV CQC
-
pin type:
-
spade pin
-
Head shape:
-
Round
-
Function:
-
push button switch
-
Ambient temperature:
-
-20℃~+55℃
-
Panel thickness:
-
1~10mm
-
Operation stroke:
-
About1.8mm
-
nut torque:
-
5~14Nm
-
Base:
-
PA66
Our Advantage:
1.19years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by UL,
4.ALL of our goods have acquired UL,CE,REACH,ROHS2.0,TUV, CB,ISO9001 certification
5.We use 3D software UG to design and develop our product
6.30000pcs models for choosing
7.Our products supply over 200 middle and high-end customers from America,the UK,France and Germany etc.
8.Building Area:4000 square meter(WENZHOU)
| Product brand | QIANNIAN | |

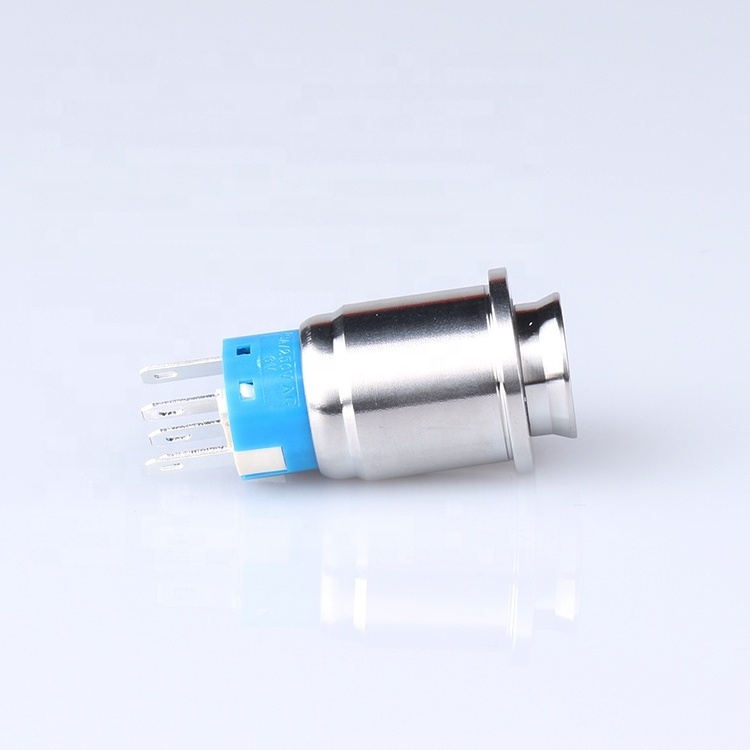

| Product name | Button switch | |
| Product model | QN19-C-JT | |
| Product information | Mounting hole | 19mm |
| Operation types | Maintained | |
| Head shape | round | |
| Enclosure material | Stainless Steel/Nickel-plated brass | |
| Degree of protection | IP67 IK10 | |
| Contact parameters | Switch rating | 5A/36VDC |
| Contact configuration | / | |
| Contact | Silver alloy | |
| Color/voltage | Optional color | R O Y G B W |
| Optional voltage | 6V 12V 24V 110V 220V | |
| Other parameters | Mechanical life | 500,000cycles |
| Electrical life | 50,000cycles | |
| LED life | 40,000hours | |
| Terminal Type | connection terminal | |
| Contact resistance | ≤50mΩ | |
| Insulation resistance | ≥1000mΩ | |
| Dielectric Strength | 2000VAC | |
| Operation Temperature | -20℃~+55℃ | |
| Panel thickness | 1~10mm | |
| nut torque | 5~14Nm | |
| Operation pressure | About4N | |
| Operation stroke | About1.8mm | |
| Base | PA66 | |
| Packages | 36PCS/BOX | |
| Website | http://qndz.en.alibaba.com | |
| Official website | http://www.qnele.com | |
| Product size | ||
