Quick Details
-
Brand Name:
-
Techfine
-
Model Number:
-
ML-60415
-
Work Time (h):
-
All Day
-
Max PV Power:
-
3200W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE/RoSH/ISO/TUV, ISO9001,ISO14001,CE
-
Warranty:
-
1year
-
Name:
-

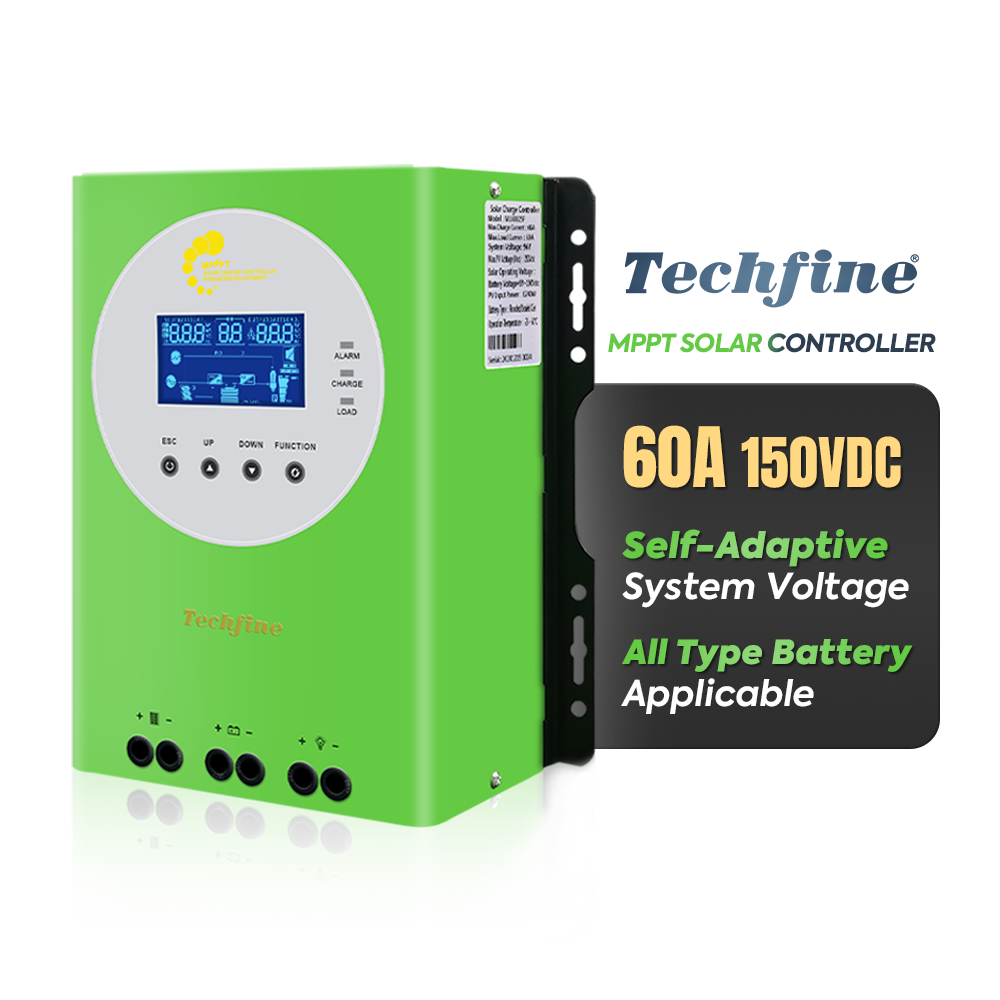

MPPT Solar Charger Controllers
-
MPPT efficiency:
-
99%
-
Display:
-
LCD/LED display
-
Rated Current:
-
40A 60A 80A 100A
-
Max PV Input Voltage:
-
150VDC
-
OEM:
-
Accepted
-
Protection Function:
-
Low Voltage Protection,Battery Reverse Connection Protection
-
WIFI Function:
-
Optional
-
Battery type:
-
VRLA,GEL,DEEP CYCLE,LITHIUM,FLOOD
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller, off grid system
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
ML-60415
-
Work Time (h):
-
All Day
-
Max PV Power:
-
3200W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE/RoSH/ISO/TUV, ISO9001,ISO14001,CE
-
Warranty:
-
1year
-
Name:
-
MPPT Solar Charger Controllers
-
MPPT efficiency:
-
99%
-
Display:
-
LCD/LED display
-
Rated Current:
-
40A 60A 80A 100A
-
Max PV Input Voltage:
-
150VDC
-
OEM:
-
Accepted
-
Protection Function:
-
Low Voltage Protection,Battery Reverse Connection Protection
-
WIFI Function:
-
Optional
-
Battery type:
-
VRLA,GEL,DEEP CYCLE,LITHIUM,FLOOD
# 20 YEARS
industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
#Automatic equipment production : stan dardizied quality、high efficiency production.
#Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
#Production : High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,Overheating protection, Output short-circuit protection.
#The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
#Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
#Automatic equipment production : stan dardizied quality、high efficiency production.
#Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
#Production : High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,Overheating protection, Output short-circuit protection.
#The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
#Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Product Detail
Product Parameters
|
Model
|
|
40A
|
60A
|
80A
|
100A
|
||||
|
System voltage
|
|
12V/24V/36V/48V(Adaptive)
|
|
|
|
||||
|
Applicable battery type
|
|
All type battery adaptive
|
|
|
|
||||
|
MPPT Tracking efficiency
|
|
≥99.5%
|
|
|
|
||||
|
PV input maximum open circuit voltage (VOC)
|
|
150VDC
|
|
|
|
||||
|
Solar panel rated input power
|
12V/24V/36V/48V
|
540W/1080W/2160W
|
800W/1600W/3200W
|
1040W/2080W/4160W
|
1300W/2600W/5200W
|
||||
|
Load undervoltage protection
|
|
10.5V*N（N stands for batteries number）Parameters can be adjustable
|
|
|
|
||||
|
Protections
|
|
Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current
protection |
|
|
|
||||
|
Dimension, L×W×H
|
|
219*260*110mm
|
|
275*348*109mm
|
|
||||
|
Net Weight（KG）
|
|
2.8KG
|
3KG
|
5.2KG
|
5.5KG
|
||||
