Quick Details
-
Model Number:
-
K2
-
Type:
-
No touch exit button
-
Power:
-
36W
-
Sensing Range:
-
3-5cm
-
Product name:
-

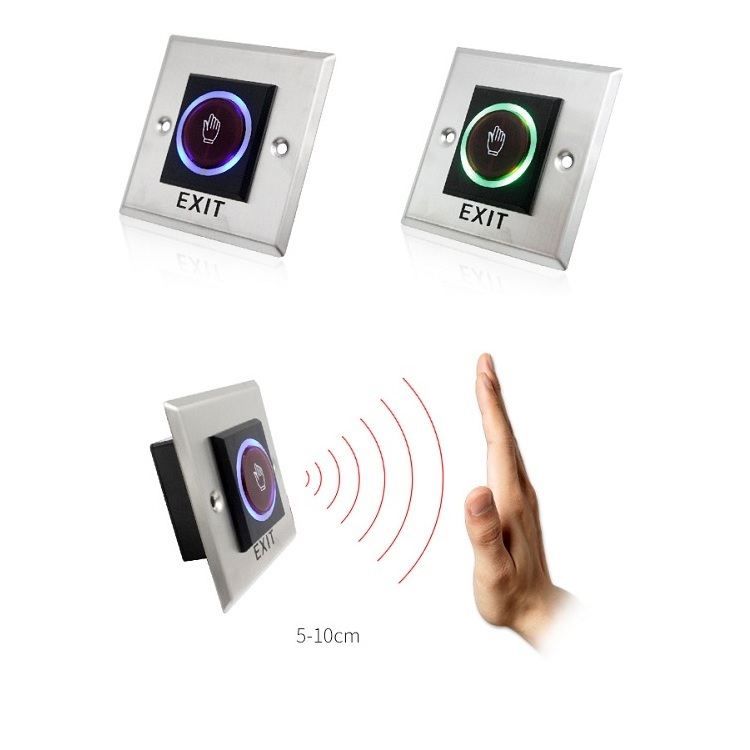

Wall Mounted Infrared Sensor No Touch Access Control Exit Button
-
Input::
-
DC12V
-
Output Contact::
-
NO/NC/COM
-
Detection range::
-
0.1 ~ 10 cm
-
Operating temp::
-
-20℃~+55℃(14-131F)
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Suitable for Door::
-
Hollow Door
-
Weight::
-
0.15kg
-
Dimensions::
-
86Lx86Wx29H(mm)
-
Application::
-
Gate/Door/Exit/Automation control
-
Certification:
-
CE
Quick Details
-
Voltage:
-
12V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fondvision
-
Model Number:
-
K2
-
Type:
-
No touch exit button
-
Power:
-
36W
-
Sensing Range:
-
3-5cm
-
Product name:
-
Wall Mounted Infrared Sensor No Touch Access Control Exit Button
-
Input::
-
DC12V
-
Output Contact::
-
NO/NC/COM
-
Detection range::
-
0.1 ~ 10 cm
-
Operating temp::
-
-20℃~+55℃(14-131F)
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Suitable for Door::
-
Hollow Door
-
Weight::
-
0.15kg
-
Dimensions::
-
86Lx86Wx29H(mm)
-
Application::
-
Gate/Door/Exit/Automation control
-
Certification:
-
CE
access control exit button Advantage:
No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / SUS 304 Stainless steel Plate
User friendly (Healthy protection)
Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output
Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON
|
Product Parameter
|
Parameter Description
|
|
Dimensions
|
86Lx86Wx29H(mm)
|
|
Input
|
DC12V
|
|
Contact Rating
|
12-28V,3A
|
|
Output Contact
|
NO/NC/COM
|
|
Mechanical Life
|
500000 tested
|
|
Suitable for Door
|
Hollow Door
|
|
Operating temp
|
-20℃~+55℃(14-131F)
|
|
Suitable Humidity
|
0-95% (relative humidity)
|
|
Detection range
|
0.1-10cm
|
|
LED Indicator
|
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation) |
|
Weight
|
0.15kg
|
