Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Weight:
-
4000 kg
-
Product name:
-

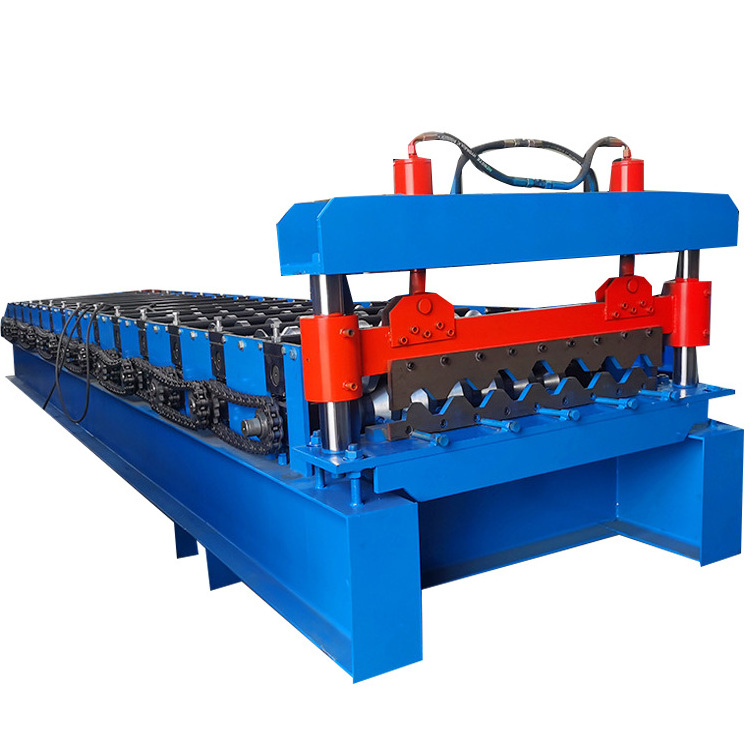

Roof Tile Roll Forming Machine
-
Usage:
-
Steel Construction
-
Name:
-
IBR Roofing Sheet Making Machine
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Keywords:
-
Automatic Roofing Sheet Roll Forming Machine
-
Shaft material:
-
High Grade No.45 Forged
-
Application:
-
Roof Sheet Production
-
Control system:
-
plc
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
colored
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Weight:
-
4000 kg
-
Product name:
-
Roof Tile Roll Forming Machine
-
Usage:
-
Steel Construction
-
Name:
-
IBR Roofing Sheet Making Machine
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Keywords:
-
Automatic Roofing Sheet Roll Forming Machine
-
Shaft material:
-
High Grade No.45 Forged
-
Application:
-
Roof Sheet Production
-
Control system:
-
plc
Products Description
Corrugated roll forming machine
The high speed corrugated roll forming machine is used to make
sinusoidal steel sheets by 0.3-0.8mm galvanized coil/or colored steel sheet .
Use for place :building ,construction ,fence industrial , and
Factory building construction.
Process step
Details of corrugated roll forming machine
1:Roll stand :13
2:Roll material :45# steel
3:Shaft diameter :70mm
4:Forming speed :13-16m/minute
5:Cutting system:hydraulic cutting system
6:Cutting power :4kw
7:Thickness ：0.3-0.6mm
8：Frame :300H
9:Cutter material :CR12
10:Voltage :380v 50hz
11:Machine size :6000*1300*1400mm
12:Weight :2000KGS
13:Control system:PLC
