Quick Details
-
Warranty:
-
12months
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SDEC
-
Model Number:
-
BS-120
-
Speed:
-
1500rpm/1800rpm
-
Weight:
-
1800KGS
-
Product Name:
-
Good quality three phase brushless backup generator for home
-
Engine Model:
-
SC4H160D2,Water-cooled
-
Alternator Model:
-
STG274D,Brushless
-
Controller Model:
-
DSE6020
-
Genset Structure Type:
-
Silent/Open
-
Noise Level:
-
Silent genset 55-78 dba @ 7m , Open type75-98 dba @7m
-
Protection Grade:
-
IP23
-
Governor:
-
Electrical Governor
-
Options:
-
Open,silent,ATS,AMF panel,Trailer,Parallel system
-
Color:
-
As Customers' Requirement
Quick Details
-
Rated Voltage:
-
220V/380V/400V
-
Rated Current:
-
Depend on voltage
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
12months
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SDEC
-
Model Number:
-
BS-120
-
Speed:
-
1500rpm/1800rpm
-
Weight:
-
1800KGS
-
Product Name:
-
Good quality three phase brushless backup generator for home
-
Engine Model:
-
SC4H160D2,Water-cooled
-
Alternator Model:
-
STG274D,Brushless
-
Controller Model:
-
DSE6020
-
Genset Structure Type:
-
Silent/Open
-
Noise Level:
-
Silent genset 55-78 dba @ 7m , Open type75-98 dba @7m
-
Protection Grade:
-
IP23
-
Governor:
-
Electrical Governor
-
Options:
-
Open,silent,ATS,AMF panel,Trailer,Parallel system
-
Color:
-
As Customers' Requirement

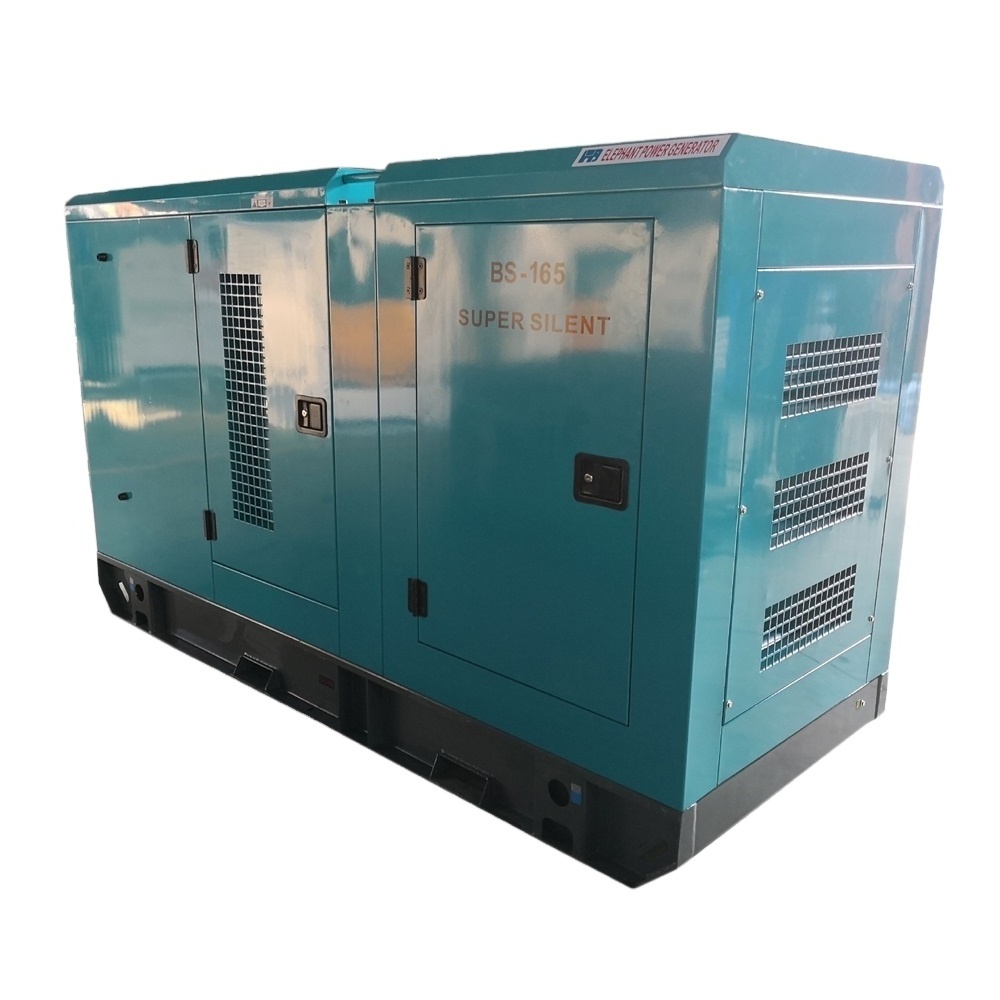

Good quality three phase brushless backup generator for home
|
Product Overview |
|
|
1) Brand-new engine,w/start motor. |
|
|
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. |
|
|
3) Auto control panel with LCD display. |
|
|
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. |
|
|
5) Circuit Breaker,Exhaust Silencer. |
|
|
6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard. |
|
|
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. |
|
|
8) Skid-mounted bottom 8 hours fuel tank. |
|
|
9) Extemal recessed emergency stop button for extra safety. |
|
|
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. |
|
|
110KVA/120KVA SDEC diesel generator |
|
|
Genset Specification |
|
|
Genset Model |
BS-120 |
|
Prime Power(Kw/Kva) |
88KW/110KVA |
|
Standby Power(kw/kva) |
96KW/120KVA |
|
Frequency |
50Hz |
|
Structure type |
Open or Soudproof |
|
Dba"@7m |
silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
|
Engine Model |
SC4H160D2 |
|
Alternator Model |
STG274D |
|
Open type DimensionL*W*H(mm) |
2000*930*1600 |
|
Weight(Kg) |
1141 |
|
Silent type DimensionL*W*H(mm) |
2900*1080*2050 |
|
Weight(Kg) |
1800 |
|
Engine Detail |
|
|
Manufacturer |
SDEC engine Co.,Ltd |
|
Model |
SC4H160D2 |
|
Engine speed |
1500rpm |
|
Type |
vertical,4 cylinder,in-line,water-cooled,four-stroke |
|
Governor |
electrical |
|
Bore*Stroke |
105*124mm |
|
Displacement |
4.3L |
|
Compression ratio |
17.3:1 |
|
Alternator Detail |
|
|
Model |
STG274D |
|
Output power(Kw/Kva) |
96KW\120KVA |
|
Number of phase |
3 |
|
Power factor(Cos Phi) |
0.8 |
|
Number of Pole |
4 |
|
Exciter type |
Shunt |
|
Insulation class |
H |
|
Voltage regulation |
≤ 1% |
|
Total haarmonics (TGH/THC) |
≤ 3% |
|
Wave form:Nema=TIF |
≤ 50 |
|
Wave form:I.E.C=THF |
≤ 2% |
|
Bearing |
single |
|
Coupling |
Direct |
