Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huagon
-
Copper Thickness:
-
0.3- 6 OZ
-
Min. Hole Size:
-
0.2 mm
-
Min. Line Width:
-
0.1 mm
-
Min. Line Spacing:
-
0.1 mm
-
Surface Finishing:
-
Lead/ Lead-free HASL, ENIG, Silver, OSP
-
Board Size:
-
Thickness: ≤ 1.0MM, Tolerance:±0.1MM
-
Use:
-
Mobile Phone
-
Input:
-
5V/2A,9V/2A,12V/1A
-
Output Power:
-
5W 7.5W 10W 15W
-
Inductive charging distance:
-
5~ 10mm.
-
BPP / EPP working frequency:
-
105Khz ~ 205Khz
-
Work efficiency:
-
Over 85%
-
Certification:
-
KC,FCC,CE,BSMI,NCC
-
Interface port:
-
Type-C
-
PCBA size:
-
40*30*3.5mm (support custom)
-
Keywords:
-
wireless charger transmitter module
Quick Details
-
Base Material:
-
Fr4
-
Board Thickness:
-
0.3 mm- 4 mm
-
Model Number:
-
HUAGON CUSTOMIZED
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huagon
-
Copper Thickness:
-
0.3- 6 OZ
-
Min. Hole Size:
-
0.2 mm
-
Min. Line Width:
-
0.1 mm
-
Min. Line Spacing:
-
0.1 mm
-
Surface Finishing:
-
Lead/ Lead-free HASL, ENIG, Silver, OSP
-
Board Size:
-
Thickness: ≤ 1.0MM, Tolerance:±0.1MM
-
Use:
-
Mobile Phone
-
Input:
-
5V/2A,9V/2A,12V/1A
-
Output Power:
-
5W 7.5W 10W 15W
-
Inductive charging distance:
-
5~ 10mm.
-
BPP / EPP working frequency:
-
105Khz ~ 205Khz
-
Work efficiency:
-
Over 85%
-
Certification:
-
KC,FCC,CE,BSMI,NCC
-
Interface port:
-
Type-C
-
PCBA size:
-
40*30*3.5mm (support custom)
-
Keywords:
-
wireless charger transmitter module
We have been specialising in the design and production of wireless charging modules for 9 years. We have proven experience developing single coil, dual coil, triple coil about 5-30V input, charging distance 3-25mm, wireless charging + wired output module, while doing outdoor waterproof, if you need to develop and design wireless charging, adapter related products, we can start with samples, including their moulds, we can give you the most suitable solution, please contact us for specific solutions
Product Description

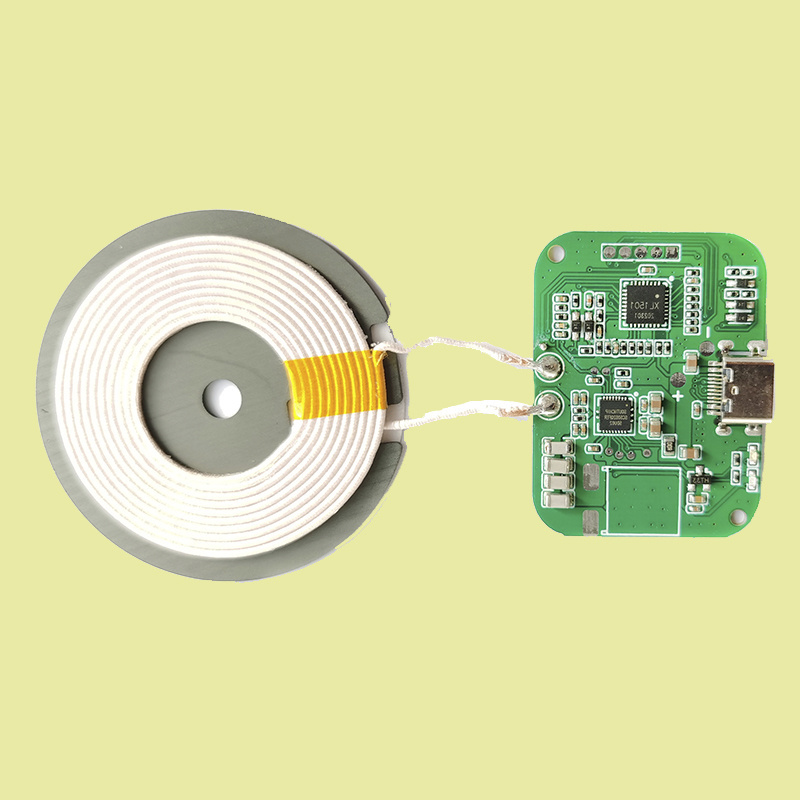

This product uses S7 main control IC, supports Type-C interface communication upgrade, supports PD, AFC, QC communication protocols, a complete work protection system, low cost, ultra-low operating temperature, ultra-high working efficiency, can pass all export certifications, QI certification, able to quickly and wirelessly charge Samsung, iPhone, Huawei, Xiaomi, LG, Google, ZTE, Sony, Nokia, Hammer, Gionee and many other mobile phone brands that meet the QI standard with built-in wireless charging W wireless fast charging, at the same time, it has perfect compatibility with 5W wireless charging mobile phones that meet the QI standard, and can support Qi standard receivers such as Ti, IDT, PANASONIC and so on.
|
Input voltage
|
|
12V,9V,5V
|
|
|
|||
|
communication protocol
|
|
PD, AFC, QC
|
|
|
|||
|
Interface
|
|
Type-C
|
|
|
|||
|
Power
|
|
5W / 10W / 15W
|
|
|
|||
|
Support fast charge protocol
|
|
PD, QC2.0, QC3.0, AFC
|
|
|
|||
|
Inductive charging distance
|
|
1 ～ 10mm
|
|
|
|||
|
BPP / EPP working frequency
|
|
105Khz ～ 205Khz
|
|
|
|||
|
Work efficiency
|
|
75%
|
|
|
|||
|
OTP over temperature protection
|
|
YES
|
|
|
|||
|
OCP over current protection
|
|
YES
|
|
|
|||
|
OVP over voltage protection
|
|
YES
|
|
|
|||
|
UVP under voltage protection
|
|
YES
|
|
|
|||
|
Certification
|
|
KC、FCC、CE、BSMI
|
|
|
|||
Precautions
The wiring from the DC power supply to the input end of the product should be as short and thick as possible to reduce DC loss. The measurement input voltage point should be placed at the product interface, subject to the actual input voltage. Similarly, the wiring from the output end to the load meter is as short and thick as possible. The output voltage is based on the output port voltage of the receiving end. The effective distance between the transmitter board and the receiver is maintained at about 2 ~ 5mm to achieve the best test result.
Wireless charging protection logic design
Static FOD: After working normally after power-on, when entering standby mode and not working, the static FOD function works. At this time, place a metal object about 2MM directly above the coil, covering half of the coil, and the metal content reaches a certain level, At this time, the static FOD triggers and enters the error reporting state, and the indicator flashes immediately to indicate the error.
Dynamic FOD: After normal operation after power-on, after entering the charging mode from the standby mode, the dynamic FOD function works. At this time, if there is a metal object between the transmitting coil and the receiving coil, it is converted according to the transmitting power of the transmitting board and the received feedback power If the loss of conversion efficiency is too large, it is judged to be affected by metal objects. At this time, dynamic FOD is triggered. This conversion process depends on the actual situation. Normally, the error state is entered in about 15 seconds, and the error state is entered in up to 1 minute. And the indicator flashes immediately to prompt an error.
