Quick Details
-
Table Travel (Z) (mm):
-
2000 mm
-
Max. Table Load(kg):
-
8000
-
Travel (W-axis) (mm):
-
900 mm
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Production Capacity:
-
50
-
Place of Origin:
-
China
-
Brand Name:
-
HIPOW
-
Voltage:
-
220/380/415V 50/60Hz
-
Dimension(L*W*H):
-
6995*4030*3735 mm
-
Weight (T):
-
28.5 T
-
Name:
-
TPX6113A High Precision Horizontal Boring MIlling Machine
-
Boring diameter:
-
130mm
-
Spindle Taper:
-
MT8
-
Spindle speed:
-
4-800mm/min
-
Spindle Feed:
-
24 steps
-
Spindle travel:
-
9000mm
-
Max Load:
-
8000KG
-
Certification:
-
ISO ,CE
Quick Details
-
Table Size (mm):
-
1600*1400
-
Table Travel (X) (mm):
-
2000 mm
-
Table Travel (Y) (mm):
-
1800 mm
-
Table Travel (Z) (mm):
-
2000 mm
-
Max. Table Load(kg):
-
8000
-
Travel (W-axis) (mm):
-
900 mm
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
11
-
Production Capacity:
-
50
-
Place of Origin:
-
China
-
Brand Name:
-
HIPOW
-
Voltage:
-
220/380/415V 50/60Hz
-
Dimension(L*W*H):
-
6995*4030*3735 mm
-
Weight (T):
-
28.5 T
-
Name:
-
TPX6113A High Precision Horizontal Boring MIlling Machine
-
Boring diameter:
-
130mm
-
Spindle Taper:
-
MT8
-
Spindle speed:
-
4-800mm/min
-
Spindle Feed:
-
24 steps
-
Spindle travel:
-
9000mm
-
Max Load:
-
8000KG
-
Certification:
-
ISO ,CE
|
|

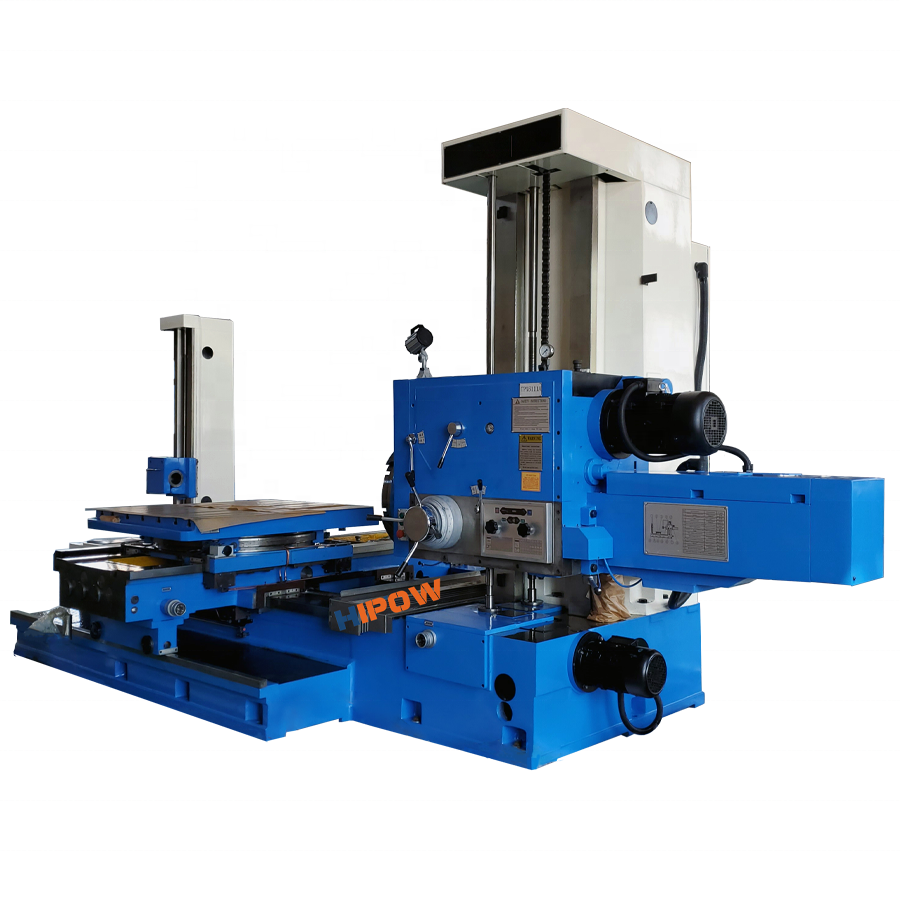

TPX6113A High Precision Horizontal Boring MIlling Machine |
|
|
Main Feature 1. The appearance of beautiful and generous overall layout coordination 2 .Fuselage, vertical column, sliding seat are all rectangular guide, good stability 3 .Guide rail to take automatic quenching, high wear resistance 4 .Digital synchronous display, intuitive and accurate, can improve the efficiency of low cost
|
|
Model |
TPX6113A |
Unit |
|
|
Spindle |
Spindle diameter |
φ130 |
mm |
|
Max.torque |
3136 |
Nm |
|
|
Max. spindle thrust |
31360 |
N |
|
|
Spindle taper |
Metric 80 |
|
|
|
Worktable |
Table working surface |
1600×1400 |
mm×mm |
|
Max. Permissible load on table |
8000 |
Kg |
|
|
T-slot |
28 |
mm |
|
|
Range of machining |
Spindle travel |
900 |
mm |
|
Facing slide travel |
250 |
mm |
|
|
Y-axis travel |
1800 |
mm |
|
|
X-axis travel |
2000 |
mm |
|
|
Z-axis travel |
2000(No Tailstock) |
mm |
|
|
Shift of spindle |
Speed step of spindle |
24 |
|
|
Speed range of spindle |
4~800 |
r/min |
|
|
Speed step of facing head |
18 |
|
|
|
Speed range of facing head |
2.5~125 |
r/min |
|
|
Feed step |
Spindle |
18 |
|
|
facing head |
18 |
|
|
|
Rapid moving speed |
Spindle |
2500 |
mm/min |
|
Headstock |
2500 |
mm/min |
|
|
Longitudinal of worktable |
2500 |
mm/min |
|
|
Transverse of worktable |
2500 |
mm/min |
|
|
Revolution of worktable |
1.2 |
r/min |
|
|
Reading precision of measure system |
0.005 |
mm |
|
|
Precision of boring hole |
IT7 |
|
|
|
Overall dimension of machine(L×W×H) |
6995×4030×3735 |
mm |
|
|
Total weight of machine |
28500 |
Kg |
|
