Quick Details
-
Warranty:
-
1 Years
-
Loading Capacity:
-
5000
-
Category:
-
License Plate Recognition
-
Dimension:
-
1500x400x300mm
-
Cabinet Material:
-
Thick Iron Plate metal 2.0
-
Housing Color:
-
White
-
Camera:
-
1/2.8 CMOS, 2M pixel
-
Display Size:
-
128x64mm
-
Startup Speed:
-
3/6s 50hz
-
Recognition Speed:
-
<30km/h
-
Recognition Rate:
-
>98%
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tiger Wong
-
Model Number:
-
TGW-LCV4
-
Warranty:
-
1 Years
-
Loading Capacity:
-
5000
-
Category:
-
License Plate Recognition
-
Dimension:
-
1500x400x300mm
-
Cabinet Material:
-
Thick Iron Plate metal 2.0
-
Housing Color:
-
White
-
Camera:
-
1/2.8 CMOS, 2M pixel
-
Display Size:
-
128x64mm
-
Startup Speed:
-
3/6s 50hz
-
Recognition Speed:
-
<30km/h
-
Recognition Rate:
-
>98%

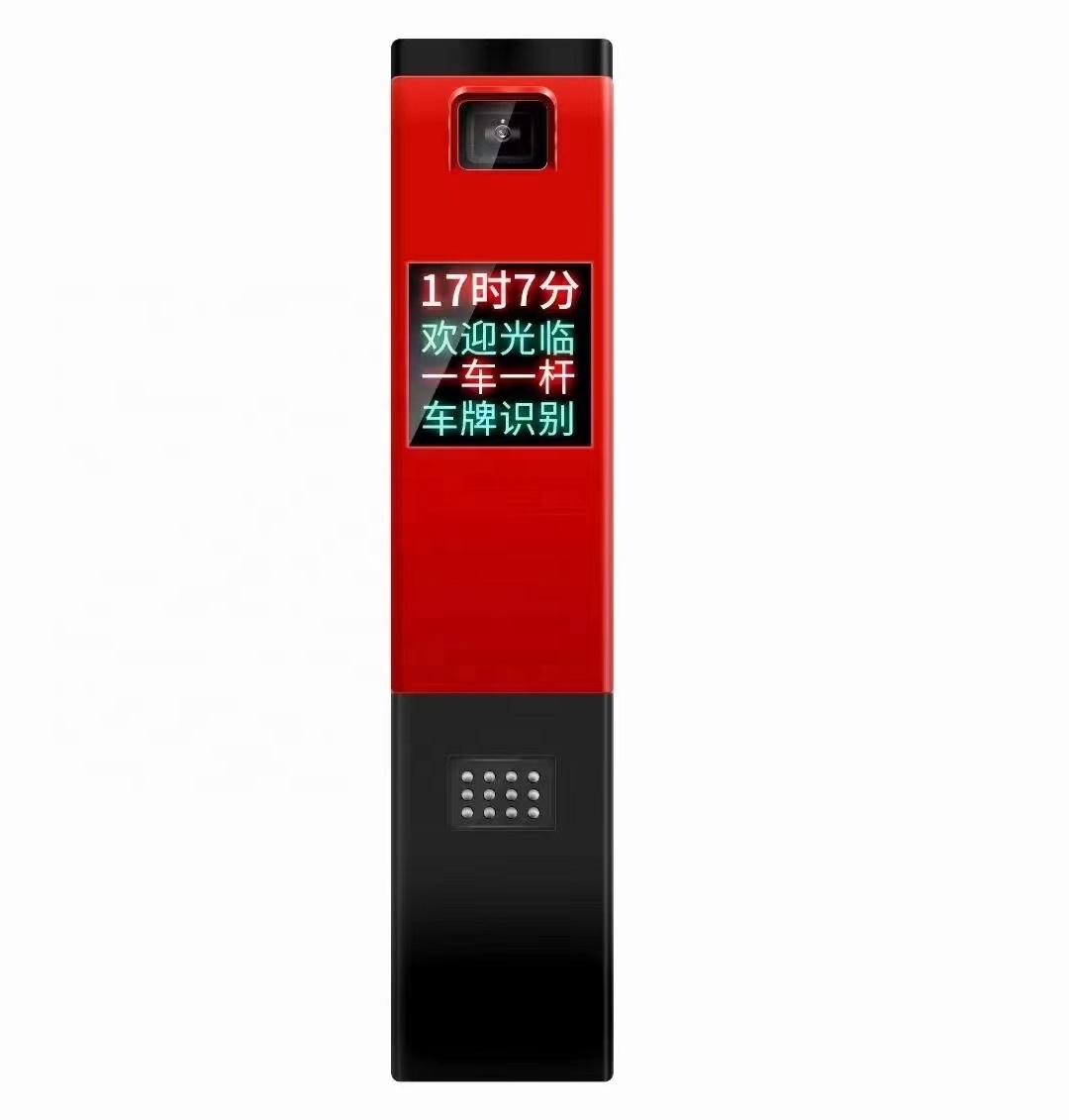

Malaysia parking lot exit access control all in one LPR license plate recognition parking machine
What is LPR(License Plate Recognition) Technology?
LPR or ANPR(Automatic Number Plate Recognition) is a technology that uses optical character recognition on images to read vehicle registration plates to create vehicle location data . It can use existing closed-circuit television , road-rule enforcement cameras , or cameras specifically designed for the task. LPR is used by police forces around the world for law enforcement purposes, including to check if a vehicle is registered or licensed . It is also used for electronic toll collection on pay-per-use roads and as a method of cataloguing the movements of traffic, for example by highways agencies.
License plate recognition can be used to store the images captured by the cameras as well as the text from the license plate, with some configurable to store a photograph of the driver. Systems commonly use infrared lighting to allow the camera to take the picture at any time of day or night. LPR technology must take into account plate variations from place to place.
Advantages of LPR technology:
1. For Parking Lot Management;
2. Identify vehicle plate text and figures automatically;
3. Save labor cost and management difficulty in parking lot management;
4. Improve traffic efficiency;
5. Tickless/ cardless parking lot management;
| Product Category | License Plate Recognition System |
| Cabinet Material | Iron Plate Metal 2.0 |
| Camera | 1/2.8CMOS,2M pixel |
| Camera Lens | (2.8-12mm)Automatic aperture |
| Camera Housing | Weatherproof Housing |
| Fill Light | Automatic light sensor< 30Lux |
| Display | Led Display With Two Colors |
| Display Size | 128X32cm |
| Camera Pixel | 1920X1080 |
| Comunication Interface | TCP/IP |
| Network | RJ45,100M |
| Power Supply | DC12V |
| Voltage | 220 v /110V±10% |
| Work Temperature | -25℃~70℃ |
| Work Humidity | ≤85% |
| Display Language | Support Multi-language displayEx.Chinese,English,Thailand,Saudi Arabic,Bangladesh,Mogolia and so on |
| Recognition Rate | >98% |
| Recognition Speed | <30km/h |
Automatic number plate recognition system features:
- Can identify vehicle license text and figures
- Can identify one line and two lines license plate numbers
- Can recognize 0-2 letters and numbers 1 to 4 for the license plate numbers
- Can identify Chinese, English, Korean, Japanese, etc different languages of license plate numbers
- The database can store the capture image, license plate number ,lane number and the time of vehicle through record
- License plate number entrance and exit record report output is available
- Image size: 768*576pixels
- font size: 16*16-48*64 pixels
- camera gun level angle: the maximum angle 25 degree into the drive lane
- camera gun vertical angle: the maximum angle 25 degree into the horizontal
- Minimum brightness: 500lux
