Quick Details
-
Ejector Force(kN):
-
2.1 kN
-
Theoretical Shot Volume(cm³):
-
223 cm³
-
Injection Rate (g/s):
-
138 g/s
-
Injection Weight (g):
-
204 g
-
Screw Speed (rpm):
-
0 - 170 rpm
-
Screw diameter (mm):
-
45 mm
-
Distance between Tie Bars:
-
530*330mm
-
Weight (KG):
-
3100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
255 mm
-
Model Number:
-
CY-850ST
-
Brand Name:
-
CANYANG
-
Power (kW):
-
16 kW
-
Product name:
-
Plastic Injection Moulding Machine
-
Keyword:
-
Vertical Plastic Injection Moulding Machine
-
Function:
-
Multifunctional Plastic Products Making
-
Application:
-
Inserting Plastic Products
-
Plastic Type:
-
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
-
Used for:
-
Plasic Products
-
BRAND:
-
CANYANG
-
Machine Color:
-
Green+Red
-
Voltage:
-
Customed Avaiable
-
Motor:
-
11KW/15HP
Quick Details
-
Mold Height(mm):
-
230 - 485 mm
-
Ejector Number:
-
16
-
Ejector Stroke(mm):
-
45 mm
-
Ejector Force(kN):
-
2.1 kN
-
Theoretical Shot Volume(cm³):
-
223 cm³
-
Injection Rate (g/s):
-
138 g/s
-
Injection Weight (g):
-
204 g
-
Screw Speed (rpm):
-
0 - 170 rpm
-
Screw diameter (mm):
-
45 mm
-
Distance between Tie Bars:
-
530*330mm
-
Weight (KG):
-
3100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
255 mm
-
Model Number:
-
CY-850ST
-
Brand Name:
-
CANYANG
-
Power (kW):
-
16 kW
-
Product name:
-
Plastic Injection Moulding Machine
-
Keyword:
-
Vertical Plastic Injection Moulding Machine
-
Function:
-
Multifunctional Plastic Products Making
-
Application:
-
Inserting Plastic Products
-
Plastic Type:
-
ABS.AS.PS.HIPSPP.LDPE.HDPE.PMMD.PA6.POM.PCPVC.PET.PBT. TPE(PE)
-
Used for:
-
Plasic Products
-
BRAND:
-
CANYANG
-
Machine Color:
-
Green+Red
-
Voltage:
-
Customed Avaiable
-
Motor:
-
11KW/15HP

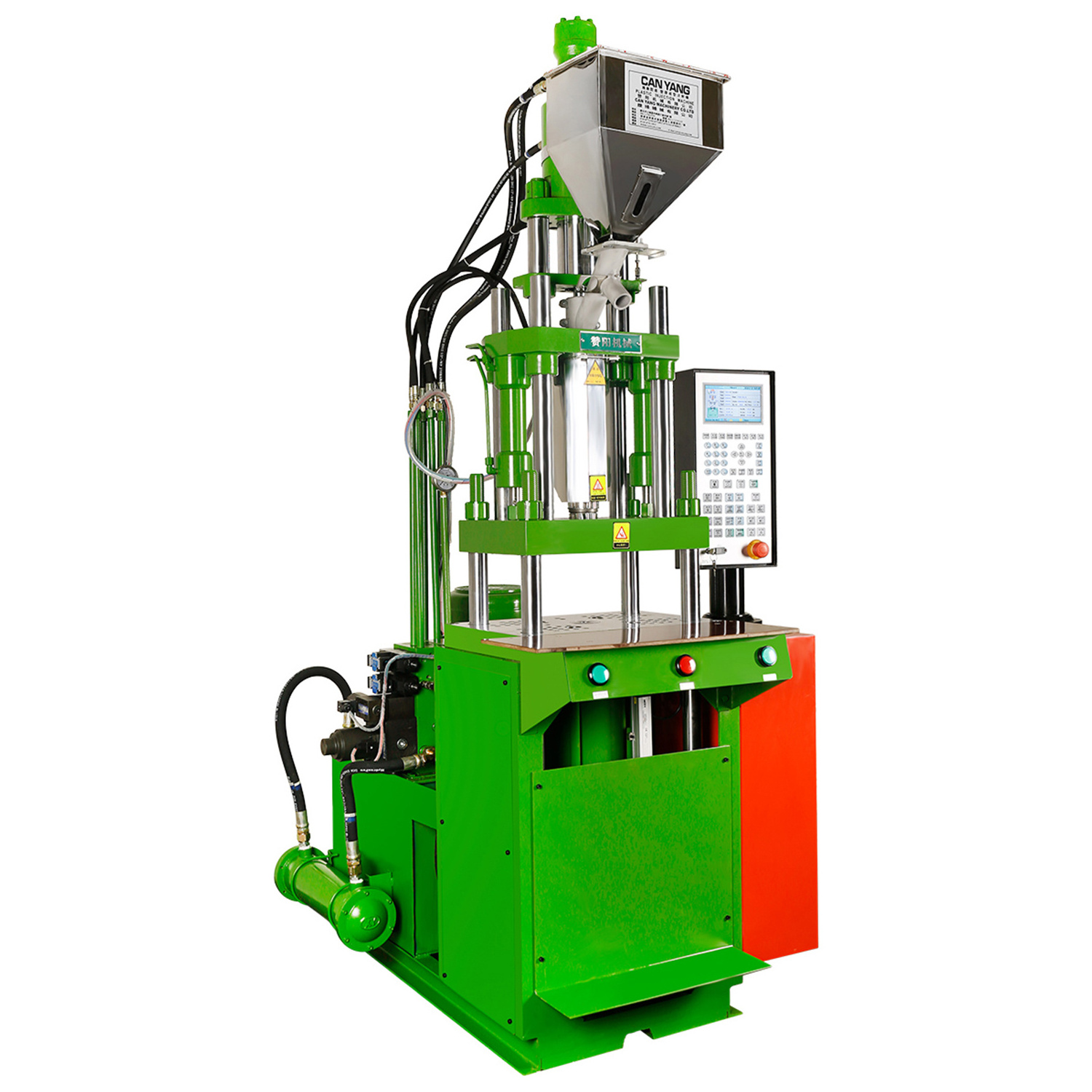

85Ton Slipper Mobile Covers Pen Phone Cover Manufacturing Toy Making Desktop Plastic Injection Machines Moulding Molding Machine
CY-850ST machine characteristics
1. CY-850ST (LCD computer)is a four-column molding machine It adopts vertical opening and closing mold and injection glue to perfectly solve the inlaid injection molding;
2. Equipped with hydraulic lifting and falling type ejection seat structure; convenient for material clearing and installation of the mold;
3. Top-mounted pre-plasticized motor, high-precision transmission and reduced machine height, saving plant space;
4. Built-in sub-cylinder type closing mold structure, fast closing mold and low power consumption；
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10. The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold parameter memory, and the production adjustment is easy and efficient.
1. CY-850ST (LCD computer)is a four-column molding machine It adopts vertical opening and closing mold and injection glue to perfectly solve the inlaid injection molding;
2. Equipped with hydraulic lifting and falling type ejection seat structure; convenient for material clearing and installation of the mold;
3. Top-mounted pre-plasticized motor, high-precision transmission and reduced machine height, saving plant space;
4. Built-in sub-cylinder type closing mold structure, fast closing mold and low power consumption；
5. High-quality nitrided alloy steel pipe set, high wear-resisting and anti-reverse structure, long service life of screw;
6. The temperature control system adopts computer PID control, which is intuitionistic and easy to operate, and the material temperature is accurate
7. The hydraulic system adopts multi-stage pressure independent control, linear control of speed and temperature, precise control of injection glue, opening and closing mode and other actions to make the production injection stable, and the appearance of the product is beautiful;
8. The closed mode and the injection adopt the closed-loop feedback position information of the grating ruler, and the position control is more precise;
9. The electrical appliance is equipped with safety protection device to maintain the safety of the operator; and the fault alarm information display makes the maintenance easier and convenient;
10. The computer adopts large-screen LCD design, intuitive and easy-to-operate human-machine interface, and is free to switch between Chinese, English, Russian and Korean four languages; it can store 60 sets of mold parameter memory, and the production adjustment is easy and efficient.
Product Paramenters
Application
It's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors,cables,auto parts, Plug ,etc.
|
Machine suitable glue and temperature list
|
|
|
|
|
|
|
|
|||||||
|
CY-850ST Plasti type
|
|
|
|
|
|
|
|
|||||||
|
Plasti type
|
TEMPERATURE SET
|
|
|
Hopper Temp
|
Screw RPM
|
Mold Temp
|
Contract
|
|||||||
|
|
Nozzle
|
First
|
Second
|
|
|
|
|
|||||||
|
ABS
|
190-250
|
180-240
|
170-240
|
80-90
|
30-60
|
50-80
|
0.6
|
|||||||
|
AS (Styrene)
|
205-240
|
190-235
|
180-230
|
75-85
|
30-60
|
35-50
|
0.4-0.6
|
|||||||
|
PS (Polystyrene)
|
180-260
|
200-260
|
160-250
|
75-85
|
35-65
|
10-75
|
0.4
|
|||||||
|
HIPS 475
|
220-270
|
190-260
|
160-250
|
80-90
|
50-80
|
5-75
|
0.4
|
|||||||
|
PP (Polypropylene)
|
210-330
|
180-260
|
160-240
|
70-80
|
50-99
|
50-80
|
1.0-2.5
|
|||||||
|
LDPE
|
230-310
|
220-300
|
170-220
|
70-80
|
50-60
|
35-60
|
1.5-5.0
|
|||||||
|
HDPE
|
230-310
|
220-300
|
170-220
|
70-80
|
50-60
|
35-60
|
2.0-5.0
|
|||||||
|
PMMD
|
180-230
|
160-240
|
140-220
|
80-100
|
40-80
|
50-90
|
0.5
|
|||||||
|
PA6 (Nylon 06)
|
210-230
|
210-230
|
200-210
|
80
|
45-50
|
50-80
|
0.8-1.5
|
|||||||
|
PA66 (Nylon 66)
|
250-280
|
240-280
|
220-280
|
80
|
45-50
|
50-80
|
2.25
|
|||||||
|
POM
|
190-210
|
175-220
|
160-210
|
80-90
|
40-80
|
50-90
|
2
|
|||||||
|
PC (Polycarbonate)
|
250-320
|
260-340
|
280-350
|
100-120
|
25-55
|
80-100
|
0.8
|
|||||||
|
PVC
|
170-220
|
160-195
|
150-190
|
60-80
|
30
|
15-60
|
0.1-0.5
|
|||||||
|
PET (Polyester resin)
|
280-295
|
270-275
|
265-270
|
130-140
|
25-45
|
30-85
|
5.0-15
|
|||||||
|
PBT
|
250
|
245
|
235
|
130-140
|
40
|
60-70
|
10
|
|||||||
|
CA
|
180-220
|
170-190
|
150-180
|
50-70
|
85-90
|
40-75
|
0.5
|
|||||||
|
SAN
|
190-250
|
180-230
|
170-220
|
75-90
|
90
|
50-80
|
0.2
|
|||||||
|
DRE+EVA
|
185
|
160
|
160
|
50-80
|
99
|
35-45
|
10
|
|||||||
|
TPE(PE)
|
170-210
|
160-190
|
150-185
|
60-80
|
30
|
20-60
|
0.1-0.4
|
|||||||
