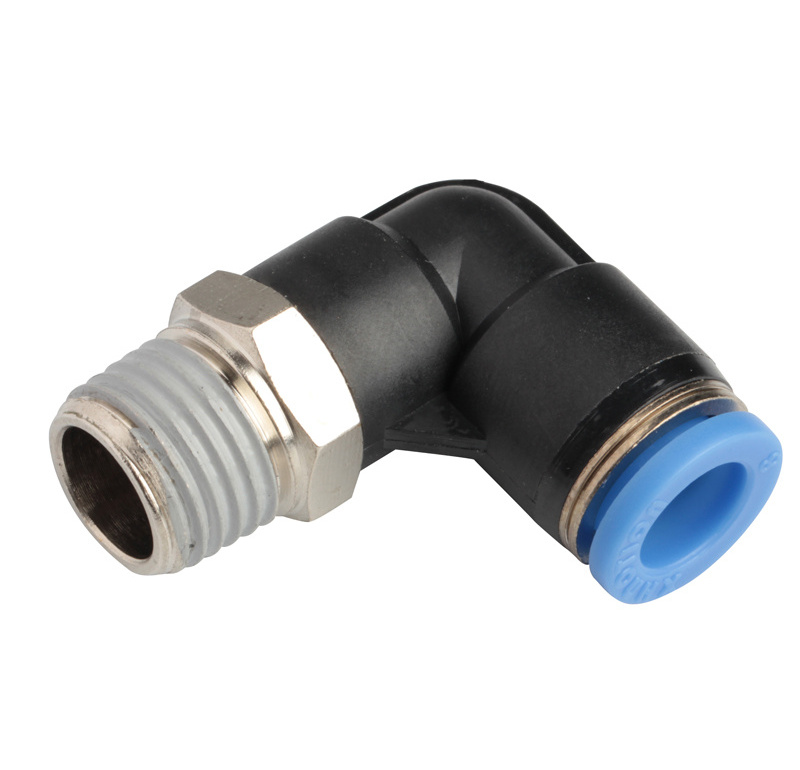

XHnotion Pneumatic Plastic Air Hose Fitting Push in fitting Male Elbow with 1/8'' Thread

XHnotion Pneumatic Plastic Air Hose Fitting Push in fitting Male Elbow with 1/8'' Thread

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.24

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Plastic Push in Fitting

Body Material:: Nickel-Plated Brass

Sleeve:: POM

Tube O.D.:: 4mm - 16mm

Thread:: M5, M6, 1/8, 1/4, 3/8, 1/2(R, G, NPT)

Operating Pressure:: 0 - 150 Psi

Operating Temperature:: 0 - 60℃

Suiatble Tube:: Polyurethane or Nylon tubing

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: XHnotion

Material:: NBR

Product Name:: Plastic Push in Fitting

Body Material:: Nickel-Plated Brass

Sleeve:: POM

Tube O.D.:: 4mm - 16mm

Thread:: M5, M6, 1/8, 1/4, 3/8, 1/2(R, G, NPT)

Operating Pressure:: 0 - 150 Psi

Operating Temperature:: 0 - 60℃

Suiatble Tube:: Polyurethane or Nylon tubing

XHnotion Pneumatic Platic Air Hose Fitting Push in fitting Male Elbow with 1/8'' Thread

Product Description

Product Description

Specifications

Product Name	Plastic Push in Fitting
Model	PL6-01
Material	Nickel-Plated Brass
Type	Straight, Elbow, Bulkhead, Tee, Y, Reducer
Medium	Air
Tubing Material	Polyurethane or Nylon tubing
Tube O.D.	4mm-16mm
Thread	M5, M6, 1/8, 1/4, 3/8, 1/2(R, G, NPT)
Operating Pressure	0 - 150Psi
Operating Temperature	0 - 60℃

Other Models

Model(OD-T)
Tube(Metric)-Thread(R)			Tube(Inch)-Thread(R)		Tube(Inch)-Thread(NPT)
PL4-M5	PL6-03	PL12-01	PL5/32-01	PL3/8-02	PL1/8-U10	PL3/16-N03	PL3/8-N02
PL4-M6	PL8-01	PL12-02	PL5/32-02	PL3/8-03	PL1/8-N01	PL1/4-U10	PL3/8-N03
PL4-01	PL8-02	PL12-03	PL1/4-01	PL3/8-04	PL1/8-N02	PL1/4-N01	PL3/8-N04
PL4-02	PL8-03	PL12-04	PL1/4-02	PL1/2-02	PL5/32-U10	PL1/4-N02	PL1/2-N02
PL4-03	PL8-04	PL14-03	PL1/4-03	PL1/2-03	PL5/32-N01	PL1/4-N03	PL1/2-N03
PL6-M5	PL10-01	PL14-04	PL5/16-01	PL1/2-04	PL5/32-N02	PL5/16-N01	PL1/2-N04
PL6-M6	PL10-02	PL16-03	PL5/16-02		PL3/16-U10	PL5/16-N02
PL6-01	PL10-03	PL16-04	PL5/16-03		PL3/16-N01	PL5/16-N03
PL6-02	PL10-04		PL3/8-01		PL3/16-N02	PL3/8-N01

Features

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard.

Diagram

RoHS Certificate

XHnotion Air Push in Fittings have conformed to RoHS Certificate .

Advantage

1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body. Blue and oval button with black body as regular, Black or gray round button is available, too.
4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
