water tank float level switch controller for submersible pump

Description water tank float level switch controller for submersible pump

The small float switch is usually in a closed metal tube or plastic tube. After one or more reed switch reed switches are installed, one or more hollow and inner floating magnets are fixed on the tube to the rod diameter. Up, and use the buckle to fix the position of the reed, so that the float floats up and down within a certain range, and use the magnet in the float to attract the contact of the reed switch to generate an opening and closing action signal. To control the liquid level.This product is mainly used in household appliances (such as: pure water machine, water dispenser, drink machine, humidifier, dehumidifier, electric water heater, air conditioning equipment, household tap water drinking system, etc.), industrial equipment (such as: air hydraulic press, cold air Machines, drains, lubricating oil systems), gardening equipment, medical equipment, hairdressing equipment, aquaculture and industrial water purification, sewage treatment systems, automatic door control systems and other industries. According to the different needs of different customers and different environments, the products are available in a variety of sizes, a variety of materials, and can also be customized.

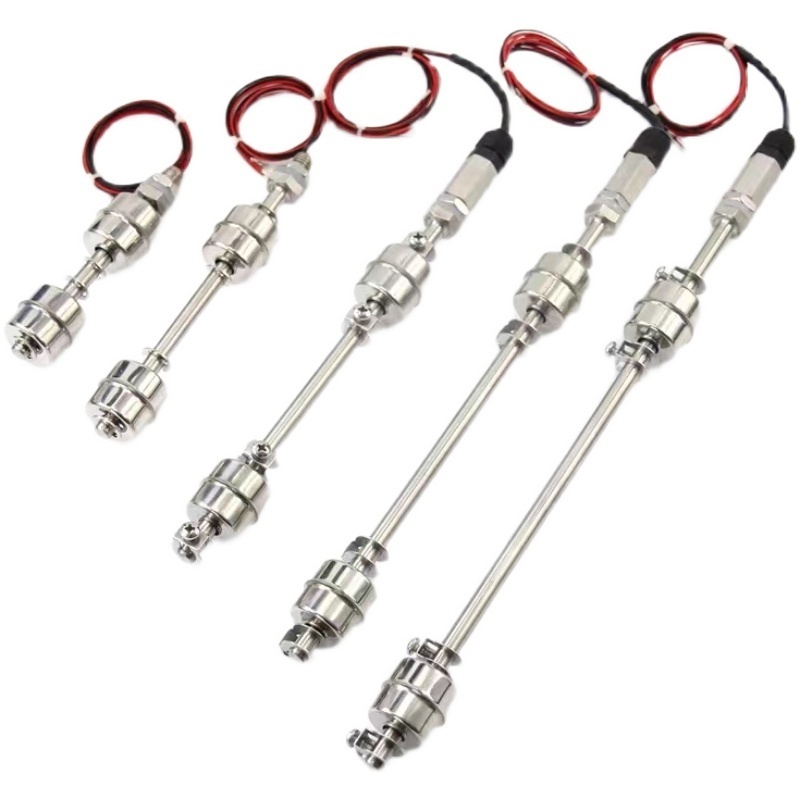

Detailed Images water tank float level switch controller for submersible pump

Specification water tank float level switch controller for submersible pump

1. Material: SUS304
2, contact capacity: 10W/50W SPST
3, the highest voltage: 240VAC / 200VDC
3, the maximum switching current: 0.5A
4, the maximum current: 1A
5, wire specifications: 0.3mm high temperature braided wire
6, the maximum working pressure: 5kg / cm2
7, working temperature: -10 ~ 120 ° C
8. Applicable weight: 0.7
Low voltage means that the float switch can be used on a line with 0~110V DC voltage.
High voltage means that the float switch can be used on AC 0~220V, DC 0~200V lines. High temperature means that the float switch can withstand temperature for 120 degrees for a long time.

Features water tank float level switch controller for submersible pump

1. Multi-point control is available, and the control switch can be customized with the liquid level position.
2. Reed switch does not need to provide separate power supply, reed contact life expectancy is generally up to 2 million times.
3. It can only do multi-point control, which is more than the unit price of other liquid level switches.
4. High reliability, low wiring cost and easy installation.
5. The junction box has complete specifications, including aluminum alloy, plastic, stainless steel, etc material

6. The finished material is made of stainless steel SUS304, which can be used for high temperature and high pressure area
7. This product can be applied to different density, different acid and alkali, different pressure force and temperature liquid.
