Quick Details
-
Warranty:
-
1 Years
-
Loading Capacity:
-
2000kg/2350kg
-
Car size (LxWxH):
-
5000*1850*2050(SUV)/1550(sedan)mm
-
Car weight:
-
2000kg/2350kg
-
Motor power:
-
7.5kW
-
Lifting speed:
-
10-12m/min
-
Drive mode:
-
hydraulic
-
Power supply:
-
380V/50HZ 3 Phase 5 wires
-
Operation Mode:
-
IC card/ key board/ manual
-
Sliding motor power:
-
0.2kW
-
Sliding speed:
-
7.5m/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
PSH4
-
Warranty:
-
1 Years
-
Loading Capacity:
-
2000kg/2350kg
-
Car size (LxWxH):
-
5000*1850*2050(SUV)/1550(sedan)mm
-
Car weight:
-
2000kg/2350kg
-
Motor power:
-
7.5kW
-
Lifting speed:
-
10-12m/min
-
Drive mode:
-
hydraulic
-
Power supply:
-
380V/50HZ 3 Phase 5 wires
-
Operation Mode:
-
IC card/ key board/ manual
-
Sliding motor power:
-
0.2kW
-
Sliding speed:
-
7.5m/min

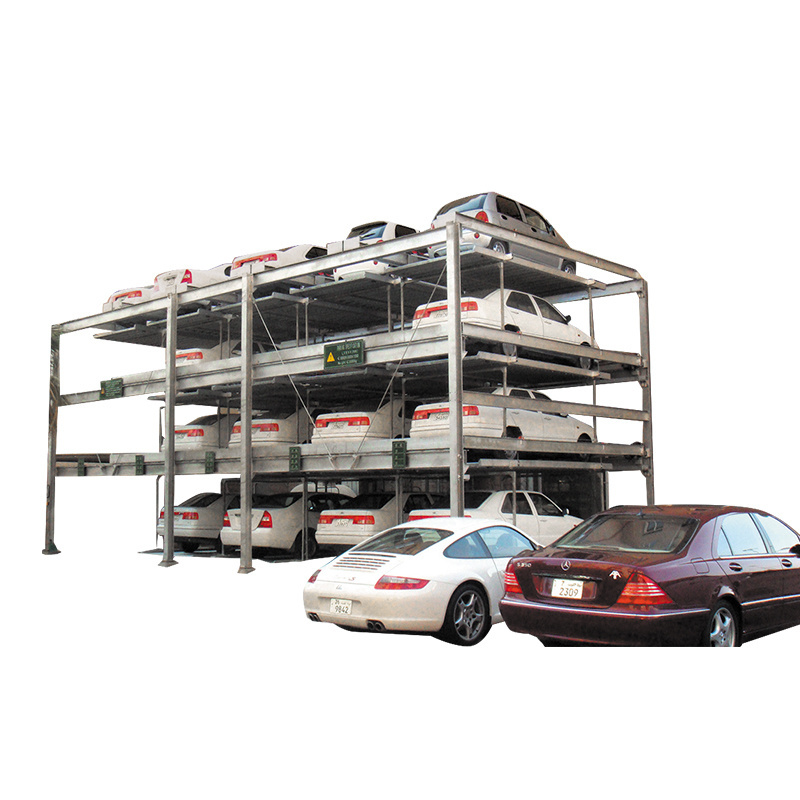

Operation Principle:
The equipment is designed with multi-floor and multi-row. Each floor is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first floor. All the spaces can slide automatically except the spaces in the top floor. When a car is needed to be parked or released, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
