Quick Details
-
Warranty:
-
1 year
-
Type:
-
AHD Mobile DVR
-
Resolution:
-
1080P
-
Video input:
-
8CH 1080P
-
Video output:
-
2xCVBS+1xVGA output
-
Storage:
-
1x4TB HDD/SSD+1x256GB SD
-
UPS:
-
Built-in
-
GPS 3G 4G Wifi:
-
Optional
-
Video Compression Format:
-
H.265
-
Certification:
-
CE/FCC/Rohs/ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FL & OEM
-
Model Number:
-
FTH-DVR-B7
-
Warranty:
-
1 year
-
Type:
-
AHD Mobile DVR
-
Resolution:
-
1080P
-
Video input:
-
8CH 1080P
-
Video output:
-
2xCVBS+1xVGA output
-
Storage:
-
1x4TB HDD/SSD+1x256GB SD
-
UPS:
-
Built-in
-
GPS 3G 4G Wifi:
-
Optional
-
Video Compression Format:
-
H.265
-
Certification:
-
CE/FCC/Rohs/ISO9001
Product Description
Front Panel
1-HDD Lock, it's used for unload hard disk.
Device will power off automatically if power on when HDD lock is open
2-HDD Fixed Screw. Please manually tighten screw after installing hard disk drive, to prevent HDD slip out
3-status Indicator LED. Details as below
Pwr-power Indicator LED, LED light means system has powered on.
GPS-GPS/BD Status indicator light. LED On-positioning success LED FLASH-IN positioning, LED OFF-NO GPS Module.
Hot-hard disk heating LED LED ON-HDD is heating, LED OFF-HDD doesn't open heating. SD-SD card Indicator LED. LED On-card is recording, LED FLASH-CARD exists but not recording,
LED Off-card does not exist
HDD-HDD card Indicator LED LED ON-HDD is recording, LED FLASH-HDD exists but not recording,
LED OFF-HDD does not exist
Rec-video Recording Indicator LED LED ON-IN the recording: ALM-ALARM Indicator LED, LED ON-IN the alarm
Net-network Indicator LED. It changes based on dial-up connection status, details as below:
LED OFF-NO communication module LED INTERMITTENT FLASH-SIM CARD does not exist
LED QUICK FLASH (1: 1)-device is dialing, LED SLOW FLASH (3: 1-server connection is not OK:
LED On-server connection is successful
4-SIM Card and SD Card Slot: (When installation gap towards inside, metal touch spot face down)
5-front audio and video output interface; (Reserved
6-infrared remote control receiving hole, It's used to receive remote controller signal
7-USB Interface It's used to import or export data or upgrade
Status LED will alternate loop flash when device power on, it will quick loop flash when device is upgrading
Built-in UPS, after devce Power of, PWR LED will be continuously on ten more seconds
Back Panel
1-video&Audio Input interface, 1-4channels or 1-8channels, with DC 12V output
2-24 PIN Extension Port, With alarm input&output, serial port etc, More detailed definition see addenda
3-RJ45 Ethernet port, with print serial port, Can only connect 4PIN net cable when connect net
4-power Input interface, Input Voltage DC 8-36V
Red cable connect power positive,
Black cable connect power negative;
Yellow line ACC signal cable.
5,6,7-3G/4G、 WIFI.、 GPS Antenna Port;
8-VGA high definition output port. (Analog output port is standard definition output)
Attention:
Audio/Video analog output port is inside the device 16PIN PANEL port
When net cable directly connect to the device, only can use 4PIN definition cable, otherwise it will lead device dead
Product Features
1.
H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording.
2.
Support one HDD(Max 4TB) and one SD Card (Max 256GB) Storage, completely protect the data from damage.
3.
Watchdog abnormal restart function protection, Better machine and data protection.
4.
Flameout delay recording function, ACC Delay off,can set 24 hours.
5.
On board UPS 8~10 seconds delay power-off for data protection.
6.
Support remote management, voice intercom, fuel monitoring, cut engine remotely function.
7.
Designed with RS232/RS485 and RJ45 peripheral interface.
8.
Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.
9.
8V~36V wide voltage power supply, Overload/ undervoltage/ short circuit protection, low voltage automatic shutdown.
10.
Al-aluminum profile design, small size, fast heat dissiption, dustproof, shockproof.
1080 AHD HDD Mobile DVR Working Diagram
Dongguan Full HD 4 CH 8 channels MDVR 3G/4G Wi-Fi GPS hdd sd card car dvr camera 960p 1080p mobile DVR
Monitor screen
Dongguan Full HD 4 CH 8 channels MDVR 3G/4G Wi-Fi GPS hdd sd card car dvr camera 960p 1080p mobile DVR
Product Advantages
1.The original Haith chip
Further
Video Recorder, each of which uses the original industrial-grade Heise chip, can ensure stable operation in the severe cold and heat environment.
2. Humanized USB Interface
Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.
3. Support screen switching
Supporting reverse screen enlargement, four-way video switching, providing technical support.
4. Wide Voltage Design
Vehicle broadband power supply can work steadily in the range of DC8V-36V voltage.
Products for vehicles
Product Applications:
Bus ,Coach ,School Bus, Truck ,Tanker, Harvester
DVR installed in bus
Dongguan Full HD 4 CH 8 channels MDVR 3G/4G Wi-Fi GPS hdd sd card car dvr camera 960p 1080p mobile DVR
DVR installed in
oil truck
DVR installed in
taxi
DVR installed in
police car
DVR installed in
logistics vehicle
Vehicle Survilliance Solutions
Dongguan Full HD 4 CH 8 channels MDVR 3G/4G Wi-Fi GPS hdd sd card car dvr camera 960p 1080p mobile DVR
Four-channel simultaneous recording, smooth picture quality
Support parallel preview and return visit of different channels under multi-screen splitting
Loop recording, automatic coverage
When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording
3G/4G remote real-time monitoring
Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch
GPS (Beidou) positioning
Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency
Product Paramenters
|
Main processor
|
Hi3521D V100 chipset
|
High performance chipset
|
|
|
||
|
System
|
Language
|
Chinese, English, Russian (customerized)
|
|
|
||
|
|
Operation interface
|
OSD menu
|
|
|
||
|
|
Password security |
User Password and Administrator Password
|
|
|
||
|
CUI
|
Image OSD
|
Can be connected to an external AV display and VGA display, Remocontrol operation setting system parameters
|
|
|
||
|
|
Interface
|
|
|
|
||
|
Audio and video |
Video input
|
4/8-channel video input, 4pin interface, 1.0Vp-p, 750Ω
|
|
|
||
|
|
Video output
|
1 channel AV composite audio and video output, 4pin interface, 1.0Vp-p, 750, 1 channelVGA output
|
|
|
||
|
|
Audio input/output
|
4/8 input, 1 output,4pin interface
|
|
|
||
|
|
Compression Format
|
Encoding format: G726 40KBPS, Sampling rate: 8000 sample bit width, 16bit Sampling points: 320;
|
|
|
||
|
|
Preview
|
1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function
|
|
|
||
|
|
Resolution
|
Support 1080P/960P/720P/D1/HD1/CIF, MAX:8 channels 1080p
|
|
|
||
|
|
Video Quality
|
1-8 levels, 1 is the highest level, 8 is the lowest level.
|
|
|
||
|
|
Video Standard
|
PAL: 100 frames/s, CCIR625 line, 50 games NTSC: 120frames/s, CCIRS25 line,60Games;
1080P:1536Kbps~ 8Mbps, Multi-level image quality optional 720P:1000 Kbps ~ 6Mbps, Multi-level image quality optional Di: 800Kbps ~ 3Mbps, Multi-level image quality optional HD1: 600Kbps ~ 2.5Mbps, Multi-level image quality optional CIF: 256Kbps ~ 1.5Mbps, Multi-level image quality optional |
|
|
||
|
|
Video mode
|
The default: auto recording after power on.
Ignition recording, alarm trigger recording and manual recording are supported. |
|
|
||
|
Videostorage
|
File format
|
H.265
|
|
|
||
|
|
File system
|
Special file system or FAT32
|
|
|
||
|
|
SD CARD
|
Support 1xHard Disk( Max 4TB) and 2xSD card(Max 256GB), cyclic recording
|
|
|
||
|
|
Upgrade method
|
Support USB flash disk updating 1 SD card upgrade
|
|
|
||
|
|
Video playback
|
Search video and video files by recording time, recording mode, etc.
Supports up to 4 channels of synchronized playback, pauses, fast forwards, rewinds, supports 2, 4, 8, 16 times faster forward of backward |
|
|
||
|
Alarm
|
Alarm input
|
8-channel alarm input with alarm linkage function
|
|
|
||
|
|
Alarm Output
|
2-Channel alarm output
|
|
|
||
|
|
G-Sensor
|
Support built-in G-SENSOR acceleration sensor, alarm linkage trigger
|
|
|
||
|
Port
|
RS232
|
2*RS232
|
|
|
||
|
|
RS485
|
1*RS485
|
|
|
||
|
|
RJ45
|
1*RJ45
|
|
|
||
|
|
USB
|
1*USB
|
|
|
||
|
Module
|
3G(Optional)
|
Built-in 3G module (WCDMA/EVDO/TD-SCDMA)
|
|
|
||
|
|
4G(Optional)
|
Built-in 4G module (TD-LTE/FDD-LTE)
|
|
|
||
|
|
WIFI(Optional)
|
Built-in WIFI module (2.4G)
|
|
|
||
|
|
GPS(Optional)
|
Support Dual Module GPS/BD
|
|
|
||
|
Software
|
CMSV6 Client
|
4G remote real-time monitoring GPS positioning, remot management, recording, playback,
intercom, monitoring, track playback alarm processing. |
|
|
||
|
|
Mobile phone terminal
|
Remote real-time monitoring, GPS positioning. recording playback, intercom, monitoring,and alarm prompts are available anytime
and anywhere. |
|
|
||
|
|
PC playback
|
Video playback track playback and analysis
|
|
|
||
|
Power
|
Power management
|
Wide voltagepower supply Overload 1 undervoltage I shor circuit protection, low voltage automatic shutdown, Support timer switch,
delay shutdown function. |
|
|
||
|
|
Input voltage
|
DC:+8V ~ +36V
|
|
|
||
|
|
output voltage
|
+12V@1A, +5V@1A
|
|
|
||
|
Working environment
|
Temperature
|
-20'C to +70"C
|
|
|
||
|
|
Humidity
|
20% to 80%
|
|
|
||
|
Size
|
Machine
|
200mmx187mmx62mm
|
|
|
||

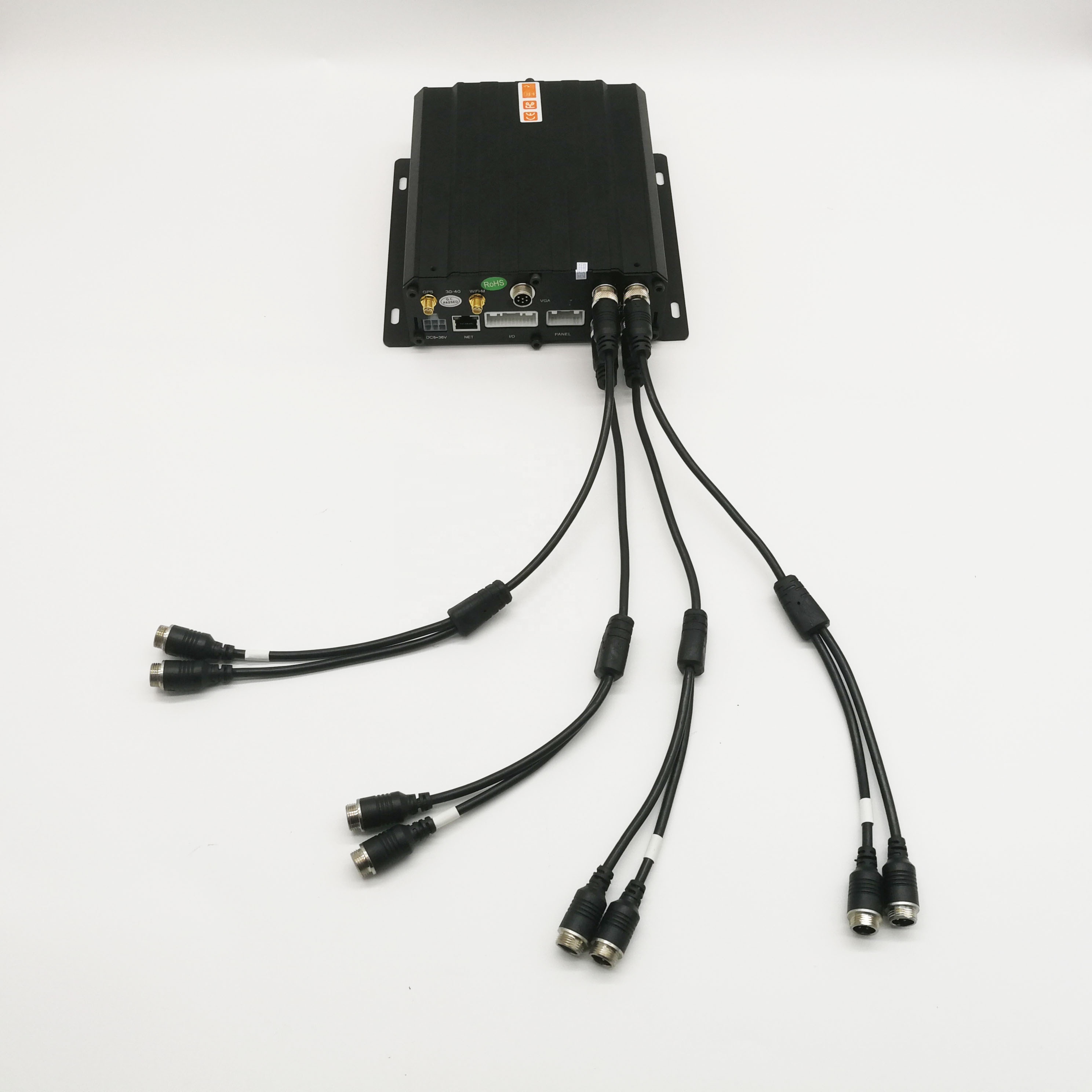

MDVR and accessories
Dongguan Full HD 4 CH 8 channels MDVR 3G/4G Wi-Fi GPS hdd sd card car dvr camera 960p 1080p mobile DVR
