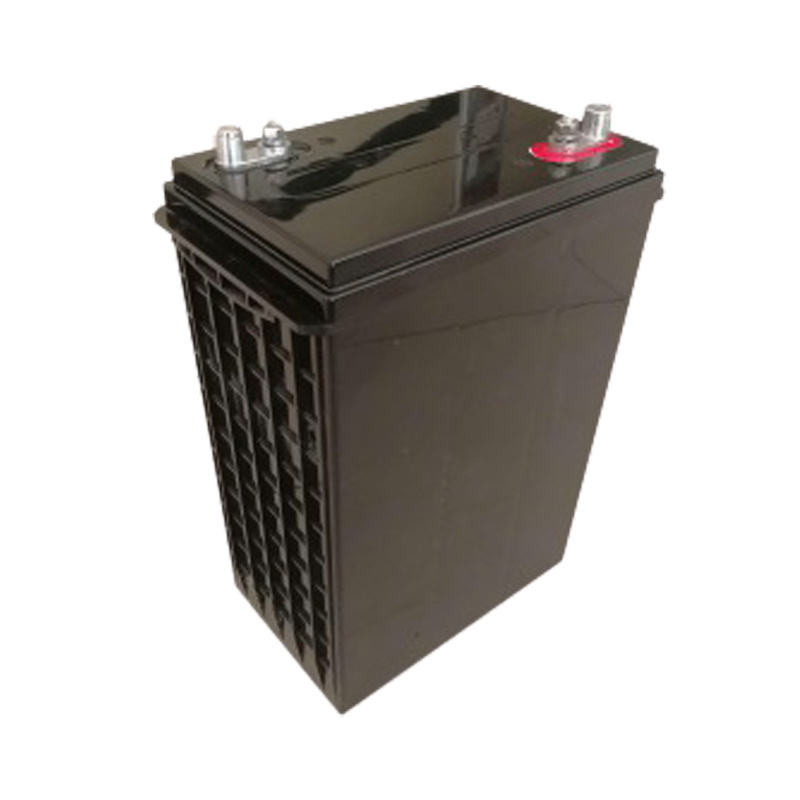

VELA  deep cycle battery for solar power system LFP6400D 6v 400Ah
VELA  deep cycle battery for solar power system LFP6400D 6v 400Ah

VELA deep cycle battery for solar power system LFP6400D 6v 400Ah

FOB Reference Price: Get Latest Price
≥100 Pieces
US $220
≥1000 Pieces
US $170
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
VELA
Model Number:
LFP6400D
Battery Size:
295*178*405*408 mm
Place of Origin:
Guangdong, China
Weight:
56 kg
Sealed Type:
Sealed
Maintenance Type:
Free
Voltage:
6v
Size:
295*178*405*408 mm
Type:
VRLA battery
Color:
black
Design life:
20 Years at 25℃
Warranty:
2 YEAR
Usage:
UPS/solar system

Quick Details

Storage Type:
chemist
Anode Material:
LFP
Application:
BOATS, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Brand Name:
VELA
Model Number:
LFP6400D
Battery Size:
295*178*405*408 mm
Place of Origin:
Guangdong, China
Weight:
56 kg
Sealed Type:
Sealed
Maintenance Type:
Free
Voltage:
6v
Size:
295*178*405*408 mm
Type:
VRLA battery
Color:
black
Design life:
20 Years at 25℃
Warranty:
2 YEAR
Usage:
UPS/solar system
Battery type
AGM deep cycle
Model
LFP6400
Voltage
6V
Capacity
400 Ah
Design life
10 Years at 25℃
Dimension
295*178*405*408 mm
Terminal
T11
Terminal position
B
Features
-Spill prevention
-Sealing structure and maintenance free
-Low Self-discharge
-Lower internal resistance
-Exceptional Deep Discharge Recovery
-Long Service Life
-Environmentally friendly
-Good quality and high reliability
Deep cycle battery, agm battery, agm deep cycle battery, 12v deep cycle battery, small deep cycle battery, 6 volt deep cycle battery, deep cycle battery solar, AGM solar battery

Battery Discharging Characteristics:

The discharging capacity of the battery depends on the discharge rate being used and ambient temperature. The rated capacity of a battery is reduced when it is discharged at a value of current that exceeds its 10-hours or 20-hours rate.

Open Circuit Voltage and Residual Capacity

Residual capacity can be estimated by measuring the open circuit voltage as the picture.

Effect of Temperature on Capacity

At a higher temperature, the capacity of battery increases and conversely at a lower temperature, the capacity of battery decreases. The pictures shows the effects of different temperature in relation to battery capacity.

Self-discharge Characteristics

The time for the capacity to decrease to 50% of nominal capacity at each temperature during storage. If the storage temperature is known, the graph may be used for finding the most useful recommended refresh charge intervals.

Effect of Temperature on Charging Voltage

As temperature rises, electrochemical activity in the battery increases. Similarly, as temperature falls, electrochemical activity decreases. Therefore, as temperature rises, charging voltage should be reduced to prevent overcharge, as temperature falls, charging voltage should be increased to avoid undercharge. In general, to assure optimum service life, use of a temperature compensated charger is recommended. The picture shows the relationship between temperatures and charging voltages in both cyclic and standby applications.

Constant Voltage Charging

Standby service: 2.23-2.30 vpc at 20oC(68oF) to 25oC(77oF) Cycle service: 2.40-2.50 vpc at 20oC(68oF) to 25oC(77oF) It is suggested that the initial current be set within 0.4CAmps. The charging current is decreased to approx 0.5-4mA/Ah under charging voltage 2.30 vpc, and 3-10mA/Ah under charging voltage 2.40vpc when the battery is fully charged at 20oC(68oF) to 25oC(77oF).
Note: it is necessary to ensure that the voltage is correctly set. The charging voltage set too high will increase the corrosion of the positive plates causing loss of capacity and ultimately shortening the life of the battery.

Cyclic Life

Giving due consideration to the above factors, the actual life of a battery in cycle service is dependent on the depth of
discharge of each cycle. The greater the depth of discharge of each cycle, the less the number of cycles available from the battery.

Standby Life

The estimated life under float service of FP type is 7 years at 20oC/68oF; LFP type is 12 years at 20oC/68oF; CFP type is more than 20 years at 20oC/68oF. The float service life is affected by the factors listed above and the number of discharging, the depth of discharging the battery suffers during its life time. The more discharges suffered and the deeper the discharges, the shorter the battery life. The higher the temperature, the shorter the battery life. If the battery temperature remains at an elevated level for an extended period of time, the expected life is reduced by 50% for each 8 to 10oC of constant temperature
above 20oC/68oF.

Advantage

✔Nonspillable

✔Seal and maintenance free

✔High quality and hiah reliability

✔Exceptional deep discharge recovery

✔Low self discharge

✔Low service life

✔Solid copper terminals

✔Computer-aided design and manufacturing
