Ribbon mixer heating type is made of double U barrel. The inner wall is all stainless steel. Heat conducting oil or water is used
as heating medium. The temperature standard is 50-150 degrees, the highest can reach 300 degrees. The heat is uniform and convenient to control.
Dry powder ribbon mixer machine electric charcoal powder detergent powder mixer blender. Dry powder ribbon mixer machine electric charcoal powder detergent powder mixer blender washing
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
350
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA chemical machinery
-
Voltage:
-
110V/220V/380V/440V
-
Power (kW):
-
7.5 kW
-
Product name:
-
Powder Mixer
-
After-sales Service Provided:
-
Free Spare Parts
-
Name:
-
Ribbon Mixer Blender
-
Heating method:
-
Electric Heating
-
Application scope:
-
Powder Product
-
Capacity:
-
250-10000l
-
Mixing speed:
-
33r/min
-
Keyword:
-
ribbon mixer machine
-
Usage:
-
Mixing Dry Powder
Quick Details
-
Barrel Volume (L):
-
1000 L
-
Max. Loading Volume (L):
-
3500 L
-
Range of Spindle Speed(r.p.m):
-
30 - 40 r.p.m
-
Max. Loading Capacity:
-
350
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA chemical machinery
-
Voltage:
-
110V/220V/380V/440V
-
Power (kW):
-
7.5 kW
-
Product name:
-
Powder Mixer
-
After-sales Service Provided:
-
Free Spare Parts
-
Name:
-
Ribbon Mixer Blender
-
Heating method:
-
Electric Heating
-
Application scope:
-
Powder Product
-
Capacity:
-
250-10000l
-
Mixing speed:
-
33r/min
-
Keyword:
-
ribbon mixer machine
-
Usage:
-
Mixing Dry Powder
Product Description
2000L Chemical Horizontal ribbon mixer dry powder ribbon blender mixing machine 100 kg stainless steel double helical mixer
Horizontal ribbon mixer is the introduction of foreign advanced technology, the factory professional and technical personnel to digest the innovative design results, is a new type of efficient mixing equipment.
The internal barrel surface is smoothed by polishing and equipped with center shaft and double S-shaped paddle. Mixing materials process is fast and homogeneous, which can be finished within 5-10 minutes for each batch. Mixture of special materials need to be confirmed by users.
Horizontal ribbon blender#mixer washing powder mixing machine ribbon mixer.
ribbon blender#mixer washing powder mixing machine ribbon mixer
Using Range
Widely used in chemical industry, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder, health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials, rare earth, plastic glass, new materials, nuclear materials and other industries . Horizontal ribbon blender#mixer washing powder mixing machine 2 ton ribbon mixer
Widely used in chemical industry, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder, health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials, rare earth, plastic glass, new materials, nuclear materials and other industries . Horizontal ribbon blender#mixer washing powder mixing machine 2 ton ribbon mixer
Main Features
1) Horizontal tank body, need small space but more capacity.
1) Horizontal tank body, need small space but more capacity.
2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6) Air cylinder help the top cover easy open.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7) Heating,cooling function can be realized.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
8) Customized ribbon blender available.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
9) PLC controlled,equipped with mettler toledo weigh modular.
Ribbon auger mixer detergent powder horizontal ribbon mixer dry powder
Specifications Configuration
1) Major sections: barrel, ribbon agitators, feeding parts, discharging part and driven unit
1) Major sections: barrel, ribbon agitators, feeding parts, discharging part and driven unit
2) Sizes: available from 200L to 10000L.
Ribbon auger mixer detergent powder horizontal ribbon mixer
3) Material: Carbon Steel, Stainless Steel 201,304,316L.
4) Discharge: Flap valve, butterfly valve, slide gate valve, ball valve, manually or pneumatically.
5) Speed:Constant speed rotation,also controls such as variable frequency drives, motor starters and operator stations are available.
6)Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required,
7)Spray :nozzles for liquid introduction. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
8)Open cover: pneumatic, manual. Horizontal ribbon blender#mixer washing powder mixing machine
4) Discharge: Flap valve, butterfly valve, slide gate valve, ball valve, manually or pneumatically.
5) Speed:Constant speed rotation,also controls such as variable frequency drives, motor starters and operator stations are available.
6)Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required,
7)Spray :nozzles for liquid introduction. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
8)Open cover: pneumatic, manual. Horizontal ribbon blender#mixer washing powder mixing machine
Detailed Images
Horizontal Ribbon Mixer Heating Function

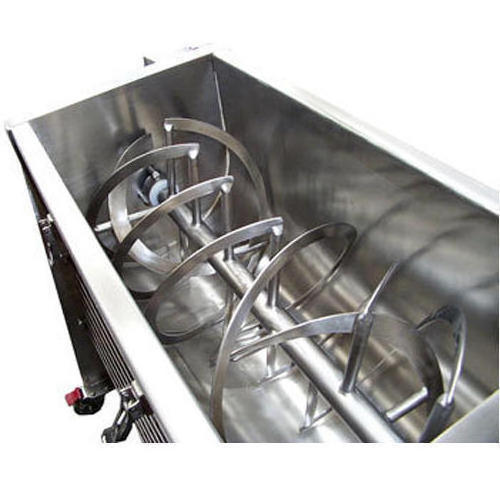

Double ribbon structure
Stainless steel or carbon steel material.
The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
Brand motor
The motor and reducer of famous factory are selected ，and the strength is large
Bearing
Gland packing, a
void dust infiltration，all stainless steel durable
Outlet
The manual or pneumatic discharge port can be made, according to the requirements of the customer
Product Paramenters
|
Model
|
500L
|
1000L
|
2000L
|
4000L
|
6000L
|
8000L
|
|||||
|
Volume / L
|
500
|
1000
|
2000
|
4000
|
6000
|
8000
|
|||||
|
Motor Power / KW
|
5.5
|
7.5
|
15
|
22
|
37
|
45
|
|||||
|
Speed / r/m
|
41
|
33
|
33
|
27
|
27
|
23
|
|||||
|
Dimension / m
|
1.9*0.7.1.4
|
3*0.8*1.5
|
3.3*1.4*1.7
|
3.6*1.4*1.7
|
3.8*1.7*1.8
|
4.5*1.8*1.9
|
|||||
|
PlateThickness /mm
|
4
|
4
|
6
|
8
|
8
|
8
|
|||||
|
Material
|
Contact material SUS 304, other material carbon steel. SUS201, 316 is available
|
|
|
|
|
|
|||||
Related Products
Company Introduction
Certifications
Our Service
FAQ
1. How is the quality of your products?
Our products are prohibited according to national and international standard, and we take a test on every machine before delivery.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer,
dry powder ribbon mixer horizontal ribbon mixer
2.
Guarantee
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.
dry powder ribbon mixer horizontal ribbon mixer ribbon mixer,
dry powder ribbon mixer horizontal ribbon mixer
3.How about price?
We have our own factory and can give you the lowest price,besides, we have a policy that "for saving time and
absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity.
4. Can I customize?
Most of our machine can be customized, so you can tell your kinds of requirement before ordering. We will try to meet yours requirement.
Ribbon auger mixer detergent powder horizontal ribbon mixer dry powder
