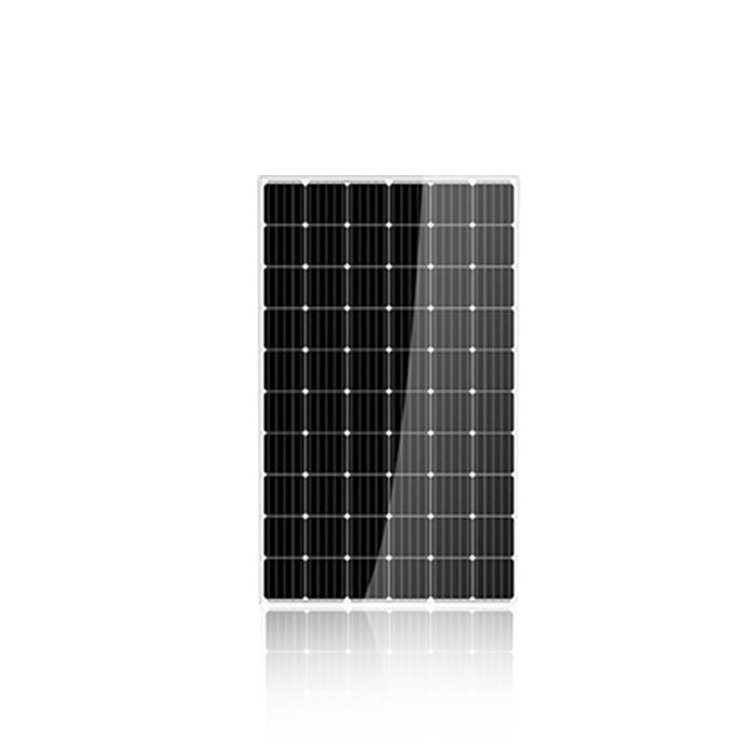

ESG Mono 130w150w 180w Small Used 200w 300w 300 Watt Flexible Poly Powerful Solar Panels

ESG Mono 130w150w 180w Small Used 200w 300w 300 Watt Flexible Poly Powerful Solar Panels

FOB Reference Price: Get Latest Price

≥1 Pieces

US $30.8

≥150 Pieces

US $29.4

≥1100 Pieces

US $28

≥1800 Pieces

US $26.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 3

Brand Name:: ESG

Model Number:: 100W

Place of Origin:: Guangdong, China

Panel Dimensions:: 1015*515*30mm

Packing:: 2PCS/CTN

Keyword:: China manufacture 100W200W230W mono solar panel

Frame:: Aluminum

Keywords:: China manufacture 100W200W230W mono solar panel

OEM order:: Acceptable

Junction Box(protection degree):: IP65

Key word:: China manufacture 100W200W230W mono solar panel

Voltage:: 18V

Product name:: China manufacture 100W200W230W mono solar panel

Certificate:: ce

Quick Details

Cell size:: 158.75mmx158.75mm

Type:: Factory cheap price Polycrystalline solar panel 100w, Standard Solar Panel

Panel Efficiency:: 80

Warranty:: 3

Brand Name:: ESG

Model Number:: 100W

Place of Origin:: Guangdong, China

Panel Dimensions:: 1015*515*30mm

Packing:: 2PCS/CTN

Keyword:: China manufacture 100W200W230W mono solar panel

Frame:: Aluminum

Keywords:: China manufacture 100W200W230W mono solar panel

OEM order:: Acceptable

Junction Box(protection degree):: IP65

Key word:: China manufacture 100W200W230W mono solar panel

Voltage:: 18V

Product name:: China manufacture 100W200W230W mono solar panel

Certificate:: ce

Why Choose Us？

Products Description

ESG 5W-300WPV Poly-Crystalline Solar Module & Mono -

Crystalline Solar Module

Model	ESG5W	ESG10W	ESG20W	ESG30W	ESG40W	ESG50W
Peak Power Watts(Pmax/W)	5W	10W	20W	30W	40W	50W
Maximum Power Voltage(Vmp)[V]	18.57	18.57	18.82	17.8	17.8	17.8
Open Circuit Voltage(Voc) [V]	22.64	22.64	22.58	22.2	22.3	22.4
Maximum Power Current(Imp) [A]	0.27	0.54	1.08	1.686	2.248	2.809
Short Circuit Current(Isc) [A]	0.29	0.58	1.19	1.801	2.392	3.017
Power Output Tolerance[W]	0~+3%

Model	ESG60W	ESG70W	ESG80W	ESG90W	ESG100W	ESG110W
Peak Power Watts(Pmax/W)	60W	70W	80W	90W	100W	110W
Maximum Power Voltage(Vmp)[V]	17.6	17.79	17.79	18.6	18.6	18.6
Open Circuit Voltage(Voc) [V]	22	21.75	21.75	22.3	22.6	22.6
Maximum Power Current(Imp) [A]	3.41	5.43	4.78	4.89	5.43	5.91
Short Circuit Current(Isc) [A]	3.685	5.01	5.01	5.28	5.37	6.39
Power Output Tolerance[W]	0~+3%

Model	ESG200W	ESG300W	ESG400W	ESG500W
Peak Power Watts(Pmax/W)	200W	300W	400W	500W
Maximum Power Voltage(Vmp)[V]	38.4	37.1	41.1	43.7
Open Circuit Voltage(Voc) [V]	45.5	36.72	49.3	50.7
Maximum Power Current(Imp) [A]	5.21	6.73	9.49	10.50
Short Circuit Current(Isc) [A]	5.64	10.54	10.12	10.67
Power Output Tolerance[W]	0~+3%

GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability

Specifications

1.Solar panels: from 5W to 310W
2.Solar panel warranty: output power is not less than 90% within 10 years and more than 80% within 25 years.
3.Our solar modules have passed many certificates like TUV, CE, ROHS, ISO, IECetc.
4.Cost of photovoltaic modules: We can get best prices by giving large orders to solar photovoltaic cells and raw material
suppliers .
5.Solar cell technology: either Mono-Si or Poly-Si is available.
6.Solar panel efficiency: not less than 15%
7.Power torlerance of PV modules: ± 3%
8.Overall quality of our soalr panels: Tidy joined, anodized corners and aluminum frames make our photovoltaic modules more time
consuming.
9.Back sheet: With excellent strength, wether resistance, UV resistance and moisture barrier properties, the backing sheet is
used.
to protect solar cells of photovoltaic modules.
10.Reasonable mumbers of all temperature coefficients.

Our Factory

Certifications

Our Exhibition

Packing & Transport

Our Team

FAQ

Q1:What’s A grade wholesale price payment terms?
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,M oneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
