full color flexible transparent led film panel flexible led panel film light glass flexible led display panel film

full color flexible transparent led film panel flexible led panel film light glass flexible led display panel film

FOB Reference Price: Get Latest Price

≥1 Square meters

US $1673

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Ledy

Light Source:: LED Matrix

Input Voltage:: 110 V

Working Temperature:: 0 ℃

Working Lifetime:: 100000 hours

Warranty:: 1 Years

Installation Way:: Pasted

Model:: P8

size:: 1000mmX400mm

Quick Details

Type:: Screen

Model Number:: P8

Place of Origin:: China

Brand Name:: Ledy

Light Source:: LED Matrix

Input Voltage:: 110 V

Working Temperature:: 0 ℃

Working Lifetime:: 100000 hours

Warranty:: 1 Years

Installation Way:: Pasted

Model:: P8

size:: 1000mmX400mm

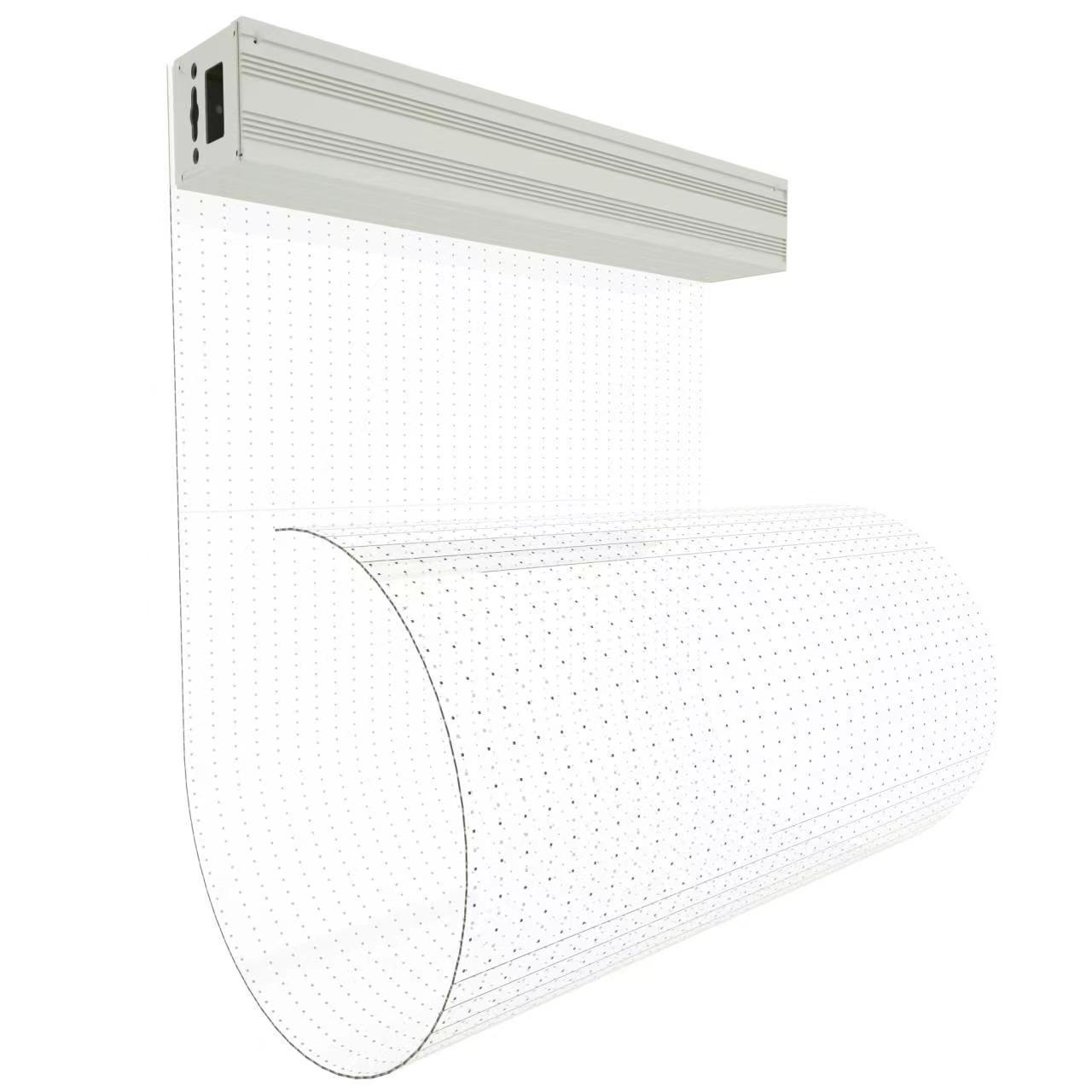

Flexible Transparent LED Screen

Features

1. LED
2. High Transmittance
3. Easy to install
4. AB version
5. Flexible
6. Light and Thin
7. UV Resistance
8. Flame Retardant

Transparent LED display is a new type of display technology with high transparency, vivid colors and high brightness. In stores, transparent LED displays can be applied to store glass windows to attract customers' attention and improve the brand image of the store.We propose a transparent LED display in the store glass window application scheme. The solution uses transparent LED displays installed on store glass windows to facilitate stores to display advertising messages and attract customers' attention without taking up large areas of space.

Application

Parameters
Model	P6.25	P8	P10	P15	P20
Module size (mm)	1000*400	1000*400	1000*400	990*390	1000*400
LED light	REE1515	REE1515	REE1515	REE2121	REE2121
Pixel composition	R1G1B1	R1G1B1	R1G1B1	R1G1B1	R1G1B1
Pixel spacing (mm)	6.25*6.25	8*8	10*10	15*15	20*20
Module pixel	160*64=10240	125*50=6250	100*40=4000	66*26=1716	50*20=1000
Pixel/m2	25600	16500	10000	4356	2500
Brightness	2000/4000	2000/4000	2000/4000	2000/4000	2000/4000
Permeability	90%	92%	94%	94%	95%
Angle of view °	160	160	160	160	160
Input voltage	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz	AC110-240V50/ 60Hz
Peak power	600w/㎡	600w/㎡	600w/㎡	600w/㎡	600w/㎡
Average power	200w/㎡	200w/㎡	200w/㎡	200w/㎡	200w/㎡
Work environment	Temperature - 20~55 Humidity 10-90%	Temperature - 20~55 Humidity 10-90%	Temperature - 20~55 Humidity 10-90%	Temperature - 20~55 Humidity 10-90%	Temperature - 20~55 Humidity 10-90%
Weight	1.3kg	1.3kg	1.3kg	1.3kg	1.3kg
Thickness	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Drive mode	static state	static state	static state	static state	static state
Control system	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight	Nova/Colorlight
Typical value of life	100000H	100000H	100000H	100000H	100000H
Grayscale level	16bit	16bit	16bit	16bit	16bit
Refresh rate	3840 Hz	3840 Hz	3840Hz	3840 Hz	3840 Hz

Delivery time
5 days after payment

Fast Shipping: We cooperate with DHL, Fedex, EMS, TNT, UPS , etc, and provide other methods to deliver our products all over the world safely and quickly.Good Warranty: We provide products and services of 2years warranty.

Zhengzhou Ledy Optical-Electrical Technology Co., Ltd.

is one high-tech company, located in Zhengzhou, engaged in researching, developing, producing and selling Flexible Transparent LED Screen . Ledy owns 3,000 square meters factory, which includes 500 square meters of advanced modern offices and 2,500 square meters industrial workshops. We own more than 100 pieces of equipment and more than 200 employees, including 26 middle and senior designers and programmers and more than 100 skilled workers. Customized Projector is also acceptable.We are committed to our customers by providing smart and innovation products, with fast and genuine services.
