- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
55*46*49cm
-
Weight (KG):
-
45
-
Power (kW):
-
0.37
-
Weight:
-
45kg
-
After-sales Service Provided:
-
No overseas service provided
-
key words:
-
Universal tool cutter grinder
-
speed:
-
5300rpm
-
Grinding wheel:
-
100*50*20
-
standard grinding wheel:
-
SDC(for crbide)
-
Certification:
-
CE Certificated, CE ISO
-
Users:
-
everyone
-
Power Source:
-
Electricity
-
Model Number:
-
MR-20
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
55*46*49cm
-
Weight (KG):
-
45
-
Power (kW):
-
0.37
-
Weight:
-
45kg
-
After-sales Service Provided:
-
No overseas service provided
-
key words:
-
Universal tool cutter grinder
-
speed:
-
5300rpm
-
Grinding wheel:
-
100*50*20
-
standard grinding wheel:
-
SDC(for crbide)
-
Certification:
-
CE Certificated, CE ISO
-
Users:
-
everyone
-
Power Source:
-
Electricity
-
Model Number:
-
MR-20

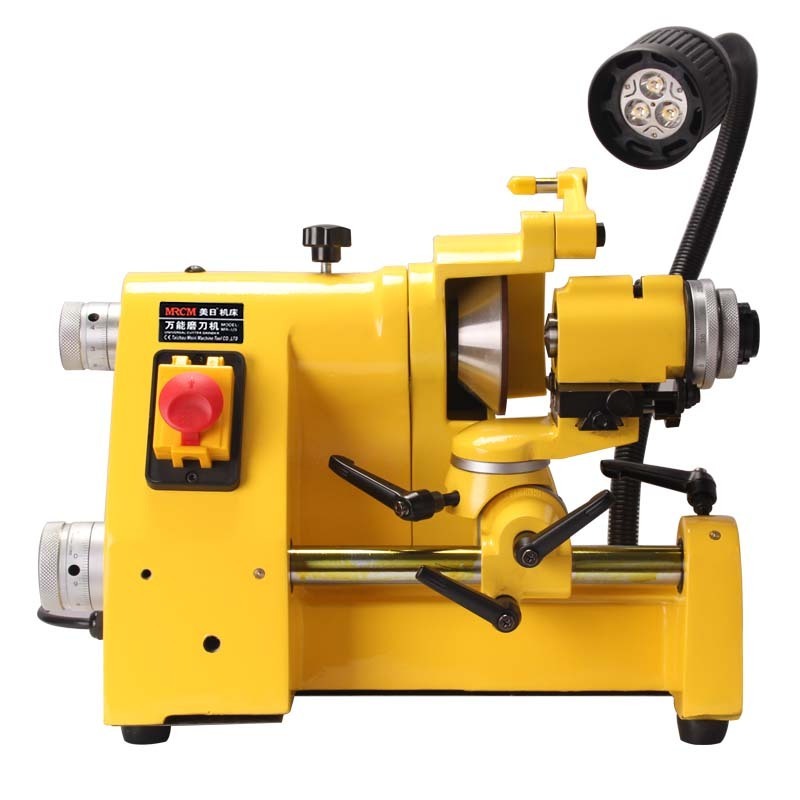

1. For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.
2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the optional attachment to the index head without any complex setup.
2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 or 100 rotation is allowed for grinding End Mills,Twist Drill,Lathe Tools, only replace the optional attachment to the index head without any complex setup.
parameter
|
Model
|
MR-U3
|
|
Max. collet capacity
|
Φ16 mm
|
|
Max. grinding dia.
|
Φ25 mm
|
|
Longitudinal traver of index head carrier
|
140mm
|
|
Longitudinal adjustment trave of index head carrier
|
180mm
|
|
Spindle and wheel longltudinal adjustment travel
|
600mm
|
|
Taper angle range
|
0~ 180 (degree)
|
|
Relief angle range
|
0~ 45 (degree)
|
|
Negative angle range
|
0~ 25 (degree) |
|
Motor
|
1/3HP 220V/380V 50HZ |
|
Grinding spindle
|
5200rpm
|
|
Grinding wheel
|
Φ100×50×Φ20
|
|
Dimension
|
55×46×49cm
|
|
Weight
|
60KG
|
|
Standard Equipment
|
5 collets: Φ4, Φ 6, Φ 8, Φ 10, Φ 12
|
|
|
White corundum grinding wheel ×1
|
|
|
Resin wheel×1
|
|
Option Equipment
|
Belt×1
|
|
|
Diamond pen×1
|
|
|
Twist drill grinding attachment×1
|
|
|
End mill grinding attachment×1
|
|
|
Lathe tools grinding attachment×1
|
|
|
Eleven piece collets: Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18
|
Why Choose
MRCM
1. Supply you top quality products with
Competitive Price
under the same quality level, different products according to your different market demands.
2.
Strictly Control
the whole production process and guarantee punctual delivery, Test each of our products one by one before packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale Service. We're not just working partners, but also
Friends and Family
.
4. When you come to our
Factory
, we will try our best to supply you all services to make you feel like at home.
Good Reviews
WE HAVE MORE ......
PACKAGE PHOTO
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the
price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the
price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
