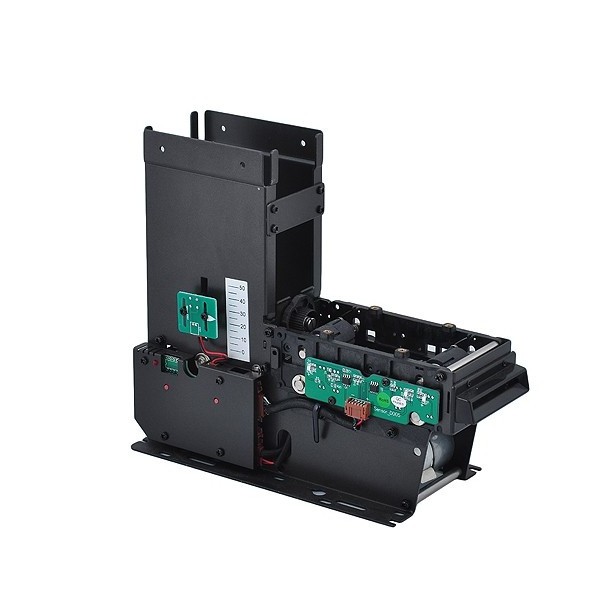

PT-F1-1XXX series of card issuing machine is a high-performance card dispensing/collecting device, which can automatically dispense/collect cards and tickets and to/from customers according to device instructions. Mainly applicable to parking lot management systems, highway gates, self-service toll collection systems, self-service card vending terminals, bank cards management system, etc
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
prova
-
Name:
-
Parking Ticket System enter control card dispenser
-
Product Type:
-
Card Vending Machine
-
Card standard:
-
IC Card:ISO7816, RFID Card:ISO14443-A/B
-
Card thickness:
-
0.2-1.2mm
-
stacker capability:
-
185pcs
-
Communication:
-
RS-232/TTL
-
Power supply:
-
DC 24V+/-5%
-
Certification:
-
CE
-
Dimenssion(LxWxH):
-
296*100*226
-
Weight:
-
Approx. 1.6kg
Quick Details
-
Dimension:
-
296*100*226
-
After-sales Service Provided:
-
Video technical support, Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
prova
-
Name:
-
Parking Ticket System enter control card dispenser
-
Product Type:
-
Card Vending Machine
-
Card standard:
-
IC Card:ISO7816, RFID Card:ISO14443-A/B
-
Card thickness:
-
0.2-1.2mm
-
stacker capability:
-
185pcs
-
Communication:
-
RS-232/TTL
-
Power supply:
-
DC 24V+/-5%
-
Certification:
-
CE
-
Dimenssion(LxWxH):
-
296*100*226
-
Weight:
-
Approx. 1.6kg
Product Description
Products Description
* The unique rubbing wheel design can accurately issue various embossed cards.
* Convenient, simple, stable and accurate adjustment and issuance of cards of various thicknesses.
* The card issuance and card recycling functions are realized with the shortest size, effectively saving cabinet space.
* The back-end recycling card box is designed to facilitate card management.
* The simple recycling channel design can meet the needs of users with large recycling volumes.
* It has multiple sensor detections such as recycle box full, card box pre-empty, card box empty, card location, etc., which can accurately determine the location and status of the card Prompt function.
* The scientific card transfer wheel design can automatically avoid slipping caused by dust accumulation.
* The use of high-strength wear-resistant plastic channels reduces the risk of metal shielding and improves the read and write success rate of the RF card.
* Multi-level sensor circuit protection to prevent light interference to the sensor
* Convenient, simple, stable and accurate adjustment and issuance of cards of various thicknesses.
* The card issuance and card recycling functions are realized with the shortest size, effectively saving cabinet space.
* The back-end recycling card box is designed to facilitate card management.
* The simple recycling channel design can meet the needs of users with large recycling volumes.
* It has multiple sensor detections such as recycle box full, card box pre-empty, card box empty, card location, etc., which can accurately determine the location and status of the card Prompt function.
* The scientific card transfer wheel design can automatically avoid slipping caused by dust accumulation.
* The use of high-strength wear-resistant plastic channels reduces the risk of metal shielding and improves the read and write success rate of the RF card.
* Multi-level sensor circuit protection to prevent light interference to the sensor
Technical Features:
■ Support card
1. Card size: width: 55 mm, length: 86 mm
2. Thickness: 0.2mm--1.2mm (factory standard 0.8mm)
■ Communication method
RS232 / TTL optional
(RS232 supports multi-machine communication, the factory address defaults to 00)
■ Working conditions:Working voltage: DC24V±5%
Quiescent current: less than 200mA
Maximum working current: 2.5A
Default baud rate: 9600 bits per second
■ Card stacker load Standard 0.76mm thickness non-embossed card loading capacity: 155 pcs
Embossed card loading capacity: 100 pcs
■ Recycling bin capacity Standard card capacity is 25(Customizable recycling channel for unlimited card collection)
■ Life Issuing life: ＞1,000,000 times
■ Environmental conditions
Working temperature/humidity: -10℃--60℃/0-90% (no condensation)
Storage temperature/humidity: -30℃—70℃/0—90% (no condensation)
■ Net Weight: Approx. 1.6KG
* Package dimensions:Single packaging box length×width×height (mm): 495 × 275 × 290
■ Support card
1. Card size: width: 55 mm, length: 86 mm
2. Thickness: 0.2mm--1.2mm (factory standard 0.8mm)
■ Communication method
RS232 / TTL optional
(RS232 supports multi-machine communication, the factory address defaults to 00)
■ Working conditions:Working voltage: DC24V±5%
Quiescent current: less than 200mA
Maximum working current: 2.5A
Default baud rate: 9600 bits per second
■ Card stacker load Standard 0.76mm thickness non-embossed card loading capacity: 155 pcs
Embossed card loading capacity: 100 pcs
■ Recycling bin capacity Standard card capacity is 25(Customizable recycling channel for unlimited card collection)
■ Life Issuing life: ＞1,000,000 times
■ Environmental conditions
Working temperature/humidity: -10℃--60℃/0-90% (no condensation)
Storage temperature/humidity: -30℃—70℃/0—90% (no condensation)
■ Net Weight: Approx. 1.6KG
* Package dimensions:Single packaging box length×width×height (mm): 495 × 275 × 290
