- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
+-0.5-1%
-
Voltage:
-
220/380V 50-60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
2000*900*2200mm
-
Weight:
-
450 KG
-
Product name:
-

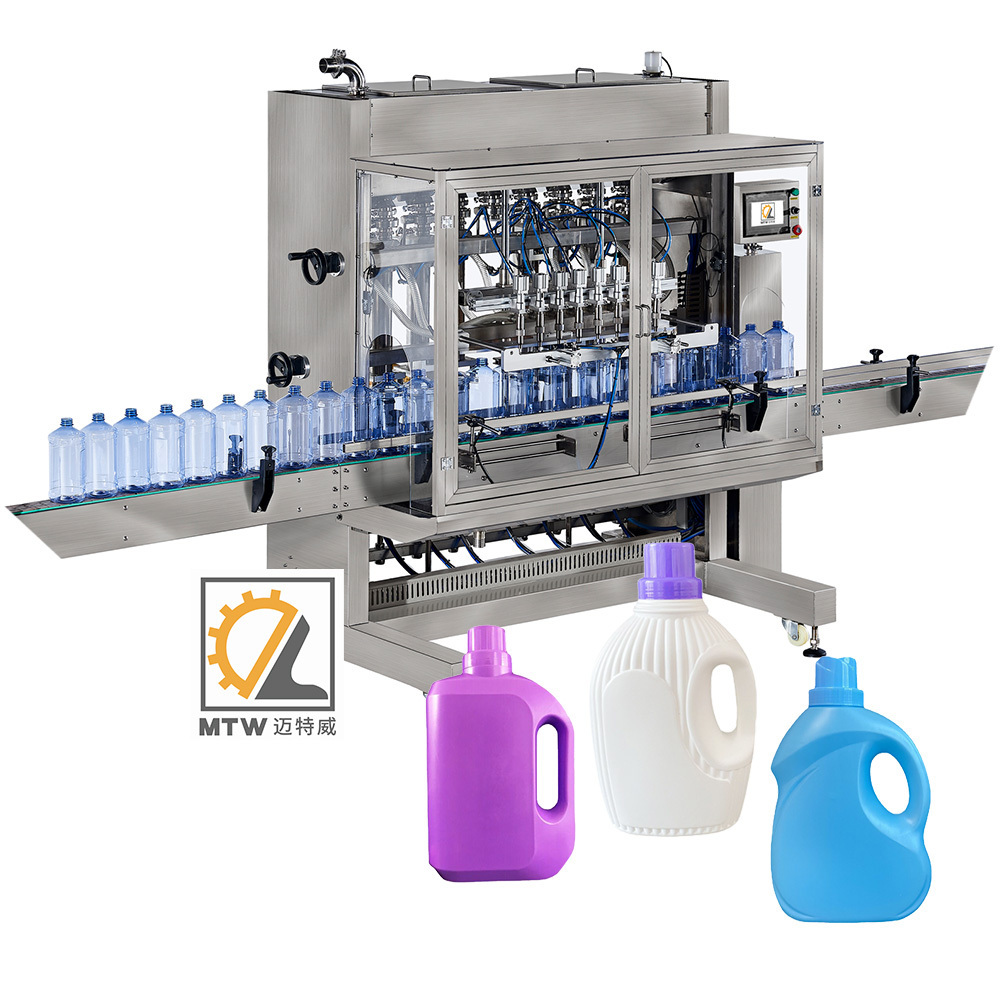

Shampoo Liquid Detergent Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Precision Filling Level
-
Function:
-
Automatic Filler
-
Advantage:
-
Easy Operation High Efficiency
-
Customizable:
-
Yes
-
Usage:
-
Liquid Filling Packaging
-
After Warranty Service:
-
Video technical support, Online support
-
Suitable for:
-
High Viscous Products
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH, 1000BPH, Other
-
Packaging Material:
-
Plastic, Metal, Glass, Other
-
Filling Material:
-
Oil, Other, Paste, Glass water
-
Filling Accuracy:
-
+-0.5-1%
-
Voltage:
-
220/380V 50-60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
2000*900*2200mm
-
Weight:
-
450 KG
-
Product name:
-
Shampoo Liquid Detergent Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Precision Filling Level
-
Function:
-
Automatic Filler
-
Advantage:
-
Easy Operation High Efficiency
-
Customizable:
-
Yes
-
Usage:
-
Liquid Filling Packaging
-
After Warranty Service:
-
Video technical support, Online support
-
Suitable for:
-
High Viscous Products
Our Advantages
Product Description
Introduction :
This filling machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material.
In food industry like, tomato paste, chilli sauce, honey, butter, ketchup lunch meat, mayonnaise, marmadele, etc.
The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
Product Paramenters
|
Material
|
SUS304 and SUS316L
|
|
|
|
|
||||
|
Filling heads
|
4
|
6
|
8
|
10
|
12
|
||||
|
Filling range
|
10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml
(600-6000ml can be tailor made) |
|
|
|
|
||||
|
Filling speed
(bottles/ hour & based on 500ml bottle)
|
2000-2500
|
2500-3000
|
3000-3500
|
3500-4000
|
4000-4500
|
||||
|
Filling precision
|
±0.5-1%
|
|
|
|
|
||||
|
Power
|
220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries)
|
|
|
|
|
||||
|
Air pressure
|
0.4-0.6Mpa
|
|
|
|
|
||||
|
Machine size
(L*W*Hmm)
|
2000*900*2200
|
2400*900*2200
|
2800*900*2200
|
3200*900*2200
|
3500*900*2200
|
||||
|
Weight
|
450Kg
|
500Kg
|
550Kg
|
600Kg
|
650Kg
|
||||
Machine adopts Panasonic servo motor to drive piston pumps, with high speed and high filling accuracy, also with very easy filling volume adjusted---adjusting on touch screen. Compared with traditional cylinder filling machine, it save lots of time!
Machine parts use stainless steel SUS304 & SUS316L. The machine use world word-class brand components, such as photo sensor---Keyence (Japan) PLC---Mitsubishi (Japan) Electrinic control part---Schneider (France) Touch screen---Delta (Taiwan China) Or MCGS(Beijing China) Cylinder--AirAc (Taiwan China)
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level.
Suitable for filling liquids, especially high-viscosity liquids, the accuracy can reach 99.9%
Set parameters on the touch screen to control the machine
Transaction process
Company profile
Our company is a professional manufacturer of all kinds of packing machines, including: filling machines, sealing machines, capping machines, labelling machines etc. We have more than 10 years experience in manufacturing and designing all kinds of packing machines.
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
Why Choose Us
Our logistics
FAQ
1.Can I visit your factory?
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
MTW automatic hot filling tomato paste jam pet food meat paste filling capping machine
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
