Product Description

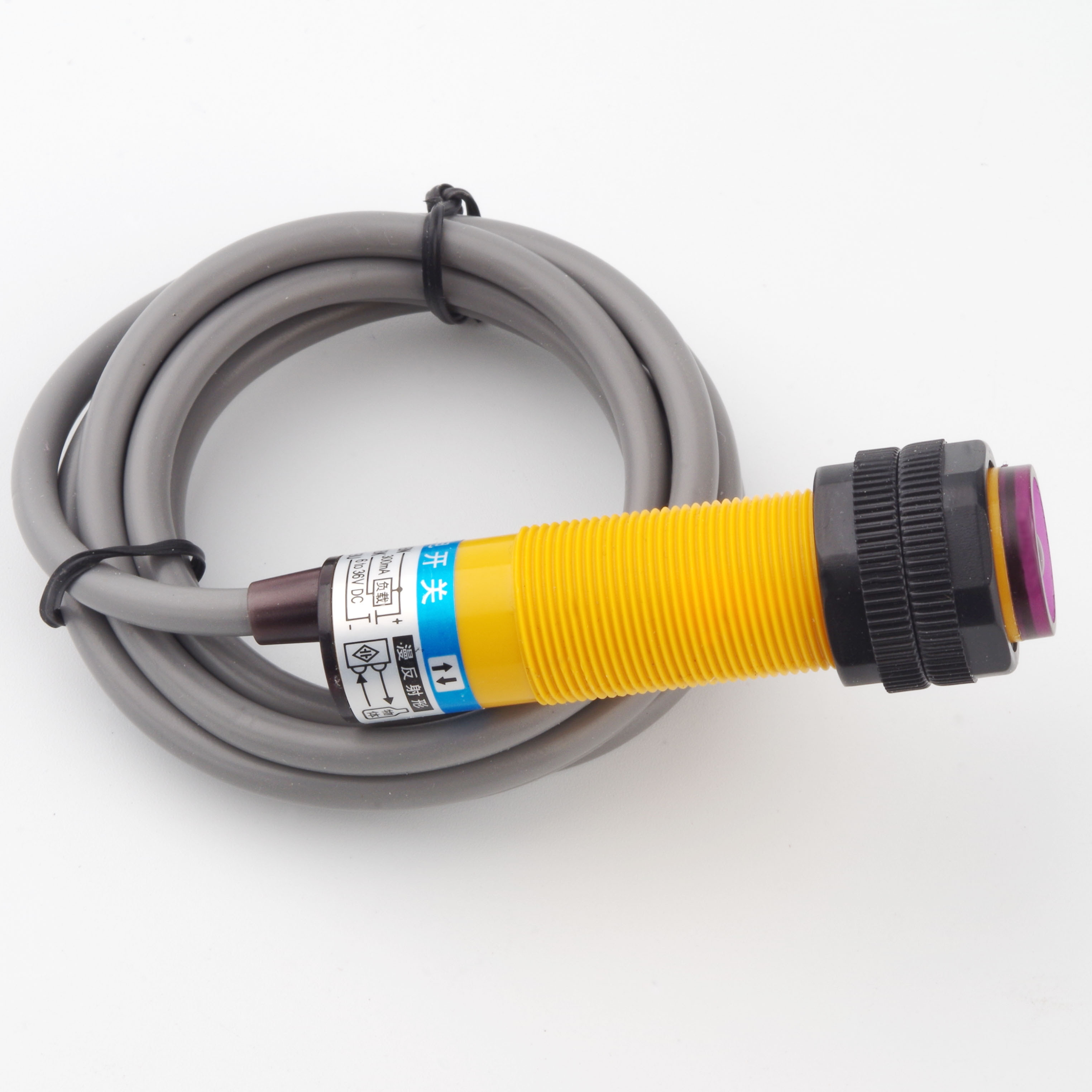

E3F-DS50Y1 ac 2-wire no infrared photo sensor switch for 220v
Power supply reversal connection protection, short- circuit protection can directly connect with PLC
Newly added current over-load protection
Low service life, high reliability and strong resistance property to environment
Red LED indicates that it's available to derect the sensor operating state
Newly added metal housing to improve the installation intensity
Countermeasure to improve the housing intensity and to solve disconnection
IP67 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use
Characteristic parameter
Detailed Images
|
Dimension
|
|
|
|
M18*1
|
|||
|
Detection method
|
|
|
|
Diffuse type
|
|||
|
|
DC type
|
NPN
|
NO
|
E3F-DS50C4
|
|||
|
|
|
|
NC
|
E3F-DS50B2
|
|||
|
|
|
|
NO+NC
|
E3F-DS50N12
|
|||
|
|
|
PNP
|
NO
|
E3F-DS50P1
|
|||
|
|
|
|
NC
|
E3F-DS50P2
|
|||
|
|
|
|
NO+NC
|
E3F-DS50P12
|
|||
|
|
|
Two-wire
|
NO
|
|
|||
|
|
|
|
NC
|
|
|||
|
|
AC type
|
Two-wire
|
NO
|
E3F-DS50Y1
|
|||
|
|
|
|
NC
|
E3F-DS50Y2
|
|||
|
|
|
Three-wire
|
NO+NC
|
|
|||
|
Detection range
|
|
|
|
7~50cm±10%
|
|||
|
Detection range regulation
|
|
|
|
sensitivity adjuster
|
|||
|
Detection target
|
|
|
|
Transparent/ Opaque Object
|
|||
|
Response time
|
|
|
|
1ms
|
|||
|
Connection delay
|
1.5ms
|
|
|
||
|
Light Source
|
Infrared light 660nm
|
|
|
||
|
Supply voltage
|
DC type: DC12-24V(6-36V) Impulse(p-p) 10% below
Ac type: AC110-220V (36-250V) 50/60Hz |
|
|
||
|
Consumption current
|
N.P type:20mA below A type:1.7mA below
|
|
|
||
|
Control output
|
N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
|
|
|
||
|
Loop protection
|
N.P.D type: reversal connection protection, surge absorption, load short-circuit protection
A type: surge absorption |
|
|
||
|
Ambient temperature humidity
|
During operation,storage: individually-30~+65(No freeze,no drew),
During operation,storage: Individually35~95%RH |
|
|
||
|
Insulation resistance
|
50 MΩ about(DC500 megameter) between charging and housing
|
|
|
||
|
Withstand voltage
|
AC1000V50/60Hz 1 min between charging and housing
|
|
|
||
|
Temperature influence
|
Temperature range-30~+65,at+23,+/-15% detection distance
Temperature range-25~+60,at+23,+/-10% detection distance |
|
|
||
|
Voltage influence
|
Inside+/-15%rated supply voltage range, at rated supply voltage value;
Inside +/-10% detection distance |
|
|
||
|
Protection sturcture
|
IP65 ICE specification
|
|
|
||
|
material
|
Nickel plated brass(ABS); Detection surface(lens)PMMA
|
|
|
||
Application
