Quick Details
-
Brand Name:
-
KDZD
-
Model Number:
-
KDDT-10A
-
Measurement range:
-
1-199m Ω
-
Resolution:
-
1m Ω
-
est current:
-
Four fixed current levels of DC 1A, 2A, 5A, and 10A
-
Measurement accuracy:
-
± (0.5%+2d)
-
Measurement radius:
-
50 meters
-
Display method:
-
LCD backlight display
-
Working mode:
-
continuous
-
Working power supply:
-
AC220V ± 10% 50Hz
-
Working environment:
-
Temperature -10 ℃~40 ℃ Humidity: ≤ 80% RH
-
Size:
-
300 * 270* 200(mm)
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KDZD
-
Model Number:
-
KDDT-10A
-
Measurement range:
-
1-199m Ω
-
Resolution:
-
1m Ω
-
est current:
-
Four fixed current levels of DC 1A, 2A, 5A, and 10A
-
Measurement accuracy:
-
± (0.5%+2d)
-
Measurement radius:
-
50 meters
-
Display method:
-
LCD backlight display
-
Working mode:
-
continuous
-
Working power supply:
-
AC220V ± 10% 50Hz
-
Working environment:
-
Temperature -10 ℃~40 ℃ Humidity: ≤ 80% RH
-
Size:
-
300 * 270* 200(mm)

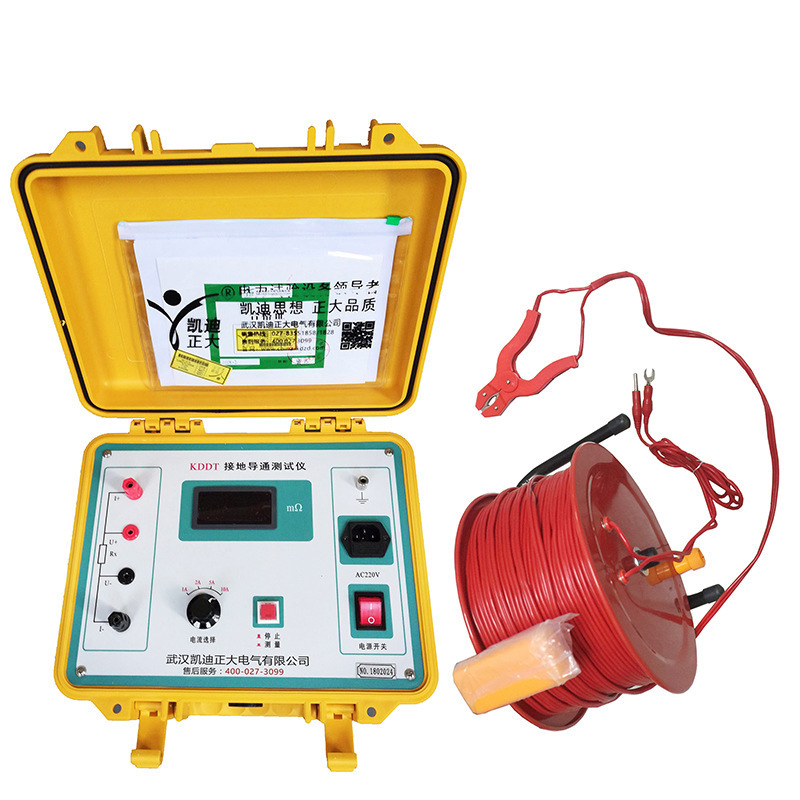

The KDDT-10A grounding down conductor conductivity tester is a highly automated portable tester specifically designed for electrical integrity testing of grounding devices. Its various technical indicators meet or exceed relevant standard requirements. The instrument is easy to operate, has high accuracy, fast testing speed, good repeatability, and intuitive readings. It is an instrument that meets the requirements of regulations, greatly facilitating the development of experimental projects and improving work efficiency.
|
Technical indicators
|
|
|
|
Measurement range
|
1-199m Ω
|
|
|
Resolution
|
1m Ω
|
|
|
Test current
|
DC 1a, 2a, 5A, 10a four fixed current gears
|
|
|
Measurement accuracy
|
± (0.5%+2d)
|
|
|
Measuring radius
|
50m
|
|
|
Display mode
|
LCD backlight display
|
|
|
Working mode
|
continuous
|
|
|
Working power supply
|
AC220V ± 10% 50Hz
|
|
|
Working environment
|
temperature - 10 ℃ ~ 40 ℃, humidity: ≤ 80%rh
|
|
|
Size
|
300 ×270 × 200(mm)
|
|
|
Weight
|
5kg (excluding accessories)
|
|
Performance characteristics
1. Power supply technology: Adopting new power supply technology, it can output 5A current and work continuously for a long time, overcoming the drawbacks of instantaneous current in pulse power supply. It can effectively breakdown the oxide film on the contact and obtain good test results.
2. Strong anti-interference ability: Under severe interference conditions, the last digit of the LCD screen can remain stable within a range of ± 1 words, with stable readings and good repeatability.
3. Long service life: High precision resistors are used to effectively eliminate the influence of environmental temperature on measurement results, and the use of military connectors enhances vibration resistance.
4. Easy to operate: Simply press the measurement button to obtain the measurement result. The measurement results are displayed with LCD backlight, which provides intuitive readings and good repeatability.
5. Convenient to carry: Adopting a portable design, it has a small size and light weight. The panel and chassis form an integrated structure, which has good seismic resistance.
