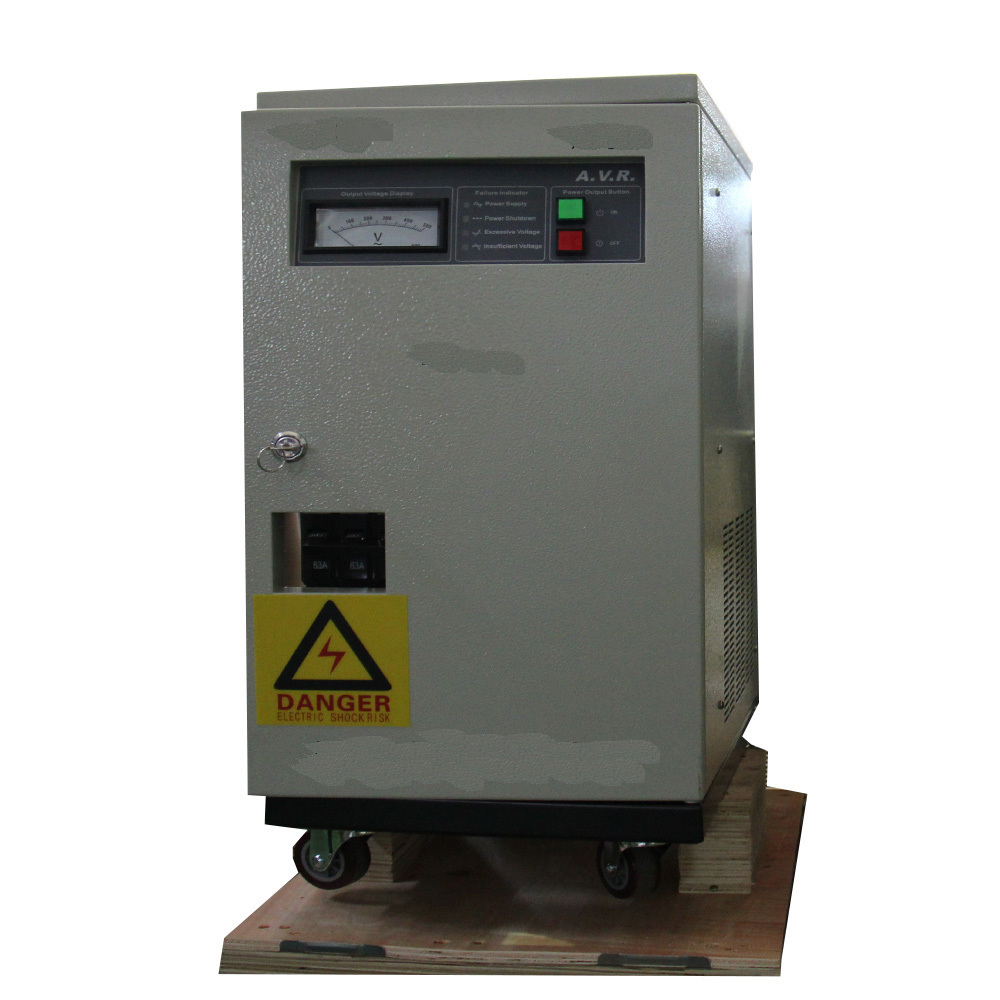

400v 3 phase 20kva AVR industrial automatic voltage regulator

400v 3 phase 20kva AVR industrial automatic voltage regulator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4500

≥10 Pieces

US $4000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: panpower

Model Number:: ARD20kva

Capacity:: 20kva

Phase number:: 3 phase

Output Voltage:: 220v/380v/400v/415v/440vac

Output current:: 30A

Input Frequency:: 45Hz~65Hz

Type:: AVR Automatic Voltage Regulator

Application:: industrial voltage regulator

Cooling:: Forced air cooling

Dimension(L*W*H):: 460*360*820mm

N.W:: 90KG

Quick Details

Phase:: Three Phase

Current Type:: AC

Place of Origin:: Guangdong, China

Brand Name:: panpower

Model Number:: ARD20kva

Capacity:: 20kva

Phase number:: 3 phase

Output Voltage:: 220v/380v/400v/415v/440vac

Output current:: 30A

Input Frequency:: 45Hz~65Hz

Type:: AVR Automatic Voltage Regulator

Application:: industrial voltage regulator

Cooling:: Forced air cooling

Dimension(L*W*H):: 460*360*820mm

N.W:: 90KG

400v 3 phase 20kva AVR industrial automatic voltage regulator

Features

&.industrial voltage stabilizer

&.Capacity: 20kva

&Phase: 3 phase

&Rated voltage : 220V 380V 400V 415V 440V ac

Output current: 30A

&.Continuous linear voltage regulator

&.Wide AC input range

&.Low output voltage,high voltage detection automatically

&.Bypass output

&.Manually raise or reduce voltage function

&.Output delay function

&.Load short circuit and overload protection automatically

Specifications

Model	ARD10kva	ARD15kva	ARD20kva	ARD30kva	ARD45kva	ARD60kva	ARD80kva	ARD100k
Capacity	10kva	15kva	20kva	30kva	45kva	60kva	80kva	100kva
Rated current	15A	23A	30A	46A	68A	91A	121A	152A
Rated voltage	220v 380v 400v 415v 440v
Phase	3 phase
Input Voltage Range	Rated Voltage±15%
Output Precision	±1%~±5% adjustable (preset at±1.5%)
Input Frequency	45Hz~65Hz
Power Factor	>0.95
Output Voltage Adjustable	Rated Voltage±5% adjustable
Distortion	<3% (compare to input wave form)
Overload Capacity	150% for 10 seconds, 200% for 2 seconds
Respond Time	<0.042 second
Operating Temperature	-10℃~40℃
Operating Humidity	0~90%(Non-condensing)
Noise	≤65Db(full load, distance at 1 meter)
Cooling	Forced air cooling
Isolation Voltage	2000V,60S (≤10mA, Coils to conductor)
Isolation Resistance	≥5MΩ (DC500V, coils to earth)
Earthing Resistance	≤0.1Ω
Creepage Distance	>8mm
Anti-shock	0.3G
Protection	Output Low Voltage, Output High Voltage, Open Phase
Optional Functions	Bypass; Surge protection
