Quick Details
-
Model Number:
-
SN-MH100W
-
Place of Origin:
-
Guangdong, China
-
Number of Cells:
-
36(4*9)pcs
-
Panel Dimensions:
-
1180*540*3mm
-
OEM Customized:
-
18-300W
-
Bendable:
-
30-60 degree
-
Solar cell:
-
Sunpower from USA
-
Solar panel efficiency:
-
20%
-
Junction box:
-
On front or back
-
Connector:
-
MC4
-
Cable:
-
90cm
-
Install:
-
By screws or 3M glue
-
NW(kg):
-
1.5kg
-
Keywords:
-
flexible solar panel 100w 12v
Quick Details
-
Max. Power:
-
100W
-
Material:
-
Monocrystalline Silicon
-
Brand Name:
-
SHINE SOLAR
-
Model Number:
-
SN-MH100W
-
Place of Origin:
-
Guangdong, China
-
Number of Cells:
-
36(4*9)pcs
-
Panel Dimensions:
-
1180*540*3mm
-
OEM Customized:
-
18-300W
-
Bendable:
-
30-60 degree
-
Solar cell:
-
Sunpower from USA
-
Solar panel efficiency:
-
20%
-
Junction box:
-
On front or back
-
Connector:
-
MC4
-
Cable:
-
90cm
-
Install:
-
By screws or 3M glue
-
NW(kg):
-
1.5kg
-
Keywords:
-
flexible solar panel 100w 12v

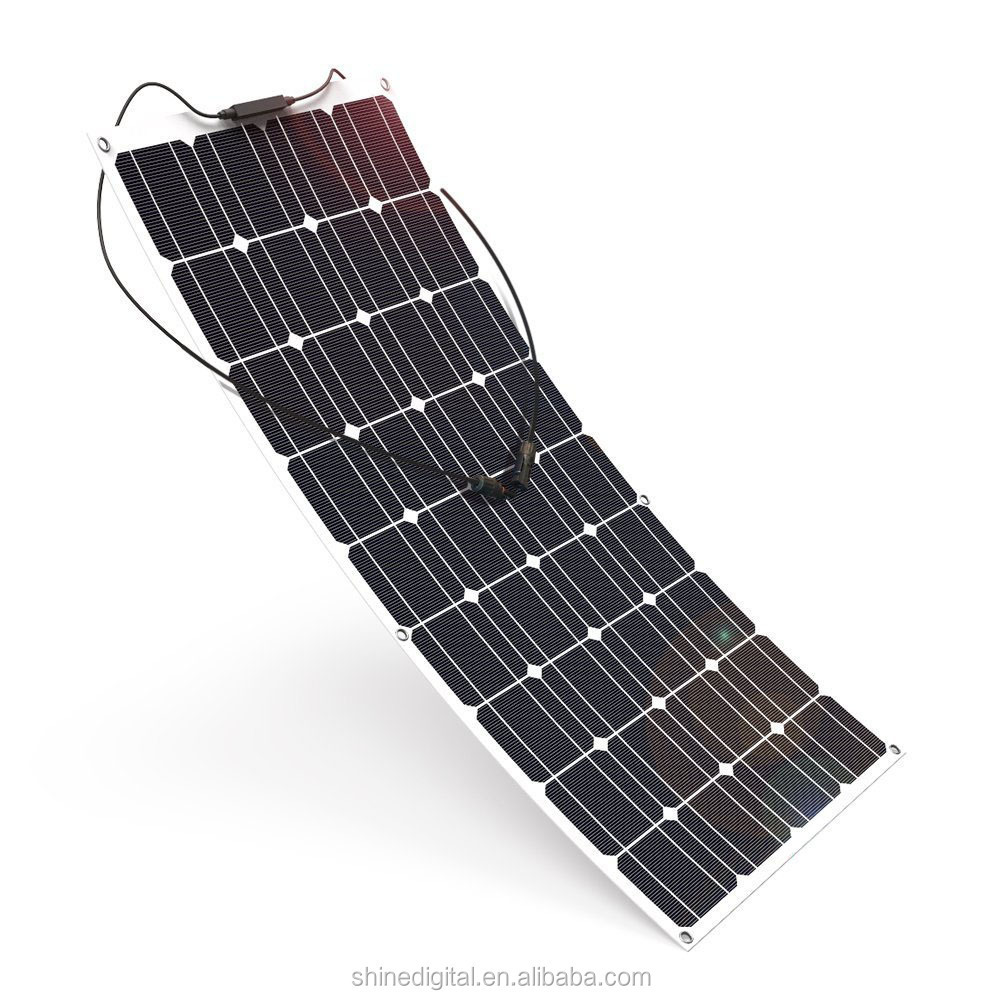

Mono Portable Flexible Solar Panel 20 Wp 30 w 40watt 50 watt 60Watt 90wp 100w 120 Watt 130 W 150 wp 180Wp 200W
|
1, Each cells efficiency 20%, the price is lower 30% than other flexible solar panel |
|
2, Adopting transparent PVDF material on surface and high quality TPT back plate, Resist salt corrosion, UV, withstands hail, storm and other harsh weather. |
|
3, Different Waterproof Connection box ( insert diode ). |
|
4, White and Black color available. |
|
5, Predrilled holes in the corner with Stainless grommets, ease-of-installation. |
|
6, Bend rate from 30-60 degree. |
|
7, 3mm thin, super lightweight. |
|
8, From -20°C ~ +60°C Work temperate |
|
9, Widely applied to RV, Golf car, Electric car, Yacht, boat, marine , Tent or backpack ect. |
Specification:
| Maximum power(Pm) | 100W |
| Voltage at max power(Vmp) | 18V |
| Current at max power(Imp) | 5.56A |
| Open circuit voltage(Voc) | 21.6V |
| Short circuit current(Isc) | 6.1A |
| Maximum System Voltage | 600V |
| Series Fuse Rating | 10A |
| Max Power tolerance | ±5% |
| Weight | 1.5KG |
| Size | 1180*540*3mm |
| Cell Efficiency | 19.9% |
| Number of Cells in Series | 36 |
| Temperature coefficients: Power | -0.38%/°C |
| Voltage | -60.8mV/°C |
| Curren | 2.2mA/°C |
| Cable | 4.0mm² 90cm with MC4 Connector |
| Warranty | 10 Years Output Power Guarantee |
