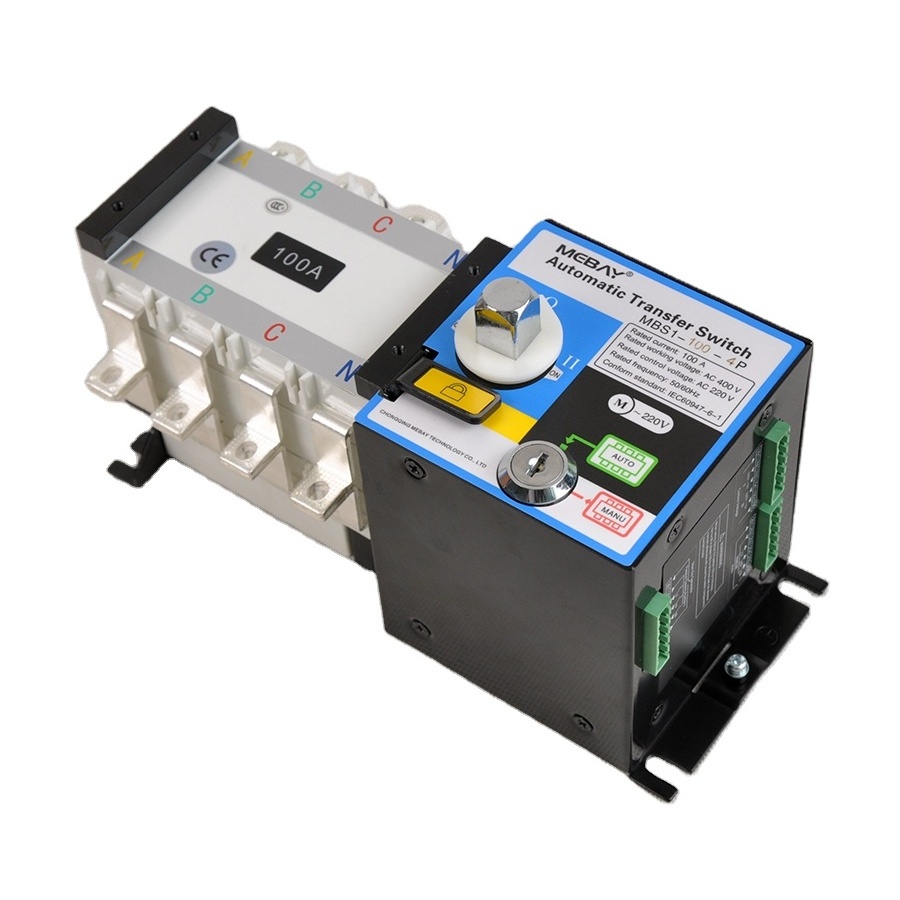

Electrical Automatic Transfer Switch ATS 100A 4P Dual Power Switch

Electrical Automatic Transfer Switch ATS 100A 4P Dual Power Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $53

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 100GA

part number::: Electrical Automatic Transfer Switch ATS 100A 4P Dual Power Switch

weight::: 3.4kg

Rated Working Voltage:: 400V

In stock::: Yes

Pole:: 4P

Certificate::: CE ISO9001

Item Available:: 16A~3200A

Operation type:: Auto&Manual, or Manual

type:: ats

Keyword:: ATS

Quick Details

Current:: 100A

Place of Origin:: Chongqing, China

Brand Name:: YOKDEN

Model Number:: 100GA

part number::: Electrical Automatic Transfer Switch ATS 100A 4P Dual Power Switch

weight::: 3.4kg

Rated Working Voltage:: 400V

In stock::: Yes

Pole:: 4P

Certificate::: CE ISO9001

Item Available:: 16A~3200A

Operation type:: Auto&Manual, or Manual

type:: ats

Keyword:: ATS

Main Products

Product Description

Electrical Automatic Transfer Switch ATS 100A 4P Dual Power Switch

Introduction

MBS1 series dual power switch, referred to as ATS (automatic transfer switch), is an integrated three-stage switch with fire protection function. This series of switches are PC level switches, which are composed of switch body and conversion control. They are driven by electromagnetic coil and have electrical and mechanical interlocking structure. They have fast conversion speed and can realize the rapid switching of two power supplies. The power supply of conversion controller adopts AC220V of common or standby power supply as the working voltage.

High Quality

Fully Enclosed - Water proof level can reach IP50. SAFE AND RELIABLE:

Insulated Enclosure - Glass fiber reinforced unsaturated polyester film material - premium dielectric properties， flame retardation and protective properties.

Details Show Quality

Modified Wiring Port : 2 in and 1 out wiring type, more convenient.

Integrated Design and Safe Connection Distance.

All-Round Protection : Overload Protection, short-circuit protection， current protection

Product Parameters
Model	MBS1
Firm code	630
Rated current ln(A)	315/350/400/500/630
Rated insulation voltage	690V
Rated concussion withstand voltage(Uimp)	8KV
Rated working voltage(Ue)	AC400V
Using category	AC-33B
Rated short-circuit connection capacity	26KA
Rated short-time withstand current(Icw)	12.6kA/60ms
Transfer time I-0 or 0-I	0.6s
Transfer time I-II or II-I	1.2s
Load off time	0.4s
Control voltage	AC220V (176~265)V
Motor starting rated power	355W
Normal rated power of motor	74W
Mechanical life	6000
Electrical life	1000
Power frequency interference withstand voltage	2000V/min
Degree of protection	IP20
Altitude	<2000m
Working conditions	Temperature: - 25 ~ + 70 ℃, humidity: 20 ~ 90%
