Quick Details
-
Model Number:
-
RTJ941X-16
-
Brand Name:
-
ROTK
-
Pressure:
-
PN16, PN25
-
Rated travel time:
-
15S/30S
-
rotation angle:
-
0-360 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Certificate:
-
CE certification
-
Product name:
-
electric actuator ductile iron flange 2 way motorized globe valve
Quick Details
-
Port Size:
-
DN50-DN400, 2"~12", DN50~DN400
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RTJ941X-16
-
Brand Name:
-
ROTK
-
Pressure:
-
PN16, PN25
-
Rated travel time:
-
15S/30S
-
rotation angle:
-
0-360 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Certificate:
-
CE certification
-
Product name:
-
electric actuator ductile iron flange 2 way motorized globe valve
Product Description
Our Advantages
•
Guangzhou ROTK Valve Technology Co., ltd
aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.
• Over 30 YEARS manufacturer of actuated valves , MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities , 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS.
• OEM / ODM service available.
Product features
(1) easy operation
(2) good sealing
(3) long service life
(4) simple installation
• Over 30 YEARS manufacturer of actuated valves , MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities , 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS.
• OEM / ODM service available.
Multi turn valve actuator is a micro valve actuator that elaborately designed and manufactured by the most advanced technology, it mainly assemble with gate valve. Electric flange hard seal gate valve is widely used in water supply, building, petroleum, chemistry, food, pharmaceuticals, light textile, electrical, shipping industry, metallurgy, energy systems. It is easy operation, good sealing, long service life, and simple installation.
(1) easy operation
(2) good sealing
(3) long service life
(4) simple installation
Electric actuator ( Optional)
|
Type
|
Control type
|
Function
|
|
Electric actuator
(optional) |
ON-OFF type
|
Feedback: the active signal, passive contact signal, resistance, 4-20mA
|
|
|
Regulation type
|
Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
|
|
|
Filed operation
|
The field, remote control switch regulation and MODBUS, PROFIBUS field bus
|
|
|
|
|
|
Size Range
|
2"~16", DN50~DN400
|
|
Operating Pressure
|
1.6MPa
|
|
Control Mode
|
Multi-Turn Electric Actuator
|
|
Optional Voltage
|
DC12~24V (±10%), AC110~220V, 50/60Hz
|
|
Body Material
|
Cast Iron/WCB/Stainless Steel
|
|
Core Material
|
Cast Iron/WCB/Stainless Steel
|
|
Structure
|
2 Way Globe Valve
|
|
Sealing Material
|
PTFE Seal, PPL Seal
|
|
Operating Temperature
|
PTFE(0~180degC), PPL (0~230degC)
|
|
Connection Type
|
Flange
|
|
Optional Protection Range
|
IP65, Water-proof IP68, Explosion proof
|
|
Actuation Time
|
It depends on the torque of actuator.
|
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
Specification
|
Specification of Electric Actuator
|
|
|
|
|
|
|
|
|
||||||||
|
Items Parameter
|
RTKD-05
|
RTKD-10
|
RTKD-16
|
RTKD-30
|
RTKD-60
|
RTKD-125
|
RTKD-250
|
RTKD-400
|
||||||||
|
Output torque
|
50Nm
|
100Nm
|
160Nm
|
300Nm
|
600Nm
|
1250Nm
|
2500Nm
|
4000Nm
|
||||||||
|
Rated travel time
|
5S/10S/20S
|
15S/30S
|
|
|
30S/60S
|
100S
|
100S
|
100S
|
||||||||
|
Rotation angle
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
||||||||
|
Working current
|
0.25A
|
0.48A
|
0.68A
|
0.8A
|
1.2A
|
2A
|
2A
|
2.7A
|
||||||||
|
Starting power
|
0.25A
|
0.48A
|
0.72A
|
0.86A
|
1.38A
|
2.3A
|
2.3A
|
3A
|
||||||||
|
Motor power
|
10W/F
|
25W/F
|
30W/F
|
40W/F
|
90W/F
|
100W/F
|
120W/F
|
140W/F
|
||||||||
|
Weight
|
3kg
|
5kg
|
5.5kg
|
8kg
|
8.5kg
|
15kg
|
15.5kg
|
16kg
|
||||||||
|
Power
|
AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options)
|
|
|
|
|
|
|
|
||||||||
|
Input signal
|
4-20mA (
Modulating type
)
|
|
|
|
|
|
|
|
||||||||
|
Output signal
|
4-20mA (
Modulating type
)
|
|
|
|
|
|
|
|
||||||||
|
Insulation resistance
|
100M/500VDC
|
|
|
|
|
|
|
|
||||||||
|
Pressure withstanding
|
1500 VAC , one minutes
|
|
|
|
|
|
|
|
||||||||
|
Inbreaking protection
|
IP65/IP67
|
|
|
|
|
|
|
|
||||||||
|
Installation angle
|
360° any angle
|
|
|
|
|
|
|
|
||||||||
|
Electrical Interperation
|
one G1/2 CNCO,one Power cord connection port,one signal wire connection port
|
|
|
|
|
|
|
|
||||||||
|
Ambient humidity
|
-30°C to +60°C
|
|
|
|
|
|
|
|
||||||||
|
Pilot circuit options
|
A:with limit position switch style (standard)
|
|
|
|
|
|
|
|
||||||||
|
|
B: with neutral position switch style ( passive contact)
|
|
|
|
|
|
|
|
||||||||
|
|
C:with potentiometer style
|
|
|
|
|
|
|
|
||||||||
|
|
D: both potentiometer and neutral position switch style
|
|
|
|
|
|
|
|
||||||||
|
|
E: with control module style ( Modulating Applications)
|
|
|
|
|
|
|
|
||||||||
|
|
F: DC motor control circuit style
|
|
|
|
|
|
|
|
||||||||
|
|
G:Three-phase current 380V control circuits style
|
|
|
|
|
|
|
|
||||||||
|
|
H:Three-phase current 380V, both neutral position switch and potentiometer style
|
|
|
|
|
|
|
|
||||||||

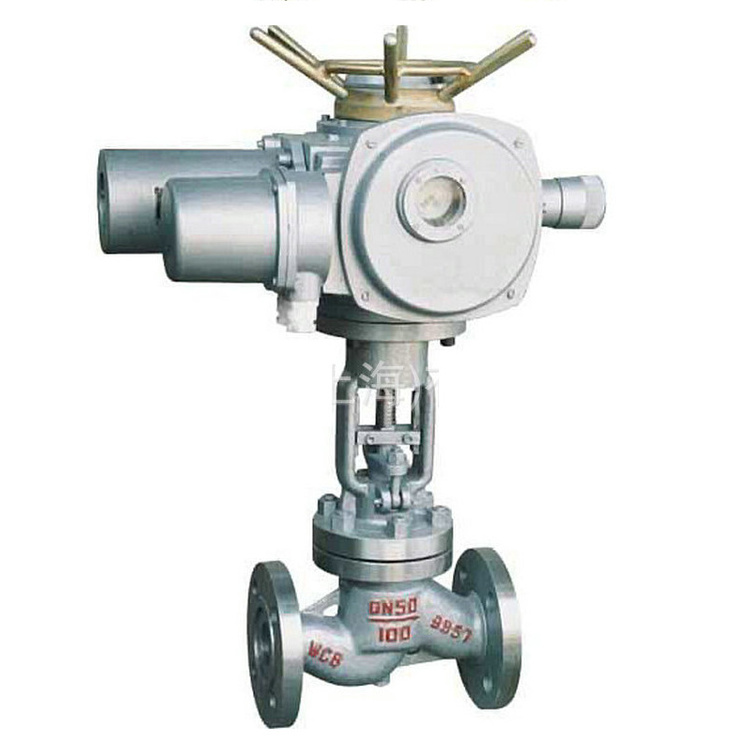

Product Picture
More type of electric actuator
Explosion-proof Type With handwheel Type Multiturn Type Small Type
ISO 5211 Mounting
Production Flow
Packing & Delivery
Packing:
Electric Actuators packed with foam in Carton or in Wooden box.
Delivery Time: 7-15 working days after payment confirmed.
Delivery Time: 7-15 working days after payment confirmed.
