Quick Details
-
Showroom Location:
-
Spain
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Spain
-
After-sales Service Provided:
-
Overseas service center available
-
color:
-
blue, or customerized
-
type:
-
woodworking jointer
-
Cutter:
-
Spiral or straight cutter spindle
-
OEM:
-
Available
-
Power(W):
-
4kw
-
Weight:
-
640kg
-
Certification:
-
CE
Quick Details
-
Max.Planing Depth(mm):
-
8 mm
-
Max.Planing Width(mm):
-
410
-
Place of Origin:
-
Shandong, China
-
Showroom Location:
-
Spain
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Spain
-
After-sales Service Provided:
-
Overseas service center available
-
color:
-
blue, or customerized
-
type:
-
woodworking jointer
-
Cutter:
-
Spiral or straight cutter spindle
-
OEM:
-
Available
-
Power(W):
-
4kw
-
Weight:
-
640kg
-
Certification:
-
CE

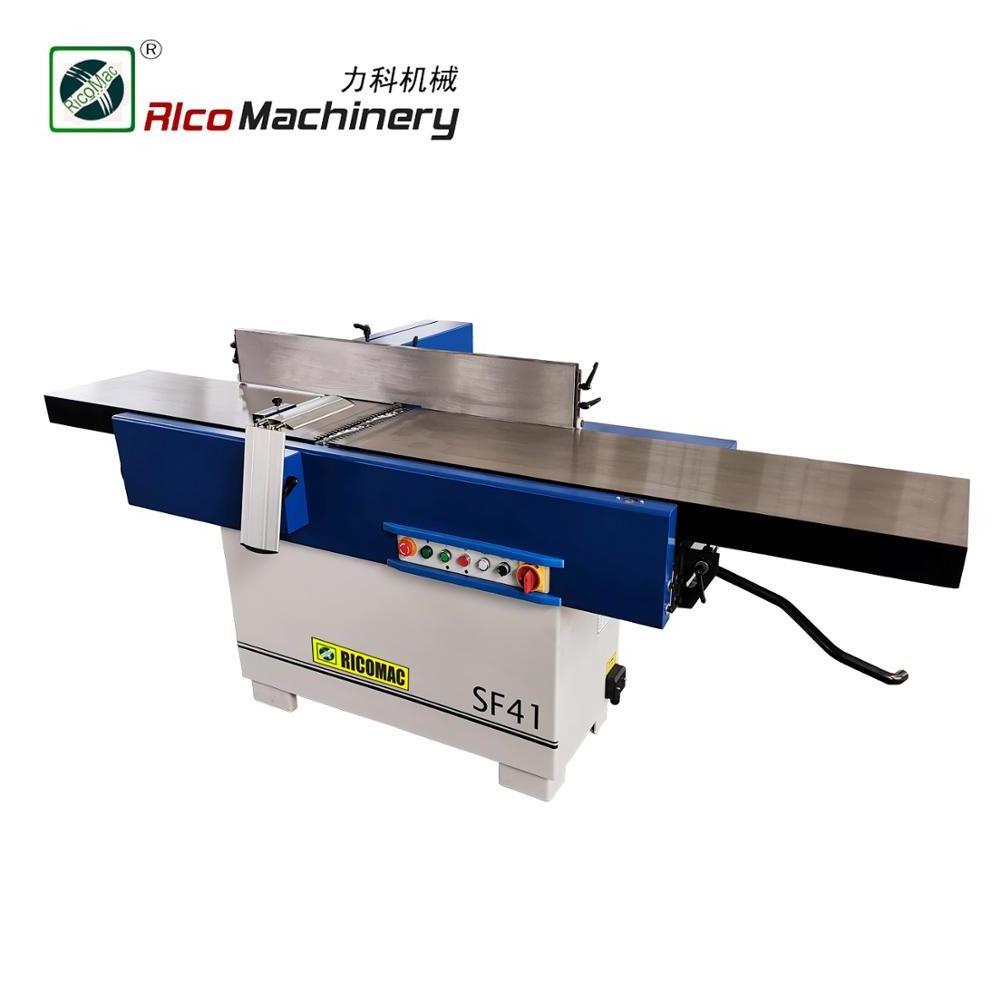

Heavy duty Woodworking jointer SF41
Main Characteristic:
1. with European guide fence and bridge type shield
2. Heavy-duty Model, the front and behind table could be lifted 10mm spereately
3.motor of this woodworking jointer with brake
4.Spiral cutter spindle or Straight cutter spindle
Spec.:
|
ITEM/MODEL |
SF41 |
SF51 |
|
Max. planing width |
410 mm |
510 mm |
|
Max. planing depth |
8mm |
8mm |
|
Spindle speed |
5000 rpm |
5000 rpm |
|
Total worktable length |
2600 mm |
2750 mm |
|
Guide fence |
Cast iron |
Cast iron |
|
Main motor power |
4kw |
5.5kw |
|
Cutting circle diameter |
123 mm |
123 mm |
|
Planing spindle diameter |
120 mm |
120 mm |
|
Overall dimensions |
2600x750x1050 mm |
2750x850x1050 mm |
|
Net weight |
640kg |
680kg |
Packing:
Plywood case
Package size:2650x720x1020mm
Number of package:One PKGS
Shipping:
Ship departure from any chinese port.
Guarantee&Aftersales service:
1.guarantee for one year
2.24 hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
