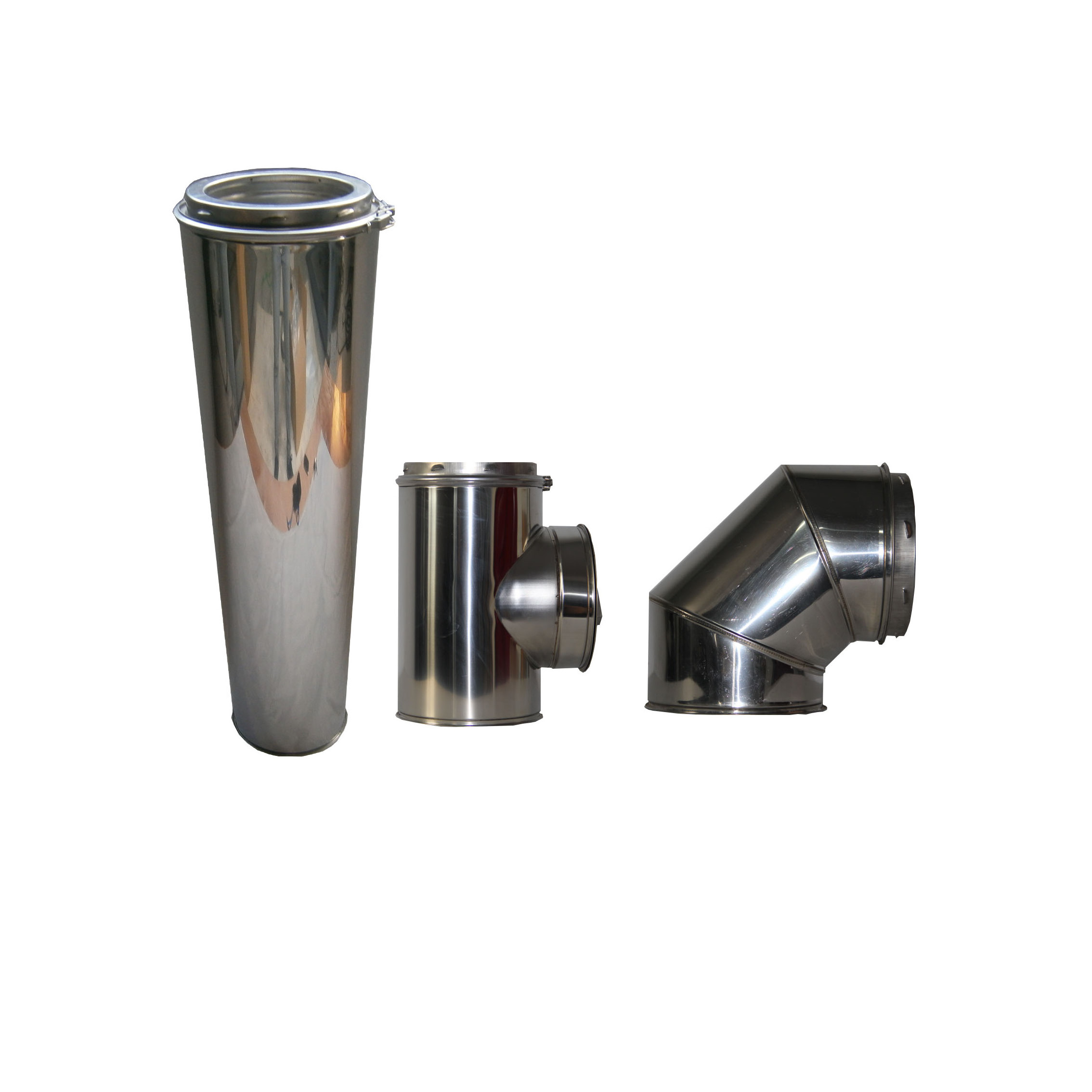

Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe

Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe

FOB Reference Price: Get Latest Price
≥50 Sets
US $5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Hotel
Design Style:
Modern
Place of Origin:
Anhui, China
Brand Name:
Anhui Warmfire
Model Number:
Y-TL Twist Lock
Type:
chimeny exhaust 304 stainless steel pipe
Joint design:
Twist Lock
ID:
125mm/150mm
OD:
175mm/200mm
Matirial of outer wall:
stainless steel 304/BA
Matirial of inner wall:
stainless steel 316/2B
Thickness:
0.5mm
OEM Supply:
Offered
Certificate:
CE, ISO9001
Main Markets:
Europe, Central America, Western Europe, Oceania
Product Name:
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe

Quick Details

Warranty:
5 years
After-sale Service:
Free spare parts
Project Solution Capability:
graphic design
Application:
Hotel
Design Style:
Modern
Place of Origin:
Anhui, China
Brand Name:
Anhui Warmfire
Model Number:
Y-TL Twist Lock
Type:
chimeny exhaust 304 stainless steel pipe
Joint design:
Twist Lock
ID:
125mm/150mm
OD:
175mm/200mm
Matirial of outer wall:
stainless steel 304/BA
Matirial of inner wall:
stainless steel 316/2B
Thickness:
0.5mm
OEM Supply:
Offered
Certificate:
CE, ISO9001
Main Markets:
Europe, Central America, Western Europe, Oceania
Product Name:
Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe

Twist Lock CE Insulated Double Wall Stainless Steel Stove Pipe

Product Description

Welcome to DS-T CHIMNEY

Thank you so much for taking the time to consider our company's products and services.

We believe in only offering products that we would use ourselves, at a fair price, and we guarantee them 100%.

Your satisfaction both in dealing with us and with our products must be complete.

Products Details

Designation

DIN EN1856-1 T600 N1 D V2 L50045-O50

DIN EN1856-1 T600 N1 D V2 L50045-G75

DIN EN1856-1 T600 N1 D Vm L50045-O50

DIN EN1856-1 T600 N1 D Vm L50045-G75

Suitable fuels Solid fuel,Gas, Oil
Gas tightness/leakage: Negative (N1)
Maximum operating Temperature: 600
Resistance to fire: Yes
Thermal resistance: Min0.261m2km
Corrosion resistance: V2/Vm
Diameter range(mm) 125mm,150mm,175mm,200mm
Inner wall specification: 0.47mm stainless steel 316
Insulation : Ceramic wool blanket" super wool 607"
Insulation denisty: 128kg/m3
Outer wall specification 0.5mm stainless steel 304 8K
Joint design Twist lock

Products Key Features:

  • -Easy to install Twist-lock system
  • -Weatherproof, fully sealed components
  • -High density, ceramic wood blanket ”superwool 607” ( the best quality in China )
  • -Suitable for internal and external applications
  • -Made from high grade stainless steel, 316L for inner wall for the highest corrosion resistance, 8K 304 for the best shinning surface, polished finish

Secondly, we would like to show you our factory:

CE Specification :

  • Model 1 DN(125-200)-T600-N1-D-V2-L50045-O50 ( not soot fire resistance)
  • Model 2 DN(125-200)-T600-N1-D-V2-L50045-G75 (soot fire resistance)
  • Model 3 DN(125-200)-T600-N1-D-Vm-L50045-O50 (not soot fire resistance)
  • Model 4 DN(125-200)-T600-N1-D-Vm-L50045-G75 (soot fire resistance)

We drew a new picuture to help you have a better understanding for our products' CE standards.

You can find all our products are up to the highest levels of CE standards.

  • Our factory is located in Wuhe town which have 178.5KM far away from Nanjing and 459.1KM from Shanghai.
  • We have nearly 30 employees and in terms of size, the facility is 16,000m2 area large.
