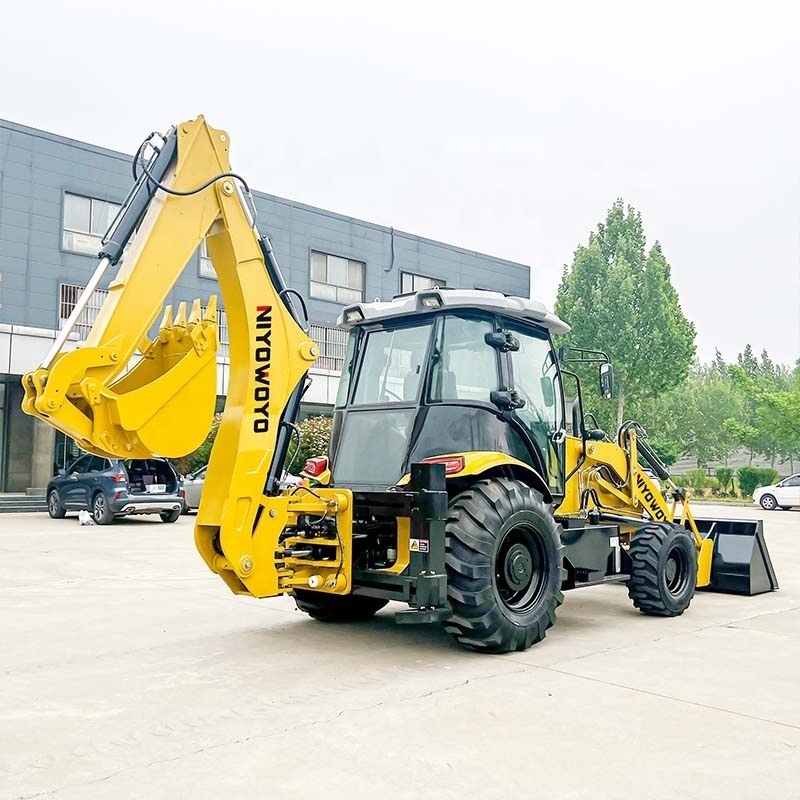

China Factory EPA Engine Wheel Loader Mini Backhoe Excavator Loader 4X4 Backhoe Loader for Sale

China Factory EPA Engine Wheel Loader Mini Backhoe Excavator Loader 4X4 Backhoe Loader for Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $25000

≥5 Sets

US $24500

≥10 Sets

US $24000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong,China

Dimension(Long * Breadth * High):: 7600*226*3000mm

Machine Weight:: 7600 kg

Bucket capacity:: 1.5CBM&0.3CBM

Rated power:: 85KW

Overall weight:: 760 kg

Rated loading weight:: 2800 kg

Backhoe bucket:: 0.3 m³

Loader bucket:: 1.5 m³

Overall Dimension:: 7600*2260*3000 mm

Wheel base:: 2250 mm

Maximum digging depth:: 4000mm

Optional Digging Depth:: 5000mm-5500 mm (Digging boom telescopic)

Quick Details

Engine Brand:: YUCHAI

Power:: 85KW

Brand Name:: NIYOWOYO

Place of Origin:: Shandong,China

Dimension(Long * Breadth * High):: 7600*226*3000mm

Machine Weight:: 7600 kg

Bucket capacity:: 1.5CBM&0.3CBM

Rated power:: 85KW

Overall weight:: 760 kg

Rated loading weight:: 2800 kg

Backhoe bucket:: 0.3 m³

Loader bucket:: 1.5 m³

Overall Dimension:: 7600*2260*3000 mm

Wheel base:: 2250 mm

Maximum digging depth:: 4000mm

Optional Digging Depth:: 5000mm-5500 mm (Digging boom telescopic)

Product Overview

1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine
operating costs.

In recent years, NL3CX backhoe loader has been used in many countries and regions.In farms,mines or even some public projects,we can see the backhoe loader working.Our NL3CX backhoe loader can doing loading,transporting,pushing and digging tasks.But there are some people who hope that our product can dig deeper.In order to meet their needs,the excavator end of our NL3CX backhoe loader can be equipped with telescopic boom which the maximum digging depth is more that 5 meters.The telescopic boom is produced by our factory to provide excellent performance and reliability and its control system is hydraulic.The operator can easily extend the telescopic boom inside the cabin.

Technical Parameters

The Technical Parameter of NL3CX Backhoe Loader
Total operating weight	7600KG
Lengthwidthheight(mm)	7600x2260x3000
Wheel base	2250mm
Axle track	1700mm
Minimum ground clearance	300m
Loading bucket capacity	1.5m³
Digging up capacity	38KN
Loading lift capacity	2800KG
Bucket discharge height	2742mm
Bucket discharge distance	1062mm
Backhoe bucket capacity	0.3m³
Backhoe discharge height	3878mm
Maximum digging depth	4000mm
Optional Digging Depth	5000mm-5500mm（Digging boom telescopic）
Bucket stick revolving radian	180°
Maximum puling force	39KN
Engine
Model	YUCHAI YCD4J22T-115 Turbo
Type	Inline, direct injection, four-stroke, liquid cooled
Rated power	85KW
Optional engine	EURO5 YUCHAI EPA4 CUMMINS
Steering system
Type	Articulated hydraulic steering
Steering angle	36°
Minimum turning radius	3660mm
System pressure	16Mpa
Transmission system
Torque converter	280
Type of gearbox	Fixed shaft power shift transmission
Gear	2gears ahead,2gears reverse
Maximum speed	30KM/H
Drive axle
Drive type	Four-wheel drive
Wheel reduction type	Single stage planetary type
Tire
Tire size	16/17-24
Front wheel pressure	0.22Mpa
Rear wheel pressure	0.22Mpa
Service braking	Air over hydraulic caliper disc brake parking
Emergency brake	Flexible shaft operated disc brake
Hydraulic system
Pressure of Hydraulic System	22Mpa
Packing Quantity（1*40HC）	1Units
Standard equipment of Standard: front shovel with bucket, rear digging with bucket, deluxe interior cab with window breaker/fire extinguisher/LED lights/large reversing camera/front and rear wiper/fan/heat and cold air-conditioning, deluxe adjustable swivel seat, adjustable dashboard, LCD display, front shovel and rear digging with hydraulic pilot operation, Yuchai 85KW engine,16/70-24 tyres, 280 integral gearbox. High-frequency weighted big wheel-side axle, A-shaped outriggers with locking.。
The parameters or configuration are subject to change without notice.

1,Equipped with YUCHAI 75KW engine ,which is low noise,low emission,powerful
and reliable.CUMMINS engine can be optional.
2,NL3CX backhoe loader adopts four wheel drive,power shifting transmission with hydraulic torque converter,hydraulic steering system and joystick pilot control system.

3, Adopt laminated safety glass to have a wider and brighter space
4,The design of wing-spread legs improved excavating stability than other design in rock breaking and deep excavation

5,Inside the cabin is wide and bright,adjusted seat with arm-rest is more comfortable to operator.
6,Front and rear control levers are all hydraulic joystick control system which is more smooth operation.

Delivery & Check

Before the machines delivered to our clients,our workers will check the machines again to make sure everything is good and clean the machines before delivery.
We will also check the spare parts for the machine one by one to make sure everything will go with the machine together.The spare parts stock will help our clients to do the repair and maintenance job easily.

Workshop View

Exhibition

FAQ

Q1. Are you a manufacturer or trader? A: We are a manufacturer of construction machines which specialised in producing and exporting Excavator,Wheel Loader,Bulldozer. Q2. What is your terms of payment? A: T/T 30% as deposit in advance, and 70% to be transferred before b ooking space. Q3. How about your delivery time? A: Generally, it will takes 30-45 days after deposite payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock. Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q5. What is your warranty policy? A: We can supply one year or 1200h warranty for our machines .
