Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
SSS Solar
-
Model Number:
-
SSS-(520-550)-144M-H10
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2297*1134*35mm
-
Product name:
-
SSS Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Frame Color:
-
Color Silvery
-
Glass:
-
3.2mm, Low Iron Tempered Glass
-
Output cable:
-
4.0 Square Millimeter
-
Weight:
-
29kg
-
Certificate:
-
CE TUV
Quick Details
-
Cell size:
-
182mmx91mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.18%
-
Warranty:
-
25 years
-
Brand Name:
-
SSS Solar
-
Model Number:
-
SSS-(520-550)-144M-H10
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2297*1134*35mm
-
Product name:
-
SSS Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Connector:
-
MC4 Compatible Connector
-
Frame Color:
-
Color Silvery
-
Glass:
-
3.2mm, Low Iron Tempered Glass
-
Output cable:
-
4.0 Square Millimeter
-
Weight:
-
29kg
-
Certificate:
-
CE TUV

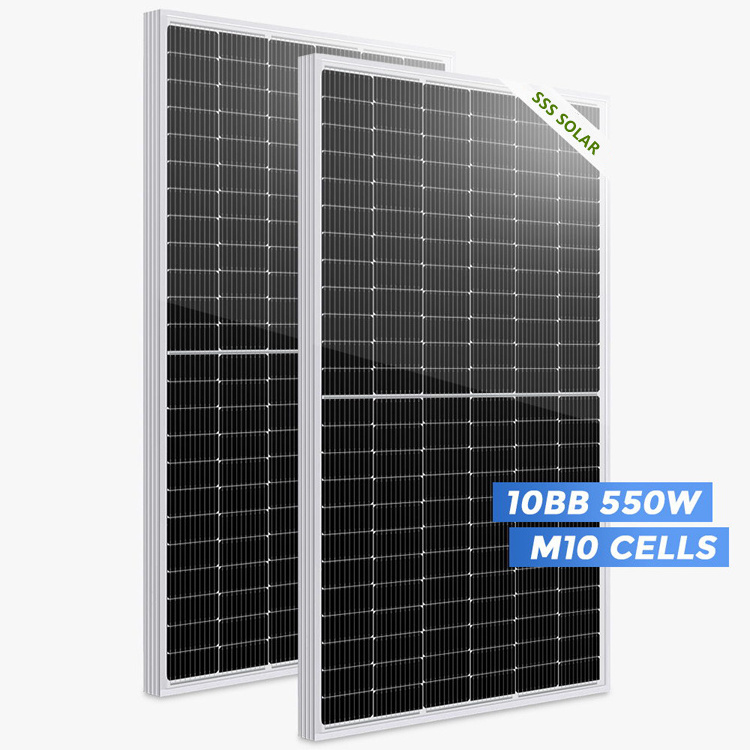

Product Description
The brands of JA ,Longi, Jinko ,Trina ,SSS solar panels above are available, welcome to contact for more details.
Are you finding a reliable manufacturer offering one-stop service and complete solution for solar solar products?
Are you finding an experienced supplier offering you a wide range of solar products and customization service?
Are you finding quality products with CE,TUV ,IEC,ISO,etc?
If so,do not hesitate to send an inquiry.
|
Product Name
|
Solar Panel
|
Type
|
Mono Perc Half Cell
|
||
|
Brand
|
SSS Solar
|
Certification
|
CE/TUV
|
||
|
Model Number
|
SSS(520-550)-144M
|
Warranty
|
25years
|
||
|
Maximum Power
|
530W
|
540W
|
550W
|
||
|
Open-circuit Voltage
|
49.4V
|
49.8V
|
50.2V
|
||
|
Maximum Power Voltage
|
41.6V
|
42V
|
42.4V
|
||
|
Short-circuit Current
|
13.54A
|
13.66A
|
13.78A
|
||
|
Maximum Power Current
|
12.74A
|
12.86A
|
12.97A
|
||
|
Module Efficiency
|
20.51%
|
20.89%
|
21.28%
|
||
|
Power Tolerance
|
0~+5W
|
|
|
||
|
Temperature Coefficient of lsc
|
0.05%/°C
|
|
|
||
|
Temperature Coefficient of Voc
|
-0.31%/°C
|
|
|
||
|
Temperature Coefficient of Pmax
|
-0.35%/°C
|
|
|
||
SSS Solar Panels Could be used for residential solar energy system and commercial solar power station system, combined with inverter, battery to supply the electricity energy for household appliance ,such as refrigerator, oven, air conditioner, electrical car.
Strict QC System
PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
BACKSHEET
.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
JUNCTION BOX
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
EVA
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
Project Cases
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
|
Payment Terms & Delivery Time
|
|
|
|
|
||||
|
Payment Terms |
TT
|
EXW
|
30% T/T in advance
|
70% negotiable
|
||||
|
|
|
FOB/FCA
|
|
|
||||
|
|
|
CNF CFR
|
|
|
||||
|
|
|
CIF
|
|
|
||||
|
|
|
DDU/DAP
|
|
|
||||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
||||
|
|
West union
|
Amount lower than 5000usd
|
|
|
||||
|
Other payment
|
To be negotiable
|
|
|
|
||||
|
Delivery Time
|
5~30 days after receiving the payment
|
|
|
|
||||
