Quick Details
-
Dimension(L*W*H):
-
7.3*3*2.6m
-
Weight:
-
14000 KG
-
Product name:
-
Forestry Machinery Wood Chipper Crusher Machine
-
Feeding size(Width*height):
-
1250-500,1400-500,1400-800mm
-
Capacity:
-
12,15,20,25,30t/h
-
Motor:
-
160kw,200kw,250kw
-
Raw material:
-
Wood waste,biomass,templates,wooden pallets
-
Application::
-
Power plant,wood recycling project,wood factory
-
Processing log diameter:
-
300mm,400mm
-
Feeding conveyor:
-
5meters of chain plate
-
Discharge conveyor:
-
10meters of rubber conveyor
-
Cutting type:
-
Knives or hammers
Quick Details
-
Use:
-
Wood chips process machine
-
Place of Origin:
-
China
-
Brand Name:
-
ZZCHRYSO
-
Dimension(L*W*H):
-
7.3*3*2.6m
-
Weight:
-
14000 KG
-
Product name:
-
Forestry Machinery Wood Chipper Crusher Machine
-
Feeding size(Width*height):
-
1250-500,1400-500,1400-800mm
-
Capacity:
-
12,15,20,25,30t/h
-
Motor:
-
160kw,200kw,250kw
-
Raw material:
-
Wood waste,biomass,templates,wooden pallets
-
Application::
-
Power plant,wood recycling project,wood factory
-
Processing log diameter:
-
300mm,400mm
-
Feeding conveyor:
-
5meters of chain plate
-
Discharge conveyor:
-
10meters of rubber conveyor
-
Cutting type:
-
Knives or hammers
Product Description

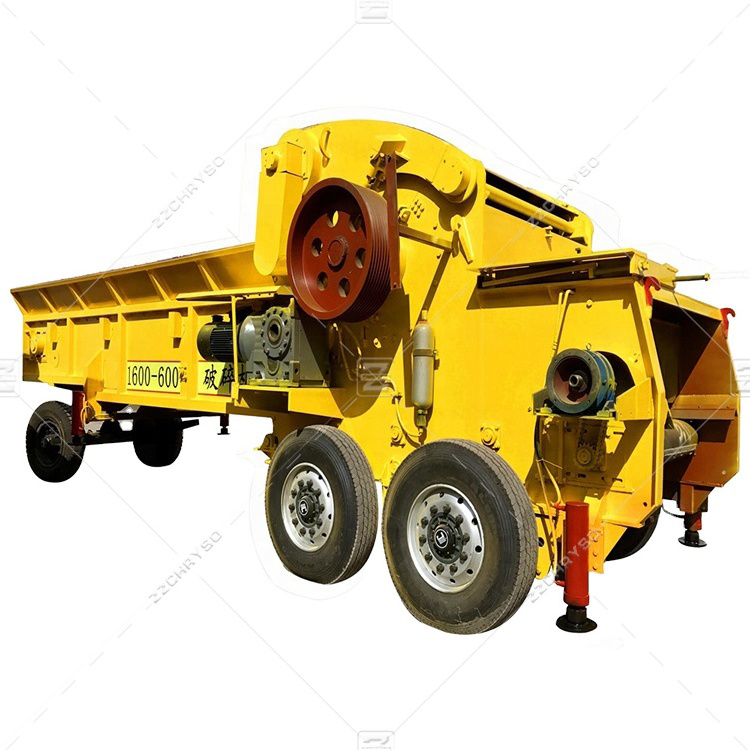

Comprehensive wood chipper shredder is a kind of machine to shred different wood raw materials as below list.
1.All kinds of wood material, such as wood log, slab, batten, log core, tree, building templates, wood pallets, waste wood, wood waste etc
2.All kinds of non-wood materials, such as straw, cotton rod, reed, hay etc.for particle board factory, high density fiberboard,stubble factory, biomass power plant, wood factory, organic fertilizer plant etc.
Chipper Wood Crusher Machine,
Heavy Duty Wood Logs Chipping Machine,
Comprehensive Wood Chipper Machine,
industrial wood chipper shredder,
Comprehensive Multi-functional
Wood Chipper
Machine,
Comprehensive Wood Pallet Crusher,
forestry machinery comprehensive wood pallet crusher machine,
Comprehensive Wood Pallet Crusher Machine,
industrial Wood Pallet Crusher With Magnet,
Wood Template Crusher,
Integrated Wood Crusher
Specification
|
Machine Model
|
CRS-1260/500
|
CRS-1400/500
|
|
Rotor diameter (mm)
|
800
|
800
|
|
Cutter knives/hammers quantity (piece)
|
4 blades rotor,8pcs blades
/24hammers
|
4 blades rotor,8pcs blades
/25hammers
|
|
Input size (mm)
|
1260x500
|
1400x500
|
|
Max material diameter (mm)
|
300
|
300
|
|
Rotor rotation speed (rpm)
|
650
|
760
|
|
Main motor power (kw)
|
160
|
200
|
|
Feeding motor power(kw)
|
7.5+11
|
7.5+11
|
|
Hydraulic motor power(kw)
|
3
|
3
|
|
Input chain conveyor length(m)
|
5
|
6
|
|
Output conveyor length(mm)
|
10
|
10
|
|
Chip size(mm)
|
30-50
|
30-50
|
|
Screen mesh size(mm)
|
Round or hexagon 60mm
|
Round or hexagon 60mm
|
|
Production capacity(ton/hr)
|
12-15
|
15-20
|
|
Machine size(m)
|
8.5*2.8*2.4
|
7.3x3x2.6
|
|
Machine weight(t)
|
14
|
16
|
Feature
YT15 alloy hammer head
Alloy blade
Motor soft start
Feeding inverter control
High manganese steel chain feeding plate
Strong screen mesh
