Quick Details
-
Place of Origin:
-
Guangdong, China
-
Certificate:
-
ENEC25,CE,ETL,CQC,ROHS
-
Rated:
-
2A 250V AC/3A 125VAC
-
Ambient temperature:
-
T85/T55
-
number of cycles:
-
10000
-
Housing material:
-
PC
-
Conductor:
-
Brass
-
Function:
-
ON-OFF
-
color:
-
black
-
Product name:
-
ETL list M200 bathroom pull cord light switch with nylon rope
-
type of switch:
-
Cord-operated
Quick Details
-
Protection Level:
-
IP20
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Certificate:
-
ENEC25,CE,ETL,CQC,ROHS
-
Rated:
-
2A 250V AC/3A 125VAC
-
Ambient temperature:
-
T85/T55
-
number of cycles:
-
10000
-
Housing material:
-
PC
-
Conductor:
-
Brass
-
Function:
-
ON-OFF
-
color:
-
black
-
Product name:
-
ETL list M200 bathroom pull cord light switch with nylon rope
-
type of switch:
-
Cord-operated

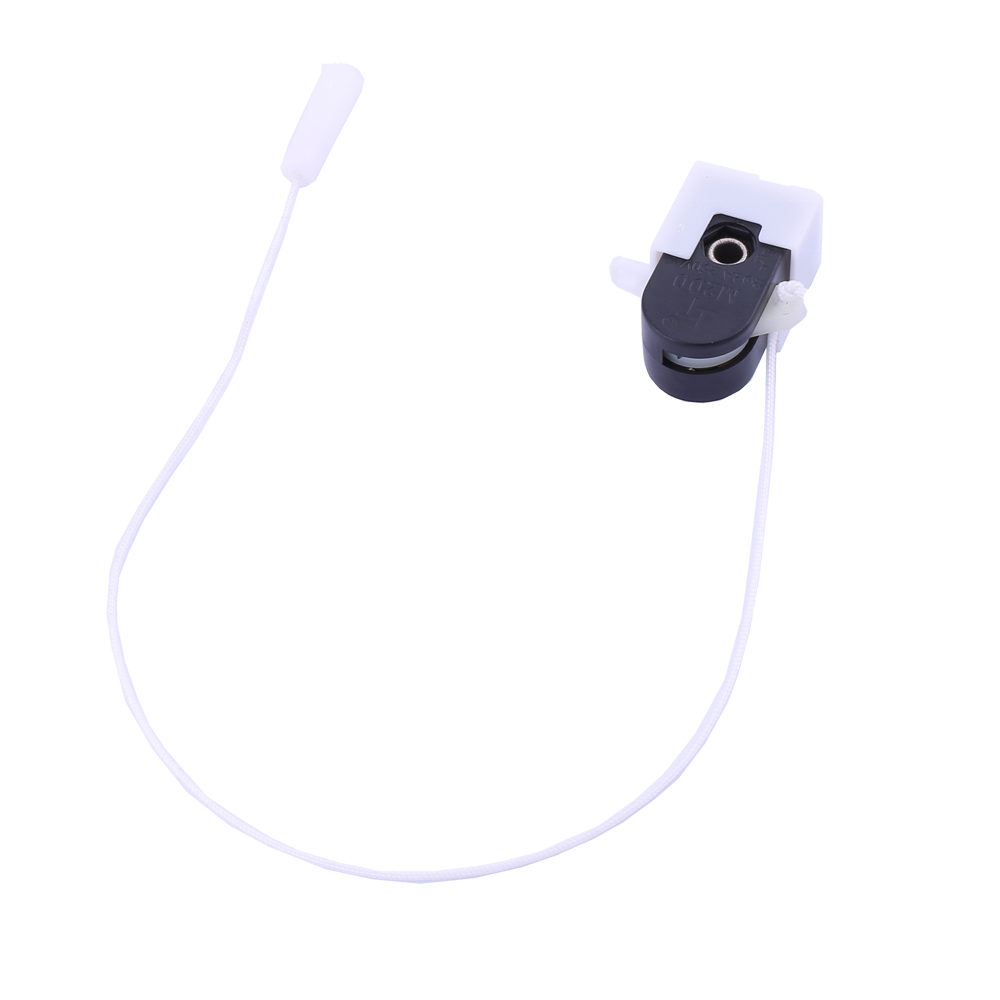

ETL list M200 bathroom pull cord light switch with nylon rope
…♥♥♥ Technical data ♥ ♥ ♥…
|
Total number of connection points |
2 |
|
Total number of potentials |
2 |
|
Color |
Black |
|
Pollution degree |
3 |
|
Rated voltage(V) |
250V |
|
Rated current [A] |
2 [A] |
|
Using |
Single- Pole On- Off Switch |
|
Connection technology |
Screw connection |
|
Strip length |
6-8 mm / 0.24- 0.315 Inch |
|
Wire type |
Single core or Copper clad side |
|
PTI |
250-399 |
|
House material |
PC-1100 |
|
Material of connection parts |
Brass |
|
Housing |
94V-2 grade |
|
Resistant to high voltage |
3750V |
|
Switching Life |
5000-10000 cycles min. Unloading 15-18 cycles per min |
|
Fixing Hole |
3.7mm |
|
Cord length |
Usually 22 cm , can be customized |
|
Cord material |
Nylon |
|
Temperature |
0-85 |
|
Wire cross section |
0.5-1.5 mm 2 |
|
Weight [g] |
5.25 [g] |
|
Width |
15 mm / 0.59 Inch |
|
Height |
27.5 mm / 1.082 Inch |
|
Depth |
11.9mm / 0.469 Inch |
…♥♥♥ Business data ♥ ♥ ♥…
|
Supplier |
Greenway |
|
Item no. |
M200 |
|
HS Code |
|
|
Content |
Switch |
|
Order amount |
1000 |
…♥♥♥ In-king shooting ♥ ♥ ♥…
