1. CE, ISO Certification.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
220V/380V(According to your local voltage)
-
Dimension(L*W*H):
-
3440*2220*3900mm
-
Weight (T):
-
12 T
-
Model Number:
-
Y32-200T
-
Motor Power (kw):
-
18.5 kw
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
CNC
-
Color:
-
Customized
-
Product name:
-
Four Column Hydraulic Press
-
Function:
-
Stamping Metal Product
-
Advantage:
-
Easy Operation Machine
-
Pressing Type:
-
Deep Press
-
Keyword:
-
Hydraulic Embossing Press Machine
-
After Warranty Service:
-
Video technical support
-
Nominal Force (kN):
-
2000
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
700
-
Ejector Force (kN):
-
200
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
220V/380V(According to your local voltage)
-
Dimension(L*W*H):
-
3440*2220*3900mm
-
Weight (T):
-
12 T
-
Model Number:
-
Y32-200T
-
Motor Power (kw):
-
18.5 kw
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
CNC
-
Color:
-
Customized
-
Product name:
-
Four Column Hydraulic Press
-
Function:
-
Stamping Metal Product
-
Advantage:
-
Easy Operation Machine
-
Pressing Type:
-
Deep Press
-
Keyword:
-
Hydraulic Embossing Press Machine
-
After Warranty Service:
-
Video technical support
-
Nominal Force (kN):
-
2000
Welcome to our factory:
Product Description
|

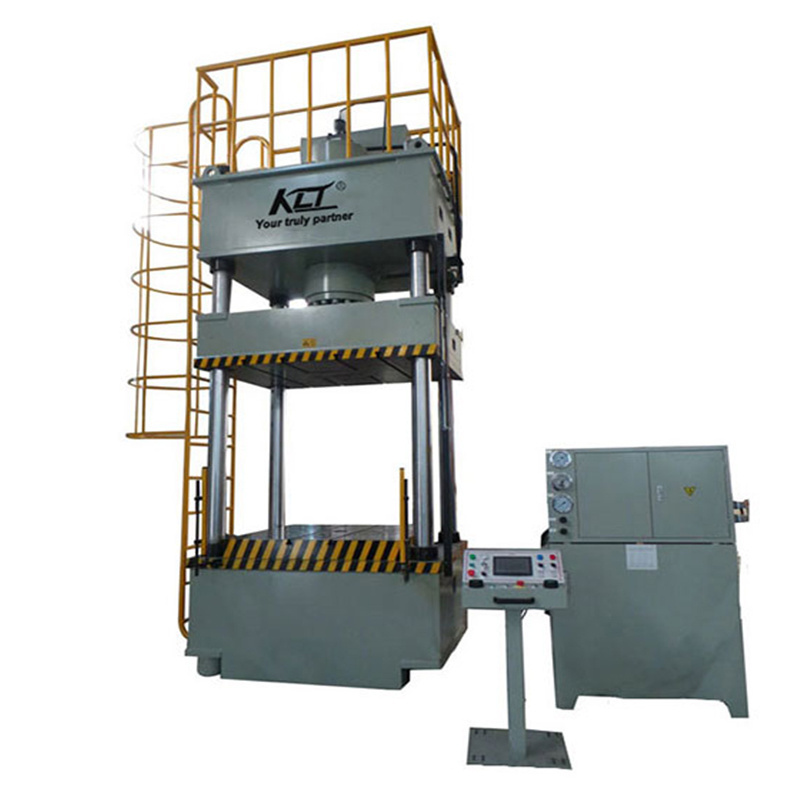

Four-column hydraulic press
|
|
Optional:
|
|
#Optoelectronic protective device
|
|
#Moving table
|
|
#Floating guide-way and rolling bracket for die exchange
|
|
#Blanking buffer device
|
|
#Quick die clamping mechanism
|
|
#Industrial touching screen monitor
|
|
#Stroke,pressure,speed digital control device
|
|
#Water cooler device Displacement sensor
|
|
#Blank holder slide,hydraulic cushion corners respectively regulating device(stretching asymmetric parts)
|
Scope Of Application
Drawing,bending,flanging,cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials.
Size Information
|
Type
|
Unit
|
63T
|
100T
|
160T
|
200T
|
315T
|
630T
|
1000T
|
2000T
|
|
Nominal Pressure
|
KN
|
630
|
1000
|
160
|
2000
|
3150
|
6300
|
10000
|
20000
|
|
Ejecting Force
|
KN
|
100
|
200
|
250
|
400
|
630
|
1000
|
1000
|
2000
|
|
Max.working pressure
|
Mpa
|
25
|
26.2
|
26
|
25
|
25
|
26
|
26
|
27
|
|
Slide stroke
|
mm
|
500
|
500
|
500
|
700
|
800
|
900
|
900
|
1400
|
|
Max.opening height
|
mm
|
700
|
900
|
900
|
1120
|
1250
|
1500
|
1500
|
1600
|
|
Table Size(F.B.)
|
mm
|
500
|
580
|
800
|
900
|
1200
|
1500
|
1600
|
2000
|
|
Table Size(L.R.)
|
mm
|
500
|
710
|
800
|
900
|
1200
|
1500
|
1600
|
2800
|
|
Ejecting stroke
|
mm
|
160
|
200
|
200
|
250
|
300
|
400
|
400
|
450
|
|
Idle stroke
|
mm/s
|
76
|
100
|
100
|
100
|
＞100
|
＞100
|
＞100
|
＞100
|
|
Pressing
|
mm/s
|
10
|
8-15
|
8-15
|
8-15
|
8-15
|
10
|
12
|
10
|
|
Return
|
mm/s
|
60
|
60
|
60
|
70
|
70
|
65
|
80
|
＞75
|
|
Power of motor
|
KW
|
5.5
|
7.5
|
15
|
18.5
|
22
|
45
|
68
|
134
|
|
Total Weight
|
T
|
2.5
|
4
|
7
|
12
|
15
|
30
|
48
|
145
|
