Quick Details
-
Model Number:
-
Ball valve
-
Brand Name:
-
SOLID
-
Standard:
-
ANSI BS DIN JIS
-
Material:
-
Stainless Steel
-
Screwed Type:
-
BSPT, NPT, BSPP etc
-
Working Pressure:
-
PN1.0-32.0MPa
-
Handle Sleeve Color:
-
Depend on Your Required
-
Type:
-
2-way 3-way 1-way, BALL VALVES
-
Size:
-
1/4" ~ 4"
-
Medium:
-
Water Oil Gas
-
Packing:
-
Plywood Case
Quick Details
-
Port Size:
-
1/4" ~ 4"
-
Warranty:
-
1 Years
-
Place of Origin:
-
Shanxi, China
-
Model Number:
-
Ball valve
-
Brand Name:
-
SOLID
-
Standard:
-
ANSI BS DIN JIS
-
Material:
-
Stainless Steel
-
Screwed Type:
-
BSPT, NPT, BSPP etc
-
Working Pressure:
-
PN1.0-32.0MPa
-
Handle Sleeve Color:
-
Depend on Your Required
-
Type:
-
2-way 3-way 1-way, BALL VALVES
-
Size:
-
1/4" ~ 4"
-
Medium:
-
Water Oil Gas
-
Packing:
-
Plywood Case

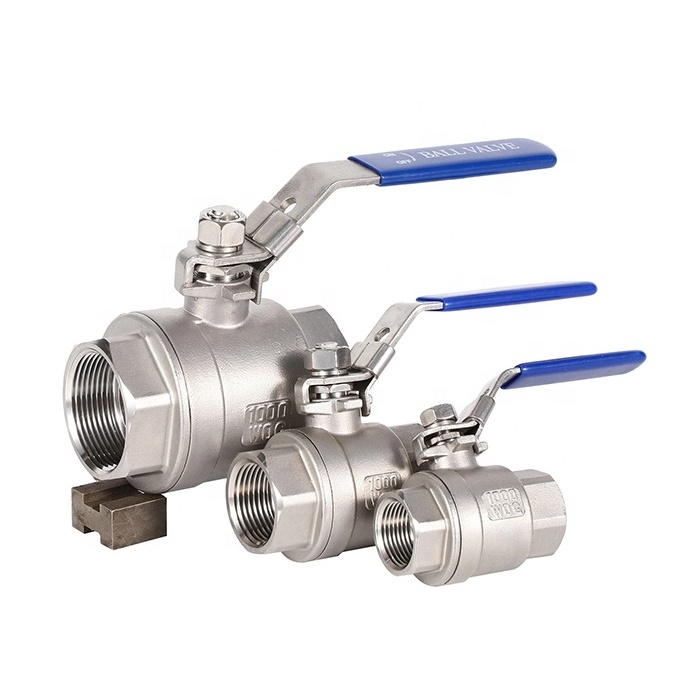

1000wog 2PCS Stainless Steel 304 316L Ball Valve with Threaded End
Why choose us
Packaging & Shipping
Female Threaded (NPT, BSPT) Stainless Steel (SUS304) Ball Valve
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
|
1 |
Cap | CF8/CF8M | 7 | Stem | SS316/SS304 |
| 2 | Gasket | PTFE | 8 | Packing | PTFE |
| 3 | Seat | PTFE | 9 | Gland | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 10 | Handle | SS201 |
| 5 | Body | CF8/CF8M | 11 | Spring Washer | SS304/SS |
| 6 | Thrust Washer | PTFE | 12 | Stem Nut | SS304/SS |
Detailed Images
