Quick Details
-
Ejector Force(kN):
-
61.5 kN
-
Theoretical Shot Volume(cm³):
-
791 cm³
-
Injection Rate (g/s):
-
210 g/s
-
Injection Weight (g):
-
720 g
-
Screw diameter (mm):
-
60 mm
-
Weight (KG):
-
8000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
530 mm
-
Model Number:
-
SZ-2400A
-
Brand Name:
-
SHENZHOU
-
Power (kW):
-
22 kW
-

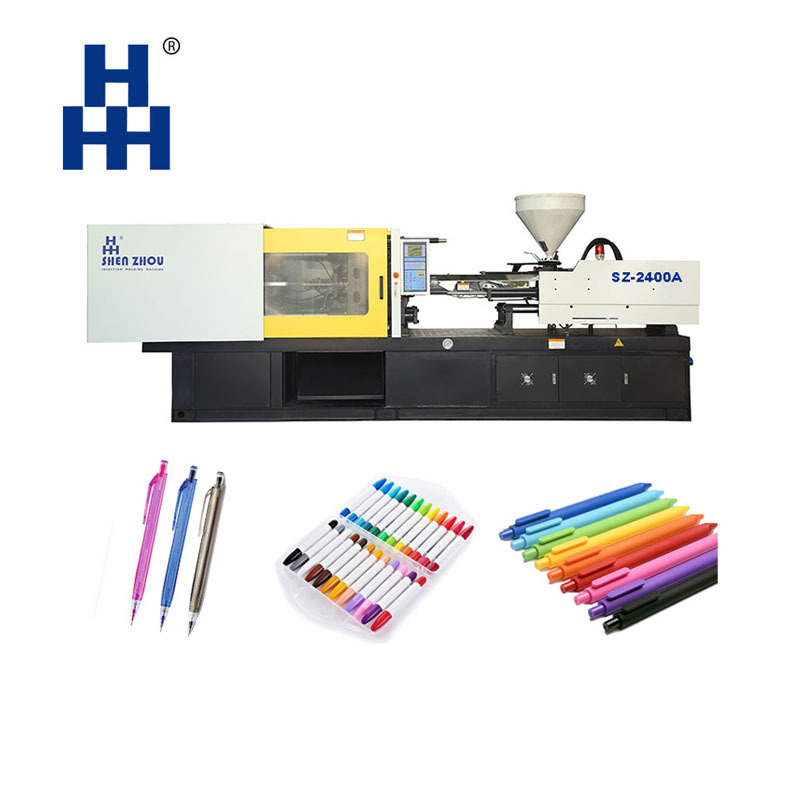

Product name:
-
plastic pen shell making machine for color pen ball pen pencil
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Advantages:
-
Energy saving and high efficiency
-
Keyword:
-
plastic injection moulding pen shell making machine
-
Function:
-
Multifunctional plastic Products Making
-
Oil Tank Capacity:
-
440L
-
Injection pressure:
-
176Mpa
-
Machine dimension(L*W*H):
-
6.2*1.6*2.1m
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
555mm
-
Distance between Tie Bars(Height)(mm):
-
555mm
-
Ejector Stroke(mm):
-
135 mm
-
Ejector Force(kN):
-
61.5 kN
-
Theoretical Shot Volume(cm³):
-
791 cm³
-
Injection Rate (g/s):
-
210 g/s
-
Injection Weight (g):
-
720 g
-
Screw diameter (mm):
-
60 mm
-
Weight (KG):
-
8000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
530 mm
-
Model Number:
-
SZ-2400A
-
Brand Name:
-
SHENZHOU
-
Power (kW):
-
22 kW
-
Product name:
-
plastic pen shell making machine for color pen ball pen pencil
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Advantages:
-
Energy saving and high efficiency
-
Keyword:
-
plastic injection moulding pen shell making machine
-
Function:
-
Multifunctional plastic Products Making
-
Oil Tank Capacity:
-
440L
-
Injection pressure:
-
176Mpa
-
Machine dimension(L*W*H):
-
6.2*1.6*2.1m
Technical Parameter of plastic pen shell making machine
|
Technical Parameter |
||||
|
Item |
Unit |
Parameter |
||
|
INJECTION UNIT |
|
|
||
|
screw diameter |
mm |
55 |
60 |
65 |
|
screw L/D ratio |
L/D |
22.9 |
21 |
19.4 |
|
theoretical shot volume |
cm*3 |
665 |
791 |
929 |
|
shot weight(ps) |
g |
605 |
720 |
845 |
|
injection pressure |
Mpa |
210 |
176 |
150 |
|
theoretical injection rate |
g/s |
176.5 |
210 |
245 |
|
plastic capacity |
g/s |
26.4 |
32.5 |
40 |
|
CLAMPING UNIT |
|
|
||
|
max.clamping force |
KN |
2400 |
||
|
max.opening stroke |
mm |
530 |
||
|
space between tie bars |
mm |
555x555 |
||
|
mould height |
mm |
200-570 |
||
|
max.daylight |
mm |
1100 |
||
|
OTHER |
|
|
||
|
pump motor power |
KW |
22 |
||
|
pump pressure |
Mpa |
16 |
||
|
heating power |
KW |
18.5 |
||
|
size |
m |
6.2x1.6x2.1 |
||
|
net weight |
t |
8 |
||
|
oil tank capacity |
L |
440 |
||
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection
molding machine?
yes,we have established a highly strict quality control department
to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
